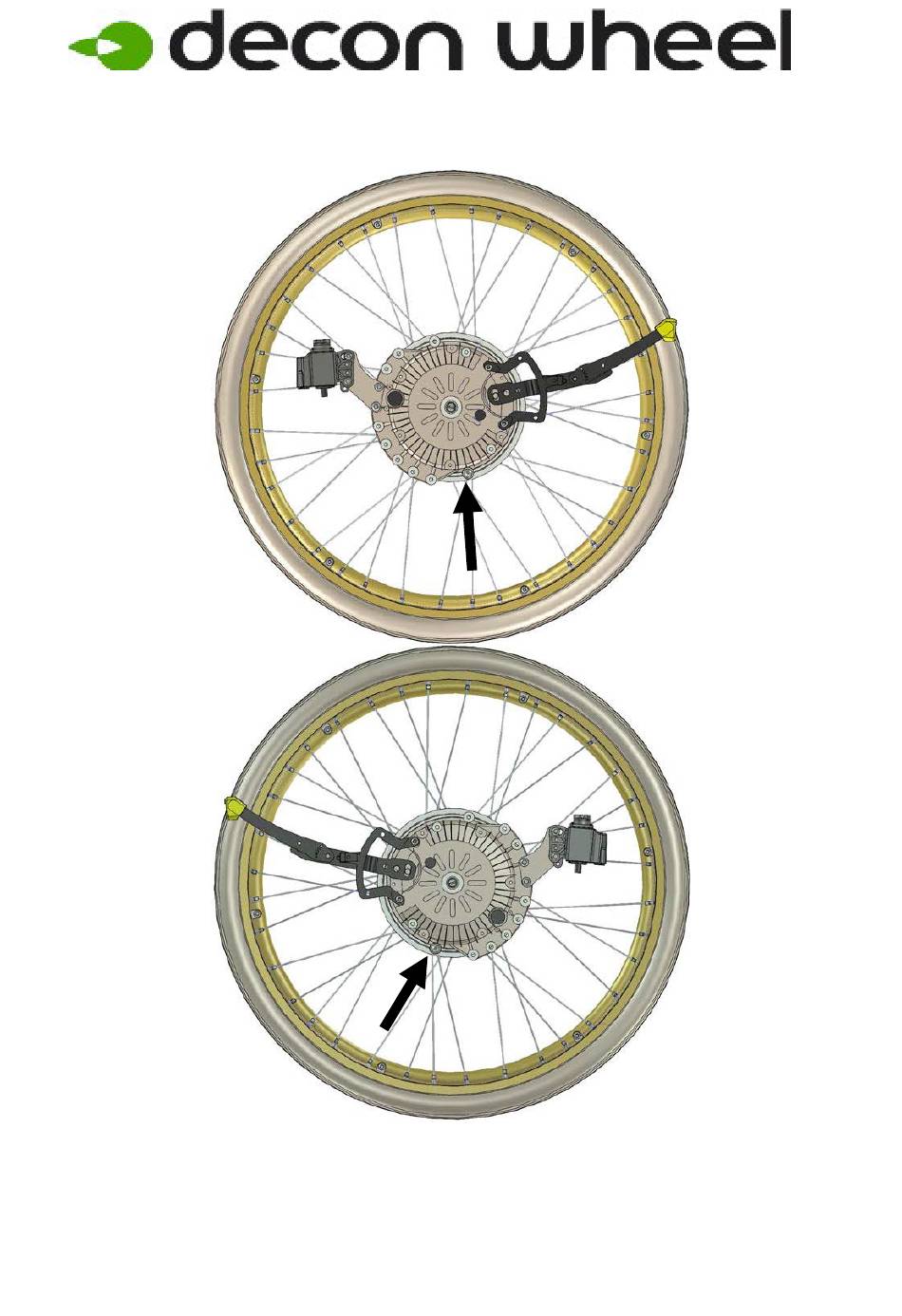

- Page 1 Assembly instructions for Berollka Cobra Sport 2018 - MED3169 1. Remove wheels and hub sleeves on both sides. 2. Check the correct placement for the stop pin on the E-drive unit. 2018-05-30...
- Page 2 3. Assembly the plate (right side) according to picture. Note! Do not forget to take thread lock (Loctite) on NB: 8 Screw No Head M4 x 8. Parts pair mountingset: Item No. Part Number Description MED 2004 Bracket XSM6X55 Screw M6x55 XSM6BR Plain Washer 6,4 100 400 020...
- Page 3 Joysticks Assembly Alt. 1 MED1532 Item No. Part Number Description MED1531 Bracket Cobra Sport 2018- XSM5X12 Screw Round M5 x 12 XOC-48160-C0 Swing Away XSM6ML Nut Self-Locking M6 XSM6X16 Screw Round M6 x 16 Joysticks Assembly Alt. 2 MED1533 Item No. Part Number Description MED1531...
