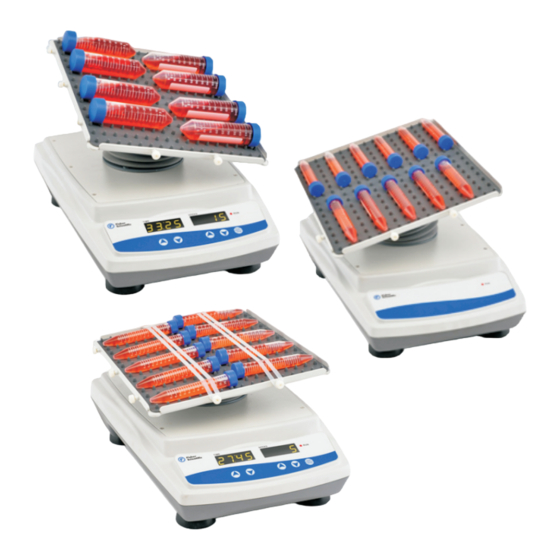

- Page 1 Instruction Manual Nutating Mixer Fixed Speed Nutating Mixer Variable Speed 3D Platform Rotator Catalog Number: 88861041 88861042 88861043 88861044 88861045 88861046...
-
Page 2: Table Of Contents
Specifications Environmental Conditions Material in this manual is for information purposes only. Fisher Scientific committed to a continuing program of product development and improvement, and reserves Safety Instructions the right to change information, such as specifications, appearance, and Loads and Speed dimensions, described in this document without notice. -
Page 3: Section 1 Inspection And Installation
Table -1 Packing List 1. Inspect package and contents upon receipt of the instruments. If the package is severely damaged or if there are any missing pieces, please Cat.No 88861044 88861045 88861046 88861041 88861042 88861043 contact the manufacturer immediately. Nutating... -
Page 4: Connections
Nutating Mixer Fixed Speed Power Cable Dimpled Rubber Tray Screw for Rubber Strip-M4×8(10) Machine House Control Panel Foot(4) Nutating Mixer Variable Speed/3D Platform Rotator Power Cable Power Adaptor Machine Fisher Scientific Fisher Scientific Nutating Mixer/3D Platform Rotator Nutating Mixer/3D Platform Rotator... -
Page 5: Section 2 Overview
415 295 170mm × × Product Name 3D Platform Rotator Overall Dimensions Fixed Speed Variable Speed (16.3×11.6×10.7in.) (16.3 ×11.6×6.7in.) Cat. NO. 88861041 88861042 88861043 88861044 88861045 88861046 Tray Dimensions × 266mm(12.0 × 10.5in.) Speed Range 24rpm 20rpm Package Dimensions × 501 346mm(21.1 ×... -
Page 6: Safety Instructions
Asymmetric loading or unloading may affect the normal operation of the 3. Make sure to use rubber strips to fasten containers onto the tray instrument and may even cause unpredictable damage. Centered Placement Fisher Scientific Nutating Mixer/3D Platform Rotator Fisher Scientific Nutating Mixer/3D Platform Rotator... -
Page 7: Loads And Speed
5. Set Time Buttons: UP/DOWN Arrow buttons are used to increase/ decrease the set time of the instrument. . Set Speed Buttons: UP/DOWN Arrow buttons are used to increase/ decrease the set speed of the instrument. Fisher Scientific Nutating Mixer/3D Platform Rotator Fisher Scientific Nutating Mixer/3D Platform Rotator... -
Page 8: Settings
The time setting is finished after the number shown on the display window has flashed twice. Fisher Scientific Nutating Mixer/3D Platform Rotator Fisher Scientific Nutating Mixer/3D Platform Rotator... -
Page 9: Section 4 Safety Tips And Maintenance
Mixer Fixed Speed (One is for work and the other is for backup). The installation of the fuses is shown in the figure below: Warning: Avoid dripping detergent or water into the instrument during cleaning. Fisher Scientific Nutating Mixer/3D Platform Rotator Fisher Scientific... -
Page 10: Section 5 Troubleshooting
Power adaptor failure Replace power adaptor Warning: Disassembling/Assembling without a qualified professional's Switch off Switch on guidance may cause malfunctioning of the instrument. Electrical Contact Fisher Scientific malfunction Mechanical Contact Fisher Scientific No shaking of the tray malfunction Adjust the weight and... -
Page 11: Section 6 Optional Accessories/Spare Parts
The 24 month warranty Dimpled 298 258mm × period begins from the delivery date of this product. 88861198 Rubber Mat For product quality or performance issues, contact Fisher Scientific Customer Service. 180×7 88861178 Rubber Strips (6pcs/pack） Screw for 4×8...
