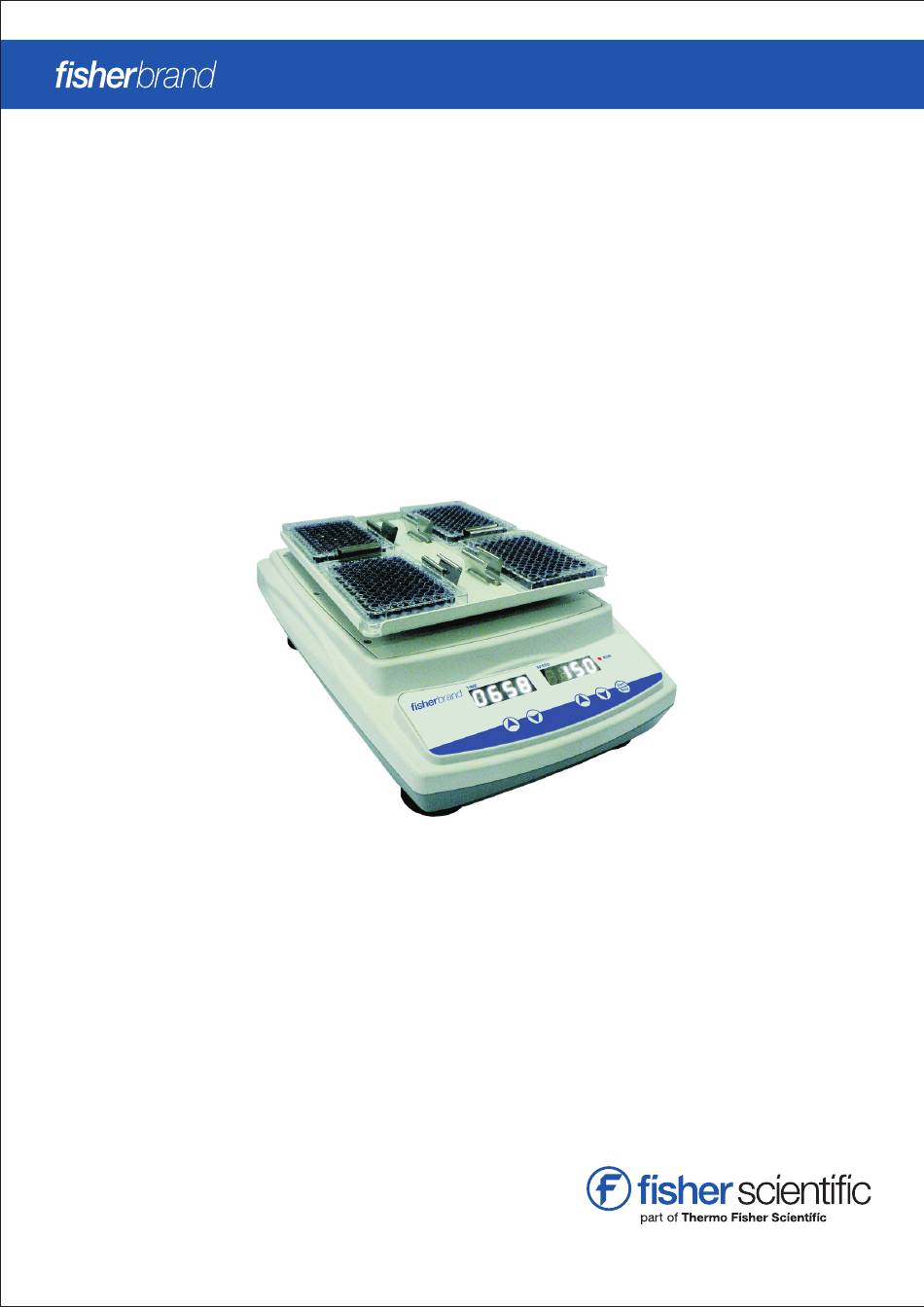

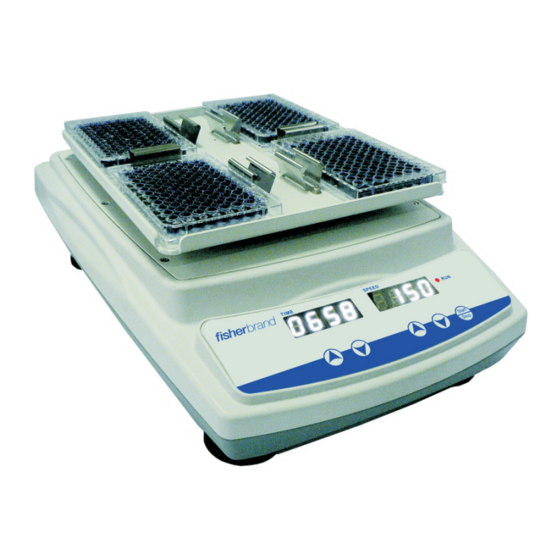

- Page 1 Operations Manual Microplate Shaker V1 12/21/17...
- Page 2 This manual covers the model shown below Voltage Description NA Model EU Model Microplate Shaker US plug 88861023 100~240V Microplate Shaker Intl plug 88861024 15504070 100~240V...
- Page 3 Caution all internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for information purposes only. Fisher Scientific is committed to a continuing program of product development and improvement, and reserves the right to change information, such as specifications, appearance, and dimensions, described in this document without notice.
-
Page 4: Table Of Contents
Contents Section 1 Inspection and Installation Packing List Connections Structure Diagram Section Overview Specifications Environmental Conditions Safety Instructions Capacity and Speed Section 3 Operation Control Panel Installation Settings Installation of Accessories Section 4 Safety Tips and Maintenance Section 5 Troubleshooting Section 6 Optional Accessories/Spare Parts Section 7 Warranty... -
Page 5: Section 1 Inspection And Installation
Make sure to take out vibration and noise. 1.1 Packing List Table -1 Packing List Description Figure NA Cat. No. NA/EU Cat. No. 88861024 88861023 Microplate Shaker /15504070 US plug Intl plug *96-well microplate holder (Assembly on platform General Power Adaptor... - Page 6 2.4 Capacity and Speed Load Type Liquid Capacity Max Speed 96-well Microplate 1/2-well deep 1000rpm 800rpm 96-well Microplate 2/3-well deep 500rpm Fixed Tube Rack 40×Φ14 450rpm Fixed Tube Rack 40×Φ16 Adjustable Tube Rack 40×Φ14 500rpm Adjustable Tube Rack 40×Φ16 400rpm Note: These max.
-
Page 7: Section 2 Overview
Microplate Shaker. Description NA Cat.No. NA/EU Cat.No. WARNING DO NOT use the Microplate 88861024 88861023 Microplate Shaker /15504070 Shaker in a hazardous atmosphere or with US plug Intl plug hazardous materials for which the unit was not designed. Also, the user should be... -
Page 8: Section 3 Operation
Section 3 Operation This chapter covers the control panel and its operation. 3.1 Control Panel ③ ④ ② TIME ① ⑥ ⑤ The front panel of the Microplate Shaker contains all the controls needed to operate the unit. window. When the number shown on the display window starts 1. -
Page 9: Installation Of Accessories
3.4 Installation of Accessories Note: To ensure shaking operation smooth and steady, it may take Loosen the screws of the tray with a cross screwdriver 1minute for the microprocessor control system to accelerate (figure 1), and r eplace the standard tray with platform the tray to the set speed. -
Page 10: Section 4 Safety Tips And Maintenance
Section 4 Safety Tips and Maintenance Safety Tips Clean Spill 1. Use independent power supply. If accidental spillage of liquids caused by mishandling or 2. Check if the local power supply voltage is suitable for use. contained breakage occurs on the surface of the 3. -
Page 11: Section 5 Troubleshooting
Replace power adaptor Adjust the weight and position of load, Over-weighted or unbalanced load decrease rotation speed No shaking of the tray Electrical malfunction Contact Fisher Scientific Mechanical malfunction Contact Fisher Scientific Microplate loose Adjust position of the microplate holder Loud noise... -
Page 12: Section 6 Optional Accessories/Spare Parts
Section 6 Optional Accessories/Spare Parts Description Max. Qty Figure NA Cat. No. EU Cat. No. Dimensions Platform Large 15855911 298 274mm × 96-well microplate holder 54×19×19mm (7pcs/pack) 15865911 6 well platform assembly 88861173 15875911 298 274 21.5mm × × *Fixed Tube Rack 40×Φ14 88861148 15594110 262×112×140mm... -
Page 13: Section 7 Warranty
When used in laboratory conditions and according to these operation instructions and maintenance, this product is warranted for 24 months against defective materials or workmanship. The 24 month warranty period begins from the delivery date of this product. For product quality or performance issues, contact Fisher Scientific Customer Service. - Page 14 North America United States Canada 1-800-766-7000 1-800-234-7437 fishersci.com fishersci.ca Europe Austria: Netherlands: +43(0)800-20 88 40 +31(0)20 4887 70 00 at.fishersci.com nl.fishersci.com Belgium: Norway: +32(0)56 260 260 +47 22 95 59 59 be.fishersci.com fishersci.no Denmark: Portugal: +45 70 27 99 20 +351 21 425 33 50 fishersci.dk pt.fishersci.com...
