Summary of Contents for Fisher Scientific 88861049

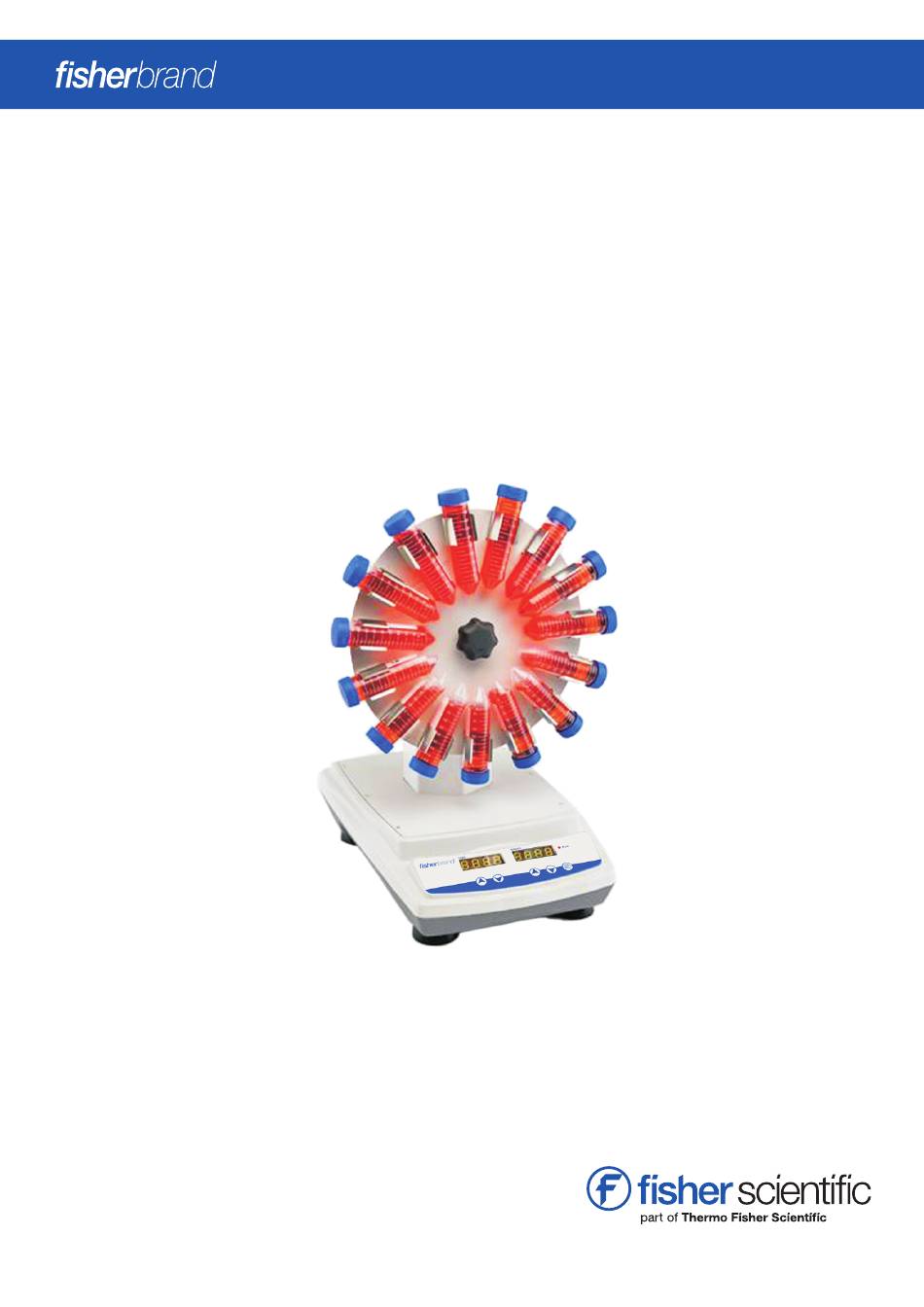

- Page 1 Operations Manual Multi-Purpose Tube Rotator V1 12/05/17...
- Page 2 This manual covers the model shown below Voltage Description NA Model EU Model Multi-Purpose Tube Rotator 5 - 80 rpm, 88861049 100~240V 100 - 240V, US plugs Multi-Purpose Tube Rotator 5 - 80 rpm, 88861050 15524080 100~240V 100 - 240V, EU ANZ(CN) UK plugs...
- Page 3 Caution all internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for information purposes only. Fisher Scientific is committed to a continuing program of product development and improvement, and reserves the right to change information, such as specifications, appearance, and dimensions, described in this document without notice.
-
Page 4: Table Of Contents
Contents Section 1 Inspection and Installation Packing List Connections Structure Diagram Section Overview Specifications Environmental Conditions Safety Instructions Section 3 Operation Control Panel Installation Settings Tray Installation and Tilt Angle Adjustment Section 4 Safety Tips and Maintenance Section 5 Troubleshooting Section 6 Optional Accessories/Spare Parts Section 7 Warranty... -
Page 5: Section 1 Inspection And Installation
Make sure to take out vibration and noise. 1.1 Packing List Table -1 Packing List Description NA Cat. No. NA/EU Cat. No. 88861050 88861049 Multi-Purpose /15524080 US plug Tube Rotator Intl plug 15×50ml Rotator Drum General Power Adaptor... -
Page 6: Section 2 Overview
Multi-Purpose Tube Rotator Description NA Cat. No. NA/EU Cat. No. 88861050 WARNING DO NOT use the Multi-Purpose 88861049 Multi-Purpose /15524080 Tube Rotator in a hazardous atmosphere or US plug Tube Rotator Intl plug with hazardous materials for which the unit was not designed. -
Page 7: Section 3 Operation
Section 3 Operation This chapter covers the control panel and its operation. 3.1 Control Panel ③ ④ ② TIME ① ⑥ ⑤ The front panel of the Multi-Purpose Tube Rotator contains all the controls needed to operate the unit. window. When the number shown on the display window starts 1. -
Page 8: Tray Installation And Tilt Angle Adjustment
Finish Operation After the operation is finished, press the power switch at 3. Pull out bolt and turn 90 degrees and insert the top of the back right side the instrument and put it into the “O” the bolt into the long slot of the hexagon block. Push the state. - Page 9 Single Tray Installation Double Tray Installation 1. Insert the stud on the rotation shaft into the center hole of 1. Insert the stud on the rotation shaft into the center hole the tray and make sure the tray is firmly touching the fixing of the tray and make sure the tray is firmly touching the block of the rotary plate, as shown in figure 1.
-
Page 10: Section 4 Safety Tips And Maintenance
Section 4 Safety Tips and Maintenance Safety Tips Maintenance 1. Use independent power supply. a. This instrument uses a high-accuracy motor. It is 2. Check if the local power supply voltage is suitable for use. maintenance free and has a long service time, high 3. -
Page 11: Section 5 Troubleshooting
Replace power adaptor Adjust the weight and position of load, Over-weighted or unbalanced load decrease rotation speed No shaking of the tray Electrical malfunction Contact Fisher Scientific Mechanical malfunction Contact Fisher Scientific Component loose Fasten screws Rotary plate loose Loud noise... -
Page 12: Section 6 Optional Accessories/Spare Parts
Section 6 Optional Accessories/Spare Parts Description Max. Qty Figure NA Cat. No. EU Cat. No. Dimensions 88861121 15584130 Φ290×24mm 50x1.5/2.0ml rotator drum 30x15ml rotator drum 88861122 15594130 Φ290×31mm Φ290×48mm 15x5 ml rotator drum 88861123 15574090 10x10/15ml + 20x5/7ml drum 88861124 15584090 Φ290×31mm 64x14mm rotator drum... -
Page 13: Section 7 Warranty
When used in laboratory conditions and according to these operation instructions and maintenance, this product is warranted for 24 months against defective materials or workmanship. The 24 month warranty period begins from the delivery date of this product. For product quality or performance issues, contact Fisher Scientific Customer Service. - Page 14 North America United States Canada 1-800-766-7000 1-800-234-7437 fishersci.com fishersci.ca Europe Austria: Netherlands: +43(0)800-20 88 40 +31(0)20 4887 70 00 at.fishersci.com nl.fishersci.com Belgium: Norway: +32(0)56 260 260 +47 22 95 59 59 be.fishersci.com fishersci.no Denmark: Portugal: +45 70 27 99 20 +351 21 425 33 50 fishersci.dk pt.fishersci.com...
