district
Section:
Description:

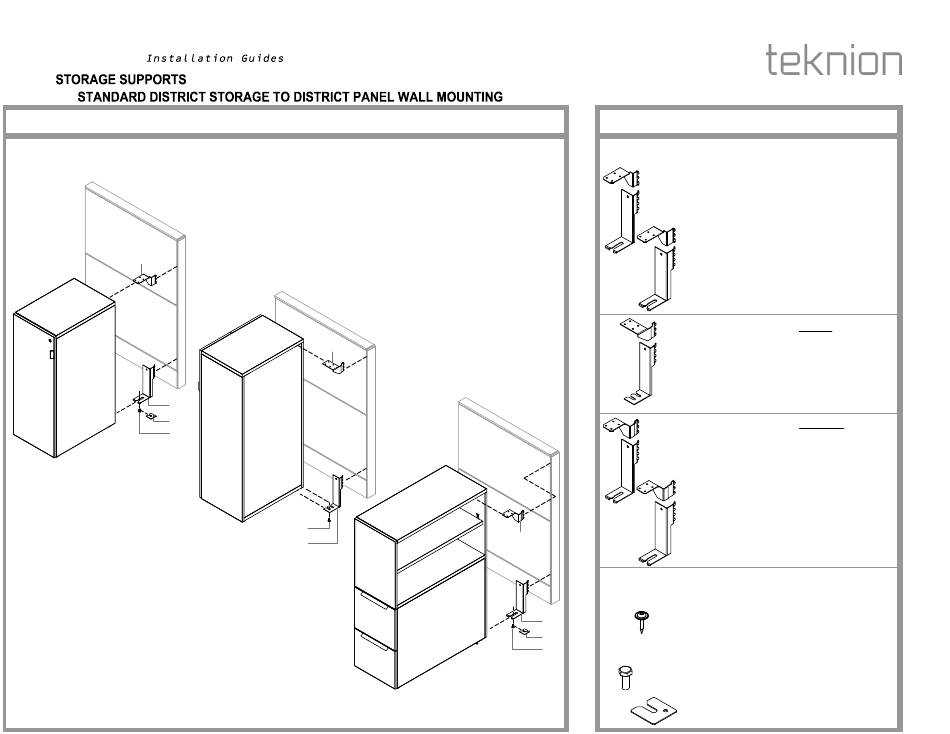

Standard District Storage to District Panel Bracket (UWSPBS)
Parallel Mounting
(p. 2 - 4)
A, G
B
I
H
NOTE:
Included in this Guide - "Standard Storage to
Panel Attachment Options Chart", see p. 7-8.
For Customer Support please contact
product.support@teknion.com
Perpendicular BACK
Mounting (p. 2, 3, 5)
C, G
Perpendicular FRONT
Mounting (p. 2, 3, 6)
H
D
Part and Product Identification
PARALLEL
(UWSPBSPN R/L - 3/8" gap) OR
(UWSPBSPW R/L - 1" gap)
A - Top Bracket (RH shown)
OR
B - Bottom Bracket (RH shown)
PERPENDICULAR BACK
(UWSPBSBN R/L)
C - Top Bracket (RH shown)
D - Bottom Bracket (RH shown)
PERPENDICULAR FRONT
(UWSPBSFN R/L - 3/8" gap) OR
(UWSPBSFW R/L - 1" gap)
E - Top Bracket (RH shown)
OR
F - Bottom Bracket (RH shown)
E, G
HARDWARE included with each product:
Top Bracket Hardware:
G - #10 x 7/8", Quad, Pan Washer Hd
F
I
H
Bottom Bracket Hardware:
H - 5/16"-18 3/4" Hex Hd, Cad Plated
I - Bottom Anti-dislodgement Plate
Date:
Nov 2015
Page No:
1 of 8
DIS_703
Rev. No: 2
(A15-8933 R/L)x1 with 3/8" gap, OR
(A15-8796 R/L)x1 with 1" gap
(A15-8934 R/L)x1 with 3/8" gap , OR
(A15-8794 R/L)x1 with 1" gap
(A15-8799 R/L)x1
(A15-8935 R/L)x1
(A15-8797 R/L)x1 with 3/8" gap, OR
(A15-8798 R/L)x1 with 1" gap
**same as Item B above
Screw (E07-0077)x4
Bolt (E03-0125)x1
**Parallel and Perpendicular Front Only
(A15-8795)x1
Advertisement
Table of Contents
Related Manuals for Teknion UWSPBS
Summary of Contents for Teknion UWSPBS
- Page 1 Nov 2015 Page No: 1 of 8 Description: DIS_703 Rev. No: 2 Standard District Storage to District Panel Bracket (UWSPBS) Part and Product Identification PARALLEL Parallel Mounting (UWSPBSPN R/L - 3/8" gap) OR (p. 2 - 4) (UWSPBSPW R/L - 1" gap) A - Top Bracket (RH shown) (A15-8933 R/L)x1 with 3/8"...
- Page 2 district Section: Date: Nov 2015 Page No: 2 of 8 Description: DIS_703 BOTTOM BRACKETS - OVERVIEW TOP BRACKETS - OVERVIEW 9th Slot Slot from bottom Thin Black Cut- Tape outs Cut-out Back View Perpendicular Back Parallel or Perpendicular Front Parallel or Perpendicular Back Mounting Mounting Mounting...
- Page 3 district Section: Date: Nov 2015 Page No: 3 of 8 Description: DIS_703 ATTENTION TO DO FIRST RH shown LH opposite STEP 3: The Top and Bottom Brackets for different mounting options look very similar. Study the furniture layout drawings carefully and ensure to pick up the proper Brackets for installation.
- Page 4 district Section: Date: Nov 2015 Page No: 4 of 8 Description: DIS_703 INSTALL BRACKETS AND POSITION CABINET SECURE TOP BRACKET STEP 7: Level and adjust cabinet position if necessary. Secure cabinet to Top Bracket with wood screws. SECURE BOTTOM BRACKET STEP 6: (1) Follow STEPs 1 &...
- Page 5 district Section: Date: DIS_703 Page No: Description: DIS_703 INSTALL BRACKETS AND POSITION CABINET SECURE TOP BRACKET STEP 7: Level and adjust cabinet position if necessary. Secure cabinet to Top Bracket with wood screws. SECURE BOTTOM BARCKET STEP 6: (1) Follow STEPs 1 & 5 to install Bottom Bracket and Hex Bolt. (2) Bring STEP 8: Tighten Hex Bolt to secure the assembly.
- Page 6 district Section: Date: Page No: Description: DIS_703 CONNECT STORAGE UNIT TO BOTTOM BRACKET ATTACH TOP BRACKET STEP 6: Follow STEPs 1 & 5 to install Bottom Bracket and Hex Bolt. Slide storage unit STEP 7: Posistion flange of Bracket inside the cabinet and engage hooks into the edge slots of towards Panel until the Leveler and the Bolt are fitted into the cut-out of the Bottom Bracket.
- Page 7 district Section: Date: Nov 2015 Page No: 7 of 8 Description: DIS_703 Rev. No: 2 Parallel Perpendicular Perpendicular Parallel Perpendicular Perpendicular Standard Storage Units Standard Storage Units UNSPBSP Back UNSPBSB Front UNSPBSF UNSPBSP Back UNSPBSB Front UNSPBSF...
- Page 8 district Section: Date: Nov 2015 Page No: 8 of 8 Description: DIS_703 Rev. No: 2 Parallel Perpendicular Perpendicular NOTES Standard Storage Units UNSPBSP Back UNSPBSB Front UNSPBSF...
