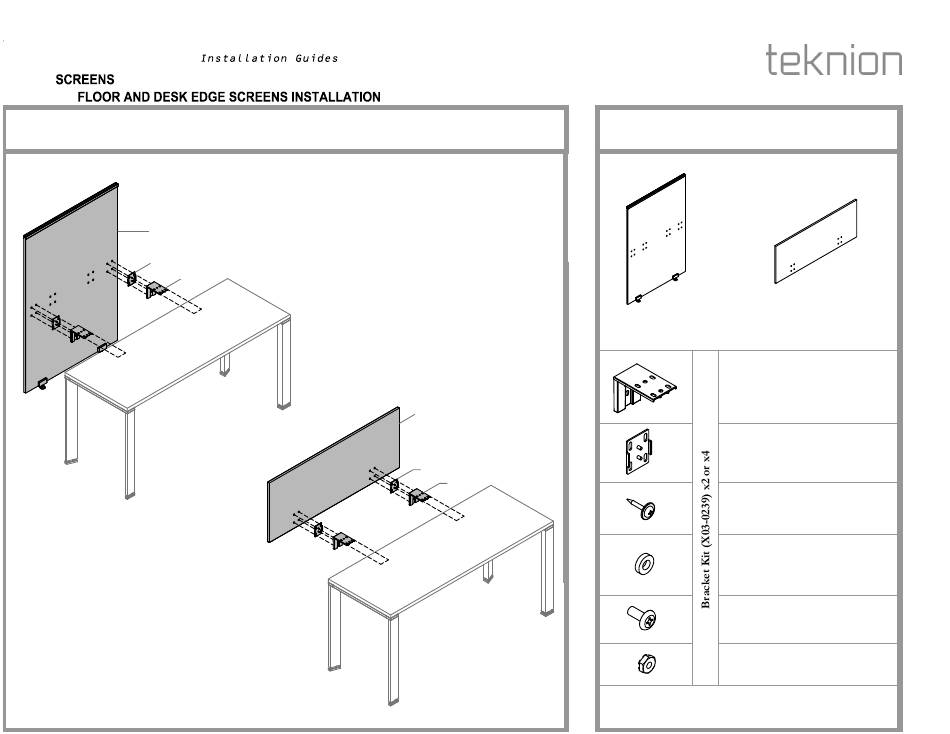

Floor Screen (UNSF) & Desk Edge Screen (UNSDE)
A1
C2
UNSF
NOTE: Floor Screen(UNSF) instruction is shown as
an example. Brakcet kit(x03-0239) installing method
also applies for Desk Edge Screen(UNSDE)
C1
B1
C2
C1
UNSDE
Date:
DIS_301a
Part and Product Identification
A1 - Floor Screen Sub-Assembly
B1 - Desk Edge Screen
(N09-1626-X) x1
C1 - Desk Edge Screen Bracket
(A25-0449) x1
C2 - Desk Edge Screen Mounting
Plate Sub Assembly
(N09-4959) x1
C3 - #10 x 0.875" Screw. Quad
Pan Washer
(E07-0077) x6
C4 -1/4ID x 1/8OD A 1/8THK
SBR Flat Washer
BLK(SPA315040)
(E03-0582) x4
C5 - 1/4-20x5/8" Machine Screw,
Quad. Truss HD
(E01-0098) x4
C6 - 1/4-20 UNC. Nut Hex Keps
Zinc
(E03-0059) x2
For Customer Support please contact
product.support@teknion.com
May 2016
Page No:
1 of 5
Rev. No: 1
(C05-2703-X) x1
Advertisement
Table of Contents
Related Manuals for Teknion UNSF
Summary of Contents for Teknion UNSF
- Page 1 May 2016 Page No: 1 of 5 Description: DIS_301a Rev. No: 1 Floor Screen (UNSF) & Desk Edge Screen (UNSDE) Part and Product Identification A1 - Floor Screen Sub-Assembly B1 - Desk Edge Screen (N09-1626-X) x1 (C05-2703-X) x1 C1 - Desk Edge Screen Bracket...
- Page 2 district Section: Date: May 2016 Page No: 2 of 5 Description: DIS_301a INSTALL MOUNTING PLATES ON SCREEN INTALL BRACKETS ON MOUNTING PLATES NOTE: If two or more screens are installed side by side, the height is adjustable to align the screens. STEP 1: Place mounting plate align with four holes.
- Page 3 district Section: Date: May 2016 Page No: 3 of 5 Description: DIS_301a ALIGN SCREEN NOTE: 1) Make sure the edge of the Screen is flush with the end of Worksurface. 2) Ensure 1" gap between the edge of Screen and Worksurface. 1"...
- Page 4 district district Section: Date: May 2016 Page No: 4 of 5 Description: DIS_301a FASTEN TO UNDERSIDE OF WORKSURFACE STEP 4: Fasten Brackets under the work surface with screws provided.
- Page 5 district district Section: Date: May 2016 Page No: 5 of 5 Description: DIS_301a LEVEL SCREEN NOTE: If two or more screens are installed side by side, the height is adjustable to align the screens. After being fully installed. * * If leveling is an issue for the Floor Screen, replace existing levelers with...
