Teknion Beginning Work Table Installation Manual

Middle, finish with straight and angled l

Advertisement

Quick Links

interpret
Installation Guides
Section:
TABLES
Description:
WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS

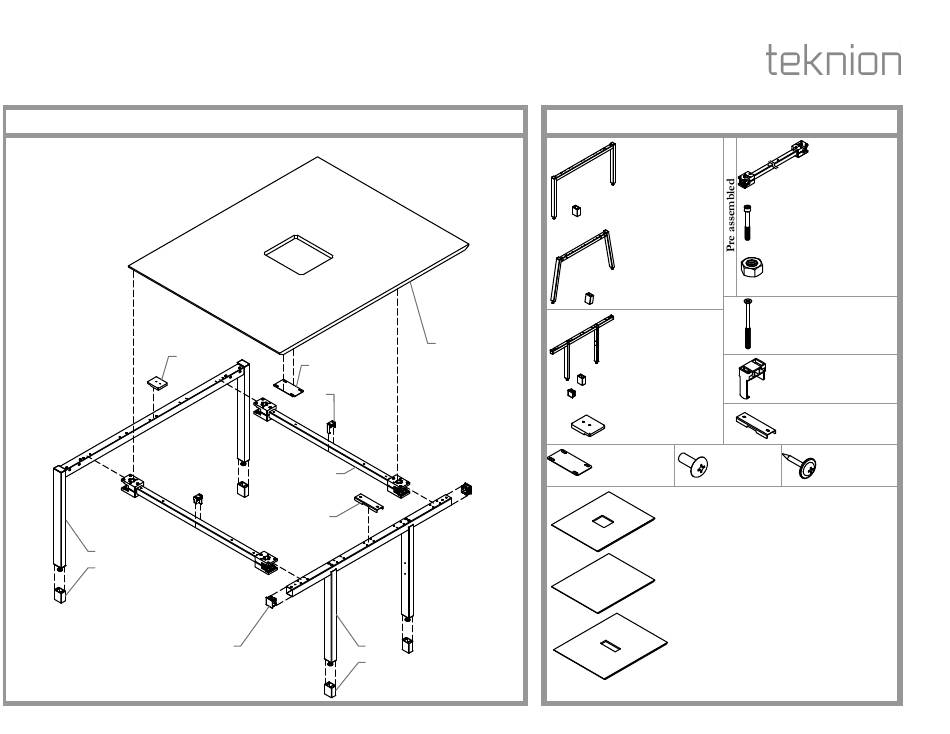

Beginning Work Table (WWTWB)
Beginning Table
Worksurface with cut-out shown
as example
AG
AA1
AA2
AI
AF
AD1
AH
AC3
AC1
AC2
AL1
AI - Flush Plate
(A15-6948) x1
Date:
Jan 2018
INT_504a
Part and Product Identification
AA1 - End Leg
AD1 - Transverse
Assy Straight
(N02-1934) x2
AA2 - Leveler Cover
AD2 - 5/16-18x2.5 Soc.
(A23-3670) x4
or
AB1 - End Leg Assy
Angled
AD3 - 5/16-18 Hex
(N02-1996) x2
AB2 - Leveler Cover
(A23-3822) x4
AE - 1/4-20 x 3 -1/2
AC1 - Mid Gable
Assembly
(N02-2053) x1
AC2 - Leveler Cover
(A23-3670) x2
AF - Front Standoff
AC3 - End Cap
(B02-0389) x3
AH - Mid Gable
AG - Center Spacer
(A16-1652) x1
AJ - 1/4-20x5/8
AK - #10 x .875" LG.
Mach. Screw
(E01-0098) x4
AL1 - Worksurface for Beginning
Table with Cut-out
(C05-7490) x 1
OR
AL2 - Worksurface for Beginning
Table without Cut-out
(C05-7356) x 1
OR
AL3 - Worksurface for Beginning
Table with CALA Cut-out
(C07-2519) x 1
Page No:
1 of 19
Rev. No: 1
Beam Sub-Assy
(N02-1935) x4
Head Cap Screw
(E01-0756) x
Nut 1/2 A/F
.265 Thick
(E01-0755) x16
Flat Hd, Mach Sc.
(E01-0771) x4
(B02-0381)x2 or 4
Center Spacer
(A16-1652) x1
Quad Pan Screw
(E07-0077) x4

Advertisement

loading
Need help?

Need help?

Do you have a question about the Beginning Work Table and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknion Beginning Work Table

  • Page 1 Page No: 1 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a Rev. No: 1 Beginning Work Table (WWTWB) Part and Product Identification AA1 - End Leg Beginning Table AD1 - Transverse Assy Straight Worksurface with cut-out shown...
  • Page 2 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 2 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a Rev. No: 1 Middle Work Table (WWTWM) Part and Product Identification BA1 - Mid Gable Middle Table Assembly BB1 - Transverse Beam...
  • Page 3 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 3 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a Rev. No: 1 Finish Work Table (WWTWF) Part and Product Identification CA1 - End Leg Assy Finish Table Straight CC1 - Transverse Beam...
  • Page 4 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 4 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a REMOVE MOUNTING NUTS AND SCREWS Do Not Remove End Gable Connection Mid Gable Do Not Connection End Gable Remove...
  • Page 5 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 5 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a DETAIL END GABLE CONNECTION MID GABLE CONNECTION...
  • Page 6 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 6 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a CONNECT GABLE AND BEAMS SECURE WITH FASTENERS (Side View) End Gable DO NOT Connection TIGHTEN Mid Gable Connection STEP 2: Bring End Gable, Mid Gable and Transverse Beam Assembly together.
  • Page 7 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 7 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a REMOVE MOUNTING NUTS, SCREWS AND CLAMP FOR MID GABLE INSTALLATION Do Not Remove End Gable Connection.
  • Page 8 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 8 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a DETAIL BEFORE CLAMP REMOVAL AFTER CLAMP REMOVAL Refer to highlighted hole to fasten Clamps for Mid Gable Position.
  • Page 9 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 9 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a CONNECT MID GABLE AND BEAMS SECURE WITH FASTENERS Mid Gable Connection Mid Gable Connection STEP 5: Bring Mid Gables and Transverse Beam Assembly together. Line up the set of holes STEP 6: Fasten together using Socket Cap Screw and Nuts.
  • Page 10 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 10 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a REMOVE MOUNTING NUTS AND SCREWS Do Not Remove Mid Gable Connection Do Not Gable Connection Mid Gable Remove Connection...
  • Page 11 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 11 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a DETAIL MIDDLE GABLE CONNECTION END GABLE CONNECTION...
  • Page 12 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 12 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a CONNECT MID GABLE AND BEAMS SECURE WITH FASTENERS Mid Gable Connection Mid Gable Connection End Gable Connection End Gable Connection...
  • Page 13 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 13 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a LEVEL ASSEMBLY AND INSTALL LEVELER COVERS Use string to align holes STEP 10: Level and square the whole assembly. Tighten Screws and Nuts. Carefully lift the frame and install Leveler Covers.
  • Page 14 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 14 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a INSTALL SPACERS Beginning Worksurface Middle Worksurface Finnish Worksurface STEP 11: Install Spacers to underside of Worksurface.
  • Page 15 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 15 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a LOWER BEGINNING WORKSURFACE TO BEGINNING FRAME Pilot hole to (Beginning Worksurface) be used for End Gable Connection Pilot hole to be used for Mid...
  • Page 16 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 16 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a LOWER MIDDLE WORKSURFACE TO MIDDLE FRAME (Middle Worksurface) Underside View Pilot hole to be used for Mid Gable Connection Mid Gabl e...
  • Page 17 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 17 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a LOWER FINISH WORKSURFACE TO FINISH FRAME Pilot hole to be used for End Gable Connection (Finish Worksurface) Pilot hole to be used for Mid...
  • Page 18 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 18 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a INSTALL FLUSH PLATE Underside View STEP 15: Install Flush Plate to underside of Worksurface.
  • Page 19 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 19 of 19 Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS INT_504a INSERT END CAPS Underside View STEP 16: Insert End Caps making sure "doors" swing sidewise.
