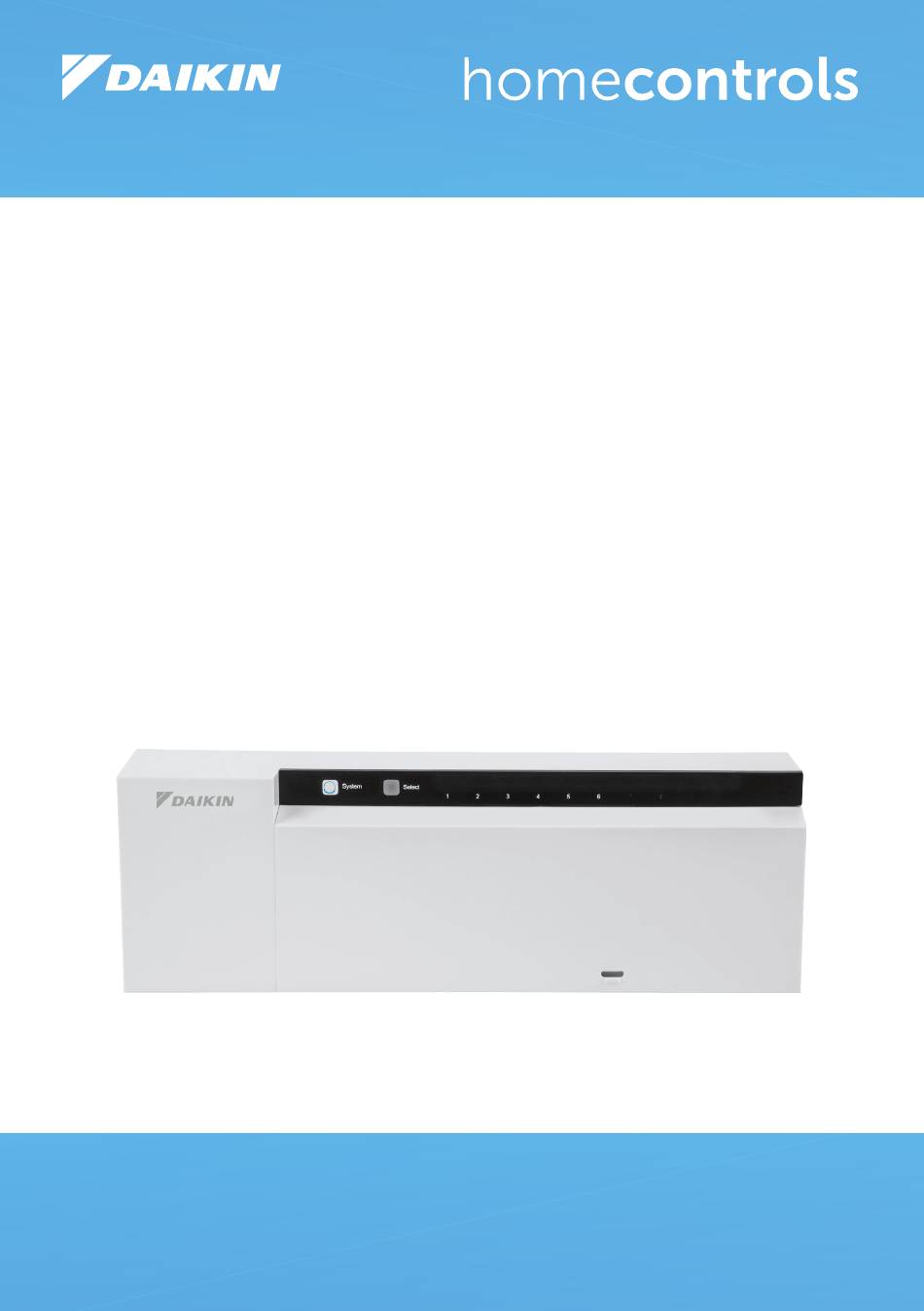

- Page 1 Installation and operation manual Daikin Home Controls Floor Heating Controller – 6 zones EKRUFHT61V3...
- Page 6 Package contents Quantity Description Daikin Home Controls Floor Heating Controller – 6 zones Screws 4.0 x 40 mm Plugs 6 mm Installation and operation manual Documentation © 2022 Daikin Europe N.V., Belgium All rights reserved. This manual may not be reproduced in any format, either in whole or in part, nor may it be duplicated or edited by electronic, mechanical or chemical means, without the written consent of the publisher.
-
Page 7: Table Of Contents
Table of contents Information about this manual ............8 Hazard information ................8 Daikin Home Controls ..............11 Function and accessory overview ..........12 Mounting ..................13 Screw mounting ................. 13 DIN rail mounting ............... 14 Start-up ................... 14 Installation instructions .............. 14 Installation .................. -
Page 8: Information About This Manual
Information about this manual Information about this manual Read this manual carefully before beginning operation with your Daikin Home Controls (DHC) accessories. Keep the manual so you can refer to it at a later date if you need to. If you hand over the accessory to other persons for use, hand over this manual as well. - Page 9 Hazard information The accessory is not a toy; do not allow children to play with it. Do not leave packaging material lying around. Plastic films/bags, pieces of polystyrene, etc. can be dangerous in the hands of a child. We do not assume any liability for damage to property or personal injury caused by improper use or the failure to observe the hazard information.
- Page 10 Hazard information Take the technical data (in particular the maximum permissible effective installed load of the accessory and the type of load to be connected) into account before connecting a load! All load data relates to ohmic loads. Do not exceed the capacity specified for the accessory. The accessory has not been designed to support safety disconnection. Exceeding the maximum capacity could lead to the destruction of the accessory, fires or electric shocks.
-
Page 11: Daikin Home Controls
Daikin Home Controls Daikin Home Controls This accessory is part of the DHC ecosystem and communicates with a dedicated wireless connection. All accessories of the ecosystem can be configured comfortably and individually via the ONECTA app. The available functions provided by the DHC ecosystem in combination with other accessories are described in the DHC Application Guide. -
Page 12: Function And Accessory Overview

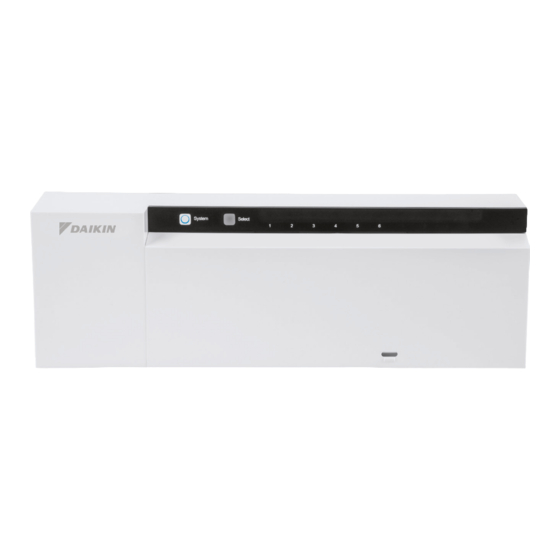

Function and accessory overview Function and accessory overview The DHC Floor Heating Controller offers comfortable and demand-based room-by-room control of your floor heating system, according to your personal needs, via the ONECTA app in combination with a DHC Access Point. For further information, see the DHC Application Guide. The Floor Heating Controller can be used in combination with floor heating, radiators or Fan Coil Units that are connected to a collector. -
Page 13: Mounting
Mounting Cable bushings (see figure 2): (J) Cable bushing 1 (K) Cable bushing 2 (L) Cable bushing 3 Mounting You can flexibly mount the DHC Floor Heating Controller to a wall, using the supplied screws and plugs, or to a DIN rail. Screw mounting To mount the DHC Floor Heating Controller using screws, proceed as follows: Select a suitable mounting location close to your heating system. -
Page 14: Din Rail Mounting
Start-up DIN rail mounting To mount the DHC Floor Heating Controller to a DIN rail, proceed as follows: Place the DHC Floor Heating Controller onto the DIN rail (see figure 4). Press the spring latches (E) upwards (see figure 4). Make sure that the spring latches are completely latched and that the accessory is seated solidly on the rail. - Page 15 Start-up neighbouring live parts; • Select suitable tools, measuring equipment and, if necessary, personal safety equipment; • Evaluation of measuring results; • Selection of electrical installation material for safeguarding shut-off conditions; • IP protection types; • Installation of electrical installation material; •...
-
Page 16: Installation
Start-up Permitted cable cross sections for the cable bushings of the DHC Floor Heating Controller: Cable bushings Cable cross section [mm 1 (J) (see figure 2) > 5.2 2 (K) (see figure 2) > 8.2 3 (L) (see figure 2) >... -
Page 17: Behaviour After Switching On The Mains Voltage
Start-up Connect the phase conductor to connecting terminal L (G). Plug in the connecting cable of the valve actuators in your heating circuits to the connecting terminals (H-I). Connect a heat pump to the connecting terminal (H). Make sure that all connecting cables are fixed properly to the cable bushings before closing the cover. Close the cover again by pushing the latches of the cover into the openings provided and press it down. -
Page 18: Connecting Further Dhc Accessories
To connect the DHC Floor Heating Controller to the DHC Access Point, proceed as follows: Open the ONECTA app. Click on the plus symbol. Select the menu item Add Daikin Home Controls. Select Add DHC Accessory. Briefly press the system button (A) (see figure 7). »... -
Page 19: Manual Operation
Manual operation You can manually start the connection mode for another 3 minutes by pressing the system button (A) briefly (see figure 7). Follow the instructions in the app. Manual operation Switching on/off heating zones For installation and test purposes, you can manually switch single heating zones on or off. To do so, proceed as follows: Select the required channel using the select button (B) (see figure 7). -
Page 20: Error Codes And Flashing Sequences
Troubleshooting accessory will stop transmitting until the time limit is reached. For example, when a device has a duty cycle limit of 1%, it is only allowed to transmit 36 seconds in 1 hour. After this, it will stop transmitting until the 1 hour limit is reached. -
Page 21: Flashing Sequences Of The Channel Led
Troubleshooting Flashing code Meaning Solution 6x long red Accessory defective Contact your reseller. flashing 1x orange and 1 Test LED After the test LED has x green lighting stopped, you can continue. 8.2.2 Flashing sequences of the channel LED Flashing code Meaning Solution Slow... -
Page 22: Restore Factory Settings
Restore factory settings Restore factory settings The factory settings of the accessory can be restored. If you do this, you will lose all your settings. To restore the factory settings of the accessory, proceed as follows: Long press the system button (A) for 4 seconds (see figure »... -
Page 23: Maintenance And Cleaning
Maintenance and cleaning Maintenance and cleaning The accessory does not require you to carry out any maintenance. Enlist the help of an expert to carry out any maintenance or repairs. Clean the accessory using a soft, lint-free cloth that is clean and dry. You may dampen the cloth a little with lukewarm water in order to remove more stubborn marks. -
Page 24: General Information About Radio Operation
Hereby, Daikin Europe N.V. declares that the radio equipment type DHC EKRUFHT61V3 is in compliance with the Directive 2014/53/EU. The original declaration of conformity is available from the EKRUFHT61V3 product pages. -
Page 25: Technical Specifications
Technical specifications Technical specifications Device name: EKRUFHT61V3 Construction of the regulation and control device: independently mounted electronic regulation and control device, surface mount Number of heating zones: Number of actuators: Number of pumps: Supply voltage: 230 V/50 Hz Current consumption: 6.3 A max. Switching capacity per heating zone: 1 A max. - Page 26 Technical specifications Weight: 566 g Radio frequency band: 868.0–868.6 MHz 869.4–869.65 MHz Maximum radiated power: 10 dBm Receiver category: SRD category 2 Typ. open area RF range: 270 m Duty cycle: < 1% per h < 10% per h Subject to technical changes.
- Page 27 Technical specifications Instructions for disposal Do not dispose of the device with regular domestic waste! Electronic equipment must be disposed of at local collection points for waste electronic equipment in compliance with the Waste Electrical and Electronic Equipment Directive. Information about conformity The CE sign is a free trading sign addressed exclusively to the authorities and does not include any warranty of any properties.
- Page 28 Free download of the ONECTA app! 4P687170-1 - 2022.04...
