Product description
EN-

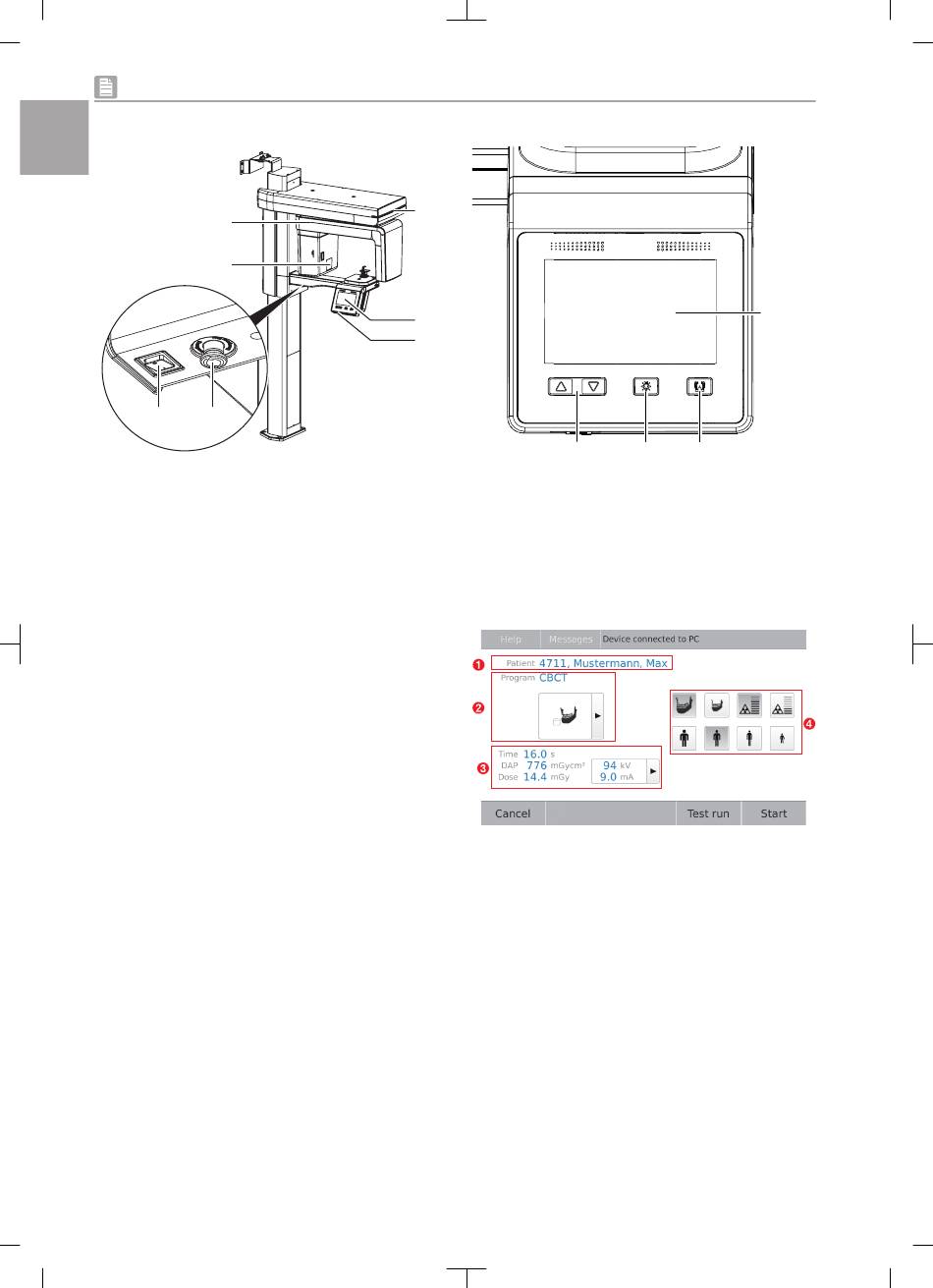

5 Function
US
4
3
2 1
1 Emergency stop switch
2 On/off switch
3 X-ray tube
4 C-shaped elbow
5 Status LED
6 Operating elements
7 Memory card slot
5.1 Functional description
Similar to computer tomography or magnetic res-
onance tomography, sectional images can be
generated with CBCT. With CBCT, an X-ray tube
and an imaging sensor opposite it rotate around
a seated or standing patient. The X-ray tube
rotates through 180°-540° and emits a conical X-
ray beam. The X-rays pass through the region
under investigation and are measured for image
generation by a detector as an attenuated grey
scale X-ray image. Here, a large series of two-
dimensional individual images is acquired during
the revolution of the X-ray tube. Using a mathe-
matical calculation on the rotating image series
via a reconstruction computer, a grey value coor-
dinate image is generated in the three spatial
dimensions. This three-dimensional coordinate
model corresponds to a volume graphic that is
made up of individual voxels. This volume can be
used to generate sectional images (tomograms)
in all spatial dimensions as well as 3D views.
18
5.2 Operating elements
5
6
7
4
1 Touch screen
2 Button for opening/closing the head sup-
ports
3 Button for positioning beams on/off
4 Buttons for height adjustment
The touch screen can be used to operate the
unit. Information can be entered on the touch
screen with the tip of a finger.
Fig. 1: Monitor, unit ready to acquire image
1 Logged-in patient
2 Selected X-ray image
3 Display of the X-ray parameters (duration,
DAP value, voltage and current)
4 Selected parameters
The Help button can be used to open a help
page for the respective page. The Messages
button can be used to call up current messages.
1
3 2
