- Page 1 CPT-387 HD to Video Converter Operation Manual CPT-387...
- Page 2 TABLE OF CONTENTS 1. Introduction................2. Main Features................3. Hardware Description..............3.1 Front Panel................3.2 Rear Panel................4. Connections and Installation............ 5. Specifications................
-
Page 3: Main Features

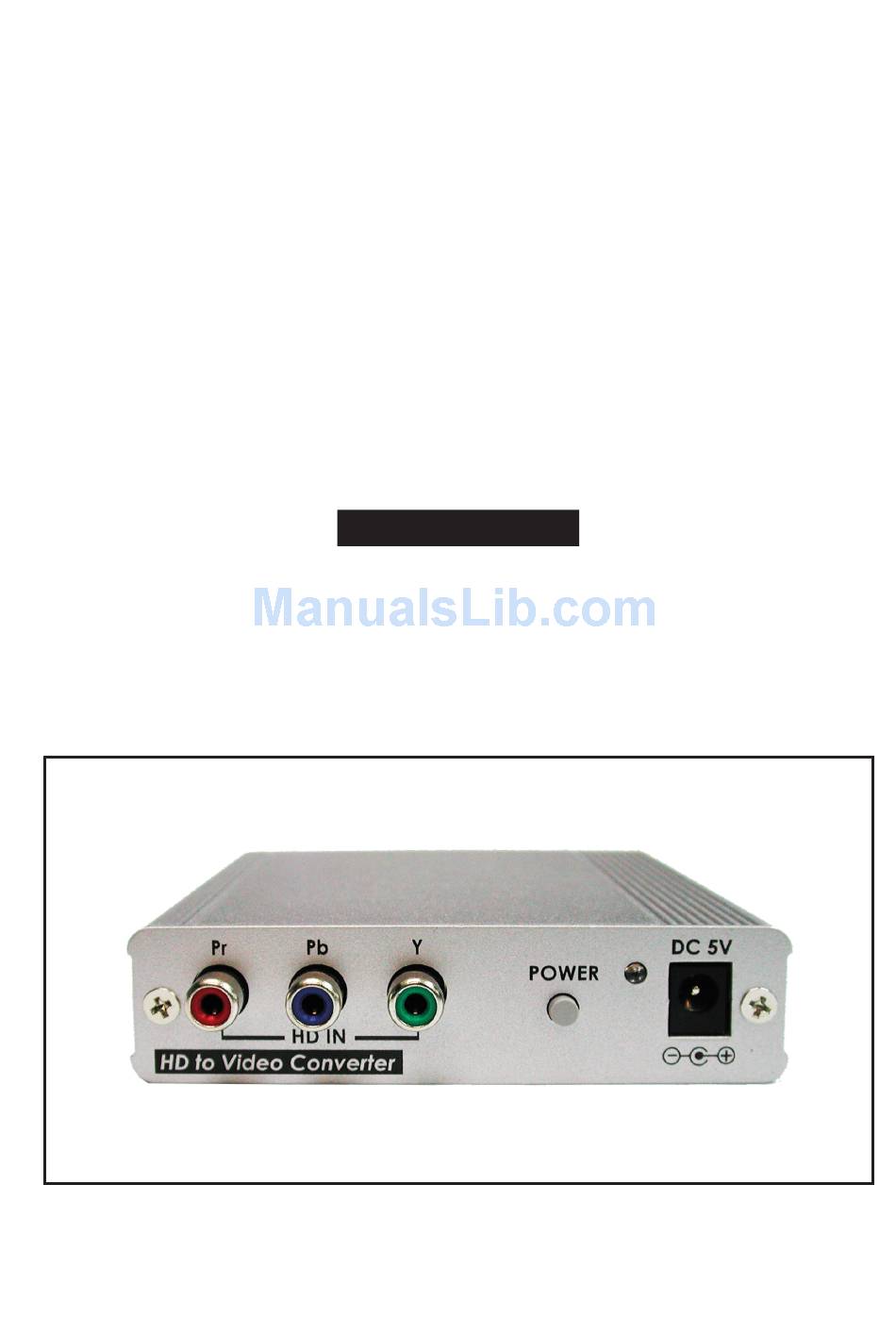

1. Introduction This is a HD to Video with HD bypass scan converter box. It is designed to convert a variety of HD images, from 480p up to 1080p and converts them to NTSC or PAL standards video and HD images bypass. Simply use switch to select NTSC/PAL output format, the user also can adjust the overscan/underscan from the front panel. - Page 4 3. Hardware Description The following sections describe the hardware components of the unit. 3.1 Front Panel DC 5V POWER HD IN HD to Video Converter 1 . HD input: Connect the YPbPr input connecter to the source, such as DVD player.
-
Page 5: Specifications
4. Connection and Installation CV/SV Y/Pb/Pr Y/Pb/Pr NTSC / PAL TV 5. Specifications Input ports 1 x Component (Y/Pb/Pr) Output ports 1 x Component bypass (Y/Pb/Pr), 1 x Composite, 1 x S-video Switcher 1 x Underscan/Overscan, 1 x PAL/NTSC Power Supply 5V/2A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 105(W) x 102(D) x 25(H) - Page 7 20080212 MPM-CPT387...
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
