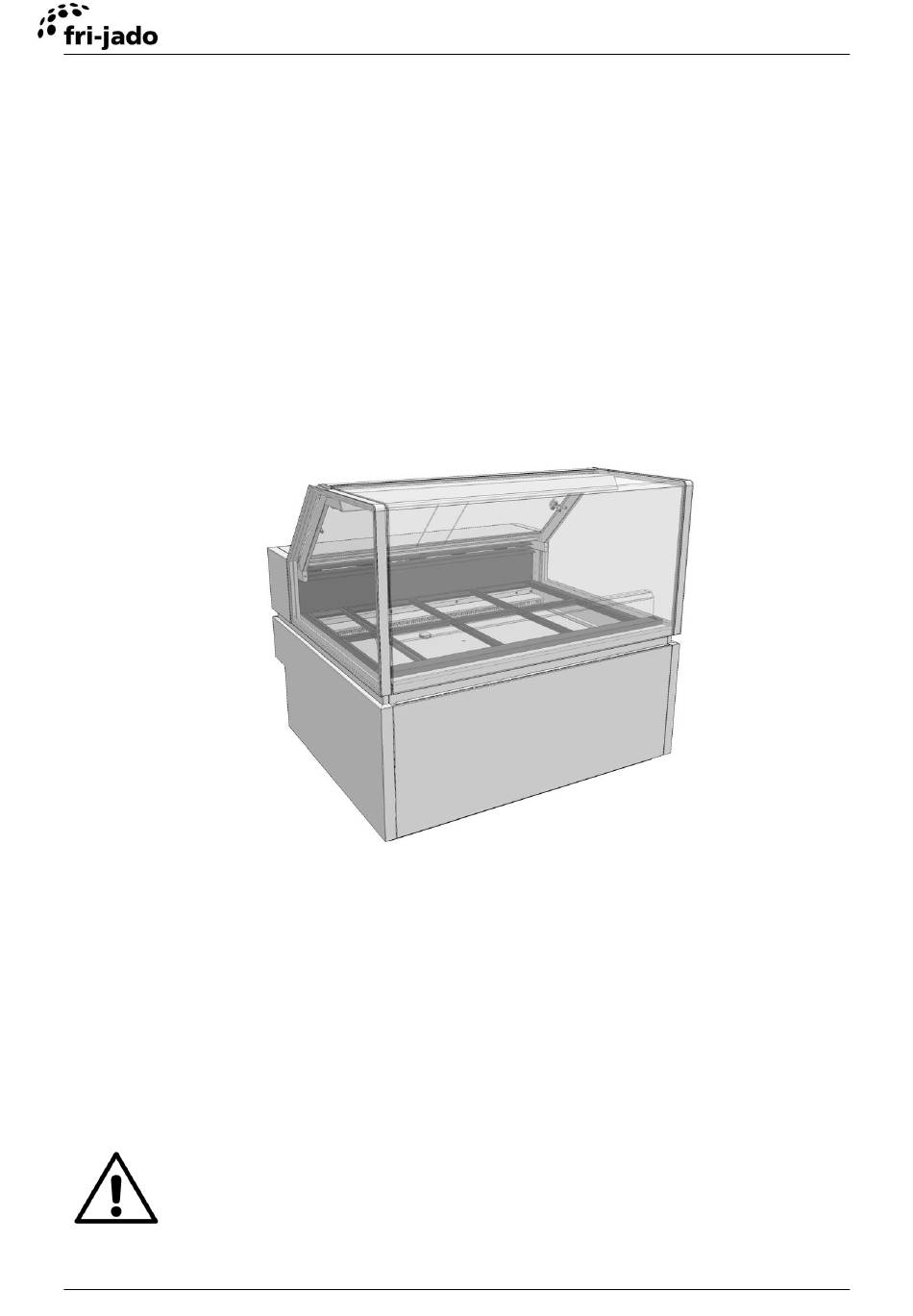

- Page 1 CC – Hot USER MANUAL Custom Counter – Hot EU version WARNING Read the instructions before using the machine. EN (Original Instruction) 9124783 / 2210...
- Page 2 CC – Hot KEEP THIS USER MANUAL FOR FUTURE USE © 2022 Fri-Jado B.V., Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
-
Page 3: Table Of Contents
CC – Hot CONTENTS INTRODUCTION ......................4 General ..........................4 Identification of the unit ..................... 4 Pictograms and symbols ....................4 Safety instructions ......................5 1.4.1 General ........................5 Hygiene ..........................6 Service and technical support ................... 6 Storage ..........................6 Disposal .......................... -
Page 4: Introduction
INTRODUCTION General This manual is intended for the user of the Hot CC (Custom Counter). The features and controls are being described, along with directions for the safest and most efficient use, in order to guarantee a long life of the unit. -
Page 5: Safety Instructions
CC – Hot Safety instructions WARNING The outside and shelves of the unit can be very hot. WARNING The maximum load on top of the unit may never exceed 10 kg. WARNING See installation instructions for grounding requirements. WARNING Risk of slippery floor: Spills may cause slippery surfaces, clean-up promptly. WARNING Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. -
Page 6: Hygiene
CC – Hot Hygiene WARNING Immediately remove products in damaged packaging from the equipment and destroy the products. Clean all components that have come in contact with products from damaged packaging. The quality of a fresh product always depends on hygiene. •... -
Page 7: Description Of The Unit

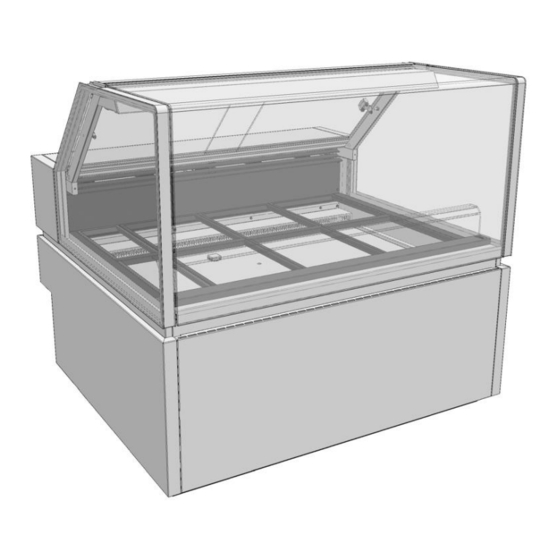

Sliding doors allow products to be loaded from the operator side. The cabinet uses Fri-Jado’s patented heating system in which hot air is circulated through for optimal temperature distribution and energy efficiency. Long lasting high temperature resistant LED lighting is fitted to as standard. -
Page 8: Installation And First Use
CC – Hot INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. Before and during unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. Unpacking the unit 1. -
Page 9: Operation And Use
CC – Hot OPERATION AND USE The display and/or set value is not the product/unit temperature. The unit is set at 85ºC intake air temperature. If required this temperature can be adjusted to some degree. At a ambient temperature of 20ºC and an initial core temperature of 85ºC these factory settings of the unit’s temperature ensure a constant core temperature of at least 63ºC for 4 hours. - Page 10 CC – Hot Switching-on the unit • Switch the main-switch on. • Switch the heating on. • Preheat the unit for approx. 30 minutes. • Switch on the lighting (if applicable). • Humidification: switch on (if applicable, refer to humidifier manual). Loading the unit •...
- Page 11 CC – Hot Switching off • Remove all products from the unit. In order to avoid temperature drop of the products, store them in another warm holding unit. • Switch the heating off. • Switch the lighting off (if applicable). •...
-
Page 12: Cleaning And Maintenance
CC – Hot CLEANING AND MAINTENANCE WARNING Never use a water hose for cleaning. Water can seep into the unit through the ventilation holes of the unit. Mains power must be switched off during cleaning or maintenance and when replacing parts. Because of hygiene aspects and optimum condition of the unit it is of utmost... -
Page 13: Weekly Cleaning
CC – Hot Weekly Cleaning WARNING The control panel may only be cleaned using a damp cloth. • Clean the outside of the unit with a small amount of hot water and a mild cleanser and using a soft brush or sponge. After cleaning it dry the outside with a cloth. •... -
Page 14: Cleaning The Interior
CC – Hot Cleaning the interior Prepare the unit: • Opening front glass (customer side), one at the time (!), • Remove side glass, • Remove sliding doors (operator side). Clean the: • Deck plates, • Air inlet grid, • Air outlet grid, •... -
Page 15: Malfunctions And Service
CC – Hot MALFUNCTIONS AND SERVICE Before you consult your dealer or the service agency when there is a fault, you can check the following points yourself: • Is the power supply OK? Check the fuses and the earth leakage switch in the meter cupboard. -
Page 16: Technical Specifications
CC – Hot TECHNICAL SPECIFICATIONS WARNING Consult the identification plate to get the proper specifications of the unit. The electrical data may vary from country to country. Self-service models Model SS 1000 SS 1250 Width 1000 1250 Depth Height 1200 Weight Net Approx. - Page 17 CC – Hot Full service models Model FS 750 FS 1000 FS 1250 FS 1500 FS 1750 Width 1000 1250 1500 1750 Depth 1223 Height 1200 Weight Net Approx. min. 20 ‒ max. 30 Ambient Temperature ºC Relative humidity max. 60 Noise level (at workplace) dB(A) <70...
- Page 18 CC – Hot Notes. 18/20...
- Page 19 CC – Hot Notes. 19/20...
- Page 20 CC – Hot Fri-Jado B.V. Fri-Jado Inc. Blauwhekken 2 1401 Davey Road, Suite 100 4751 XD Oud Gastel Woodridge IL 60517 The Netherlands Tel: +31 (0) 76 50 85 400 Tel: +1-630-633-7950 www.frijado.com 20/20...
