7
OPTIONS
Options

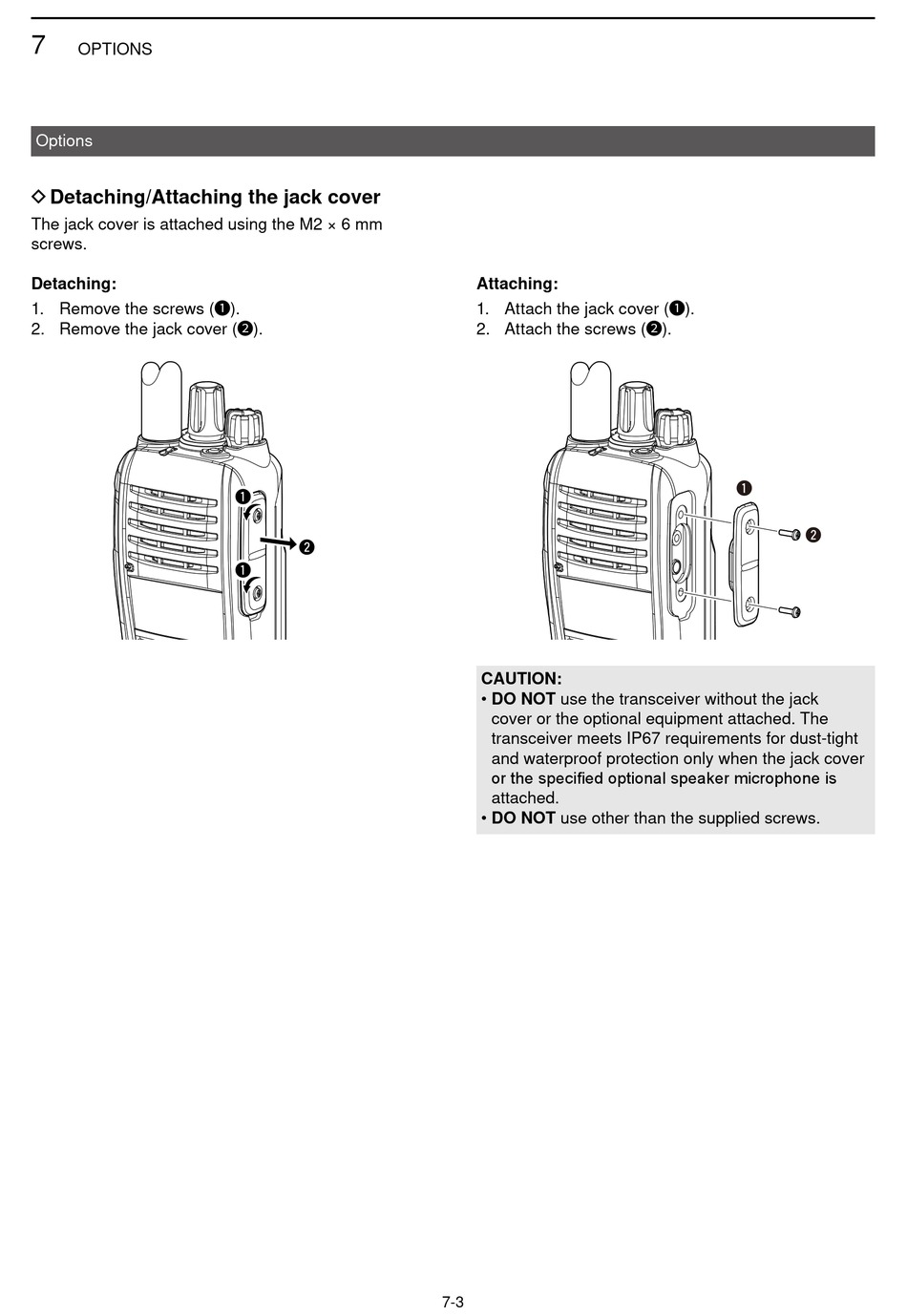

D Detaching/Attaching the jack cover
The jack cover is attached using the M2 × 6 mm
screws.
Detaching:
1. Remove the screws (1).
2. Remove the jack cover (2).
q
w
q
Attaching:
1. Attach the jack cover (1).
2. Attach the screws (2).
CAUTION:
• DO NOT use the transceiver without the jack
cover or the optional equipment attached. The
transceiver meets IP67 requirements for dust-tight
and waterproof protection only when the jack cover
or the specified optional speaker microphone is
attached.
• DO NOT use other than the supplied screws.
7-3
q
w
