6
OTHER FUNCTIONS

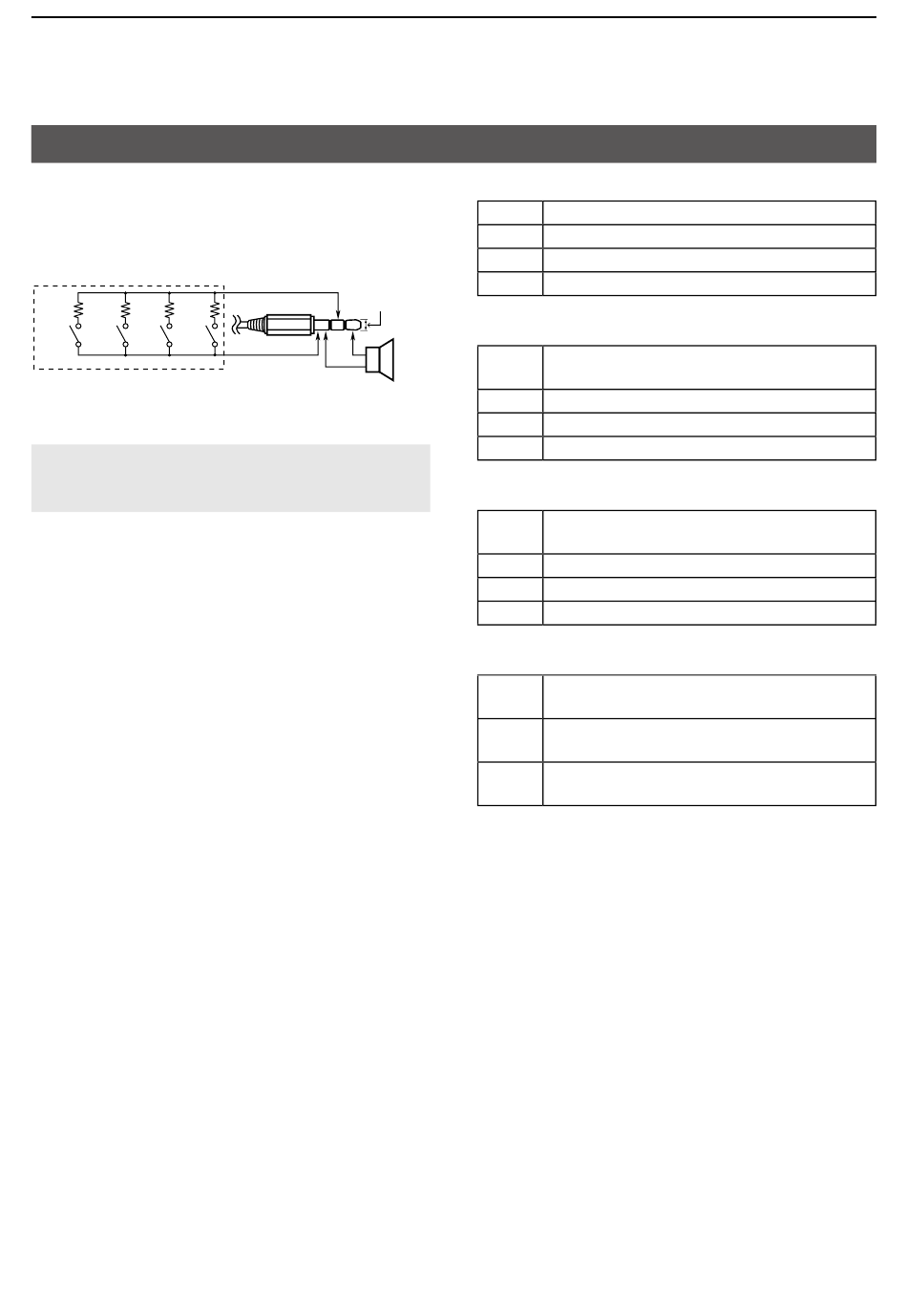

Using the Simple MIC function

The Simple MIC function enables controlling the
transceiver through your control unit attached to the
[SP] jack.
Remote control unit
2.7kΩ 6.8kΩ 15kΩ 33kΩ
S1 S2 S3 S4
NOTE: BE SURE to turn OFF the transceiver when
plugging or unplugging the headset into or from the
[SP] jack.
To the ［SP］ jack
3.5 （ d） mm
REMOTE
SP
+
‒
GND
External speaker
Rated input ： 700 mW （8Ω） or more
• SImPLE
S1 Selects a Call channel.
S2 Turns the Monitor function ON or OFF.
S3 Selects memory channel 0.
S4 Selects memory channel 1.
• nORm-1
S1 Toggles between the VFO mode and
Memory mode.
S2 Selects a Call channel.
S3 Frequency or memory channel "UP."
S4 Frequency or memory channel "DOWN."
• nORm-2
S1 Toggles between the VFO mode and
Memory mode.
S2 Turns the Monitor function ON or OFF.
S3 Frequency or memory channel "UP."
S4 Frequency or memory channel "DOWN."
• Common (SImPLE, nORm-1, nORm-2)
Transmits t-CALL (1750 Hz tone) while
S2
holding down [PTT].
S3 Enters the Squelch adjustment mode while
using the Monitor function.
S4 Enters the Squelch adjustment mode while
using the Monitor function.
6-10
