Icom IC-T10 Advanced Manual page 30

5
SET MODE

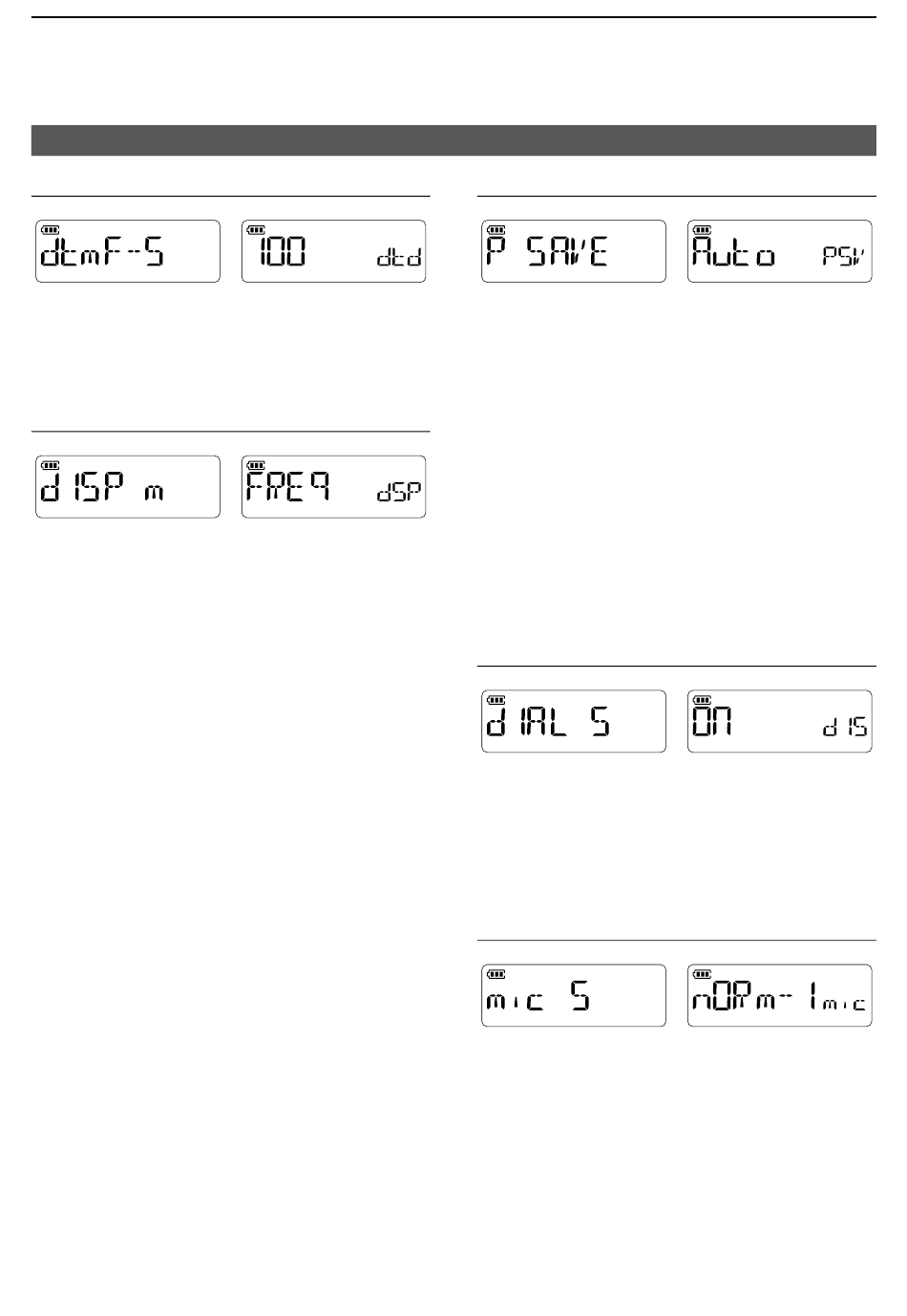

Initial Set Mode items
DTMF speed
Selects a rate at which DTMF memories send
individual DTMF characters to accommodate your
operating needs.
• Options: 100, 200, 300, or 500 milliseconds.
Display mode
Selects a display mode in the Memory mode.
• nAmE: Displays a memory channel name
(p. 2-5)
• CH*: Displays a memory channel number.
• FREq: Displays a memory channel
frequency.
* When "CH" is selected, the usable functions and Set mode
items will be restricted as shown below.
BM: See the BASIC MANUAL for details.
Usable functions when "CH" is selected:
• Memory Scan (p. 3-5)
• Selecting an output power (BM)
• Monitor function (BM)
• Adjusting the squelch level (BM)
• Using the Lock function (BM)
• Transmitting a DTMF code (p. 6-3)
• Home Channel function (BM)
• Set mode
( Settable items are "PAUSE," "LIGHt," "mic G," "VOX,"
"VOX LV," "VOX.dLy," "VOX.tot," "dtmF-t," and "dtmF.")
(Default: 100) Power save
Selects an option for the Power Save function, which
conserves the battery life.
• OFF:
• 2:
• 8:
(Default: FREq)
• 16:
• Auto:
Dial speed up
Selects whether or not to accelerate the tuning speed
when rapidly rotating [DIAL].
• OFF:
• On:
MIC simple mode
The Simple MIC function is used to assign the
essential operations to the remote control unit, which
will be connected through [SP] jack. See page 6-9 for
details.
• Options:
5-8
Turns OFF the function.
Sets the duty cycle to 1:2.
(ON: 0.1 sec, OFF: 0.2 sec)
Sets the duty cycle to 1:8.
(ON: 0.1 sec, OFF: 0.8 sec)
Sets the duty cycle to 1:16.
(ON: 0.1 sec, OFF: 1.6 sec)
Automatically sets the duty cycle.
When no operation occurs and no
signal is received for 5 seconds, the
transceiver enters the Power Save
mode, and sets the duty cycle to 1:2.
After 60 seconds, it sets the duty
cycle to 1:16.
Turns OFF the tuning speed
acceleration.
Accelerates the tuning speed when
rapidly rotating [DIAL].
(Default: nORm-1)
SImPLE, nORm-1, nORm-2
(Default: Auto)
(Default: On)
