EVAL-ADGS5412SDZ

MEMORY MAP

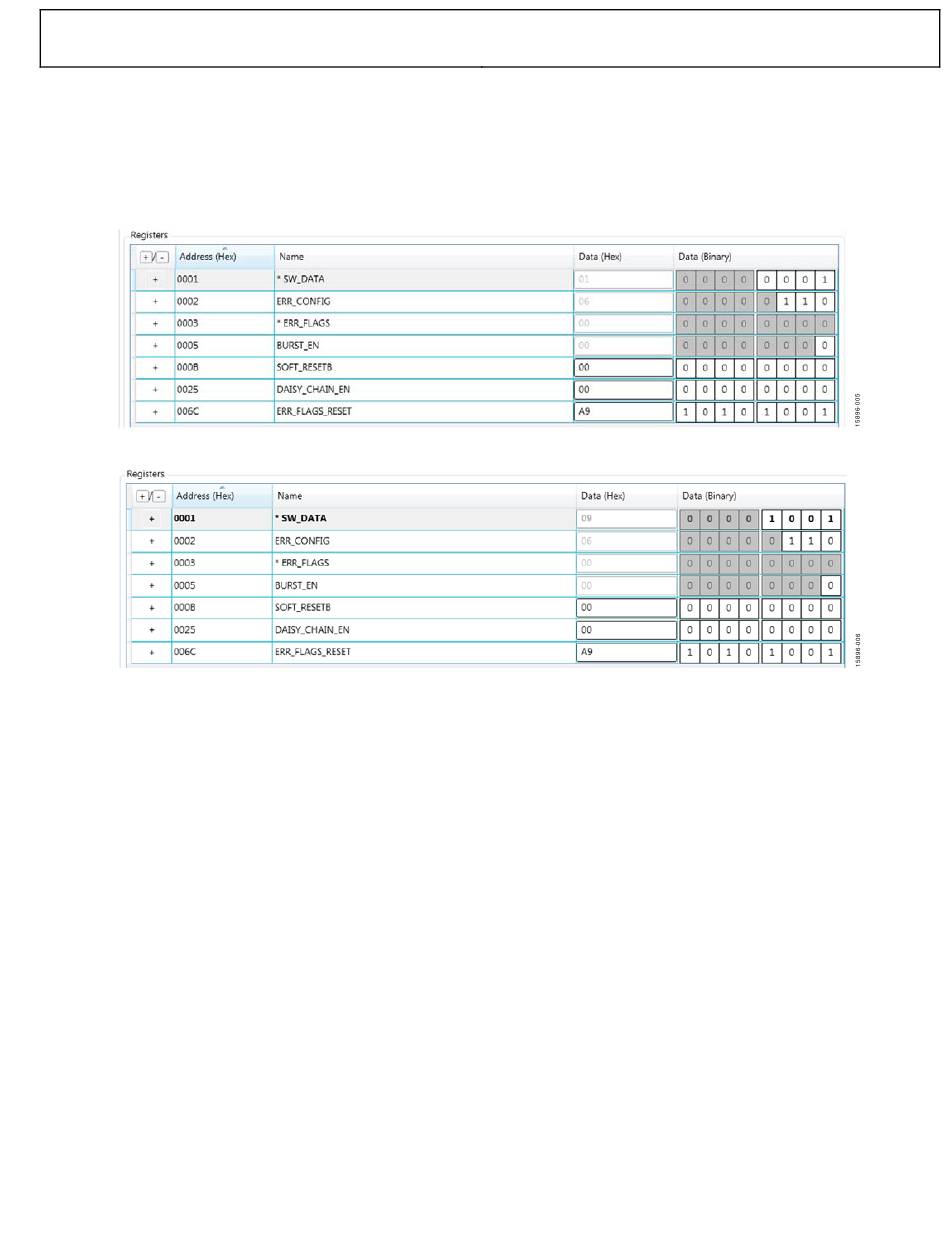

All registers are fully accessible from the Memory Map tab; this
allows registers to be edited at a bit level (see Figure 5 and Figure 6).
The bits shaded in dark gray are read-only bits and cannot be
accessed from ACE. All other bits are toggled. The Apply Changes
button transfers data to the device.
User Guide
Figure 5.
Figure 6. ADGS5412 Memory Map with Unapplied Changes in the SW_DATA Register
Rev. 0 | Page 7 of 12
All changes here correspond to the block diagram; for example,
if the internal register bit is enabled, it displays as enabled on
the block diagram. Any bits or registers that are bold are
modified values that have not been transferred to the evaluation
board. After clicking Apply Changes, the data is transferred to
the evaluation board.
ADGS5412 Memory Map
UG-1141
