UG-675 EVAL-AD5693RSDZ User Guide

MEMORY MAP

All registers are fully accessible from the AD5693R Memory
Map tab, shown in Figure 5. To navigate to this tab, click the
Proceed to Memory Map button, shown in Figure 4. This tab
allows registers to be edited at the bit level. The bits shaded in
dark gray are read-only bits and cannot be accessed from the
ACE software. All other bits are toggled.
Clicking the Apply Changes button transfers data to the device.
All changes made in the memory map tab correspond to the block

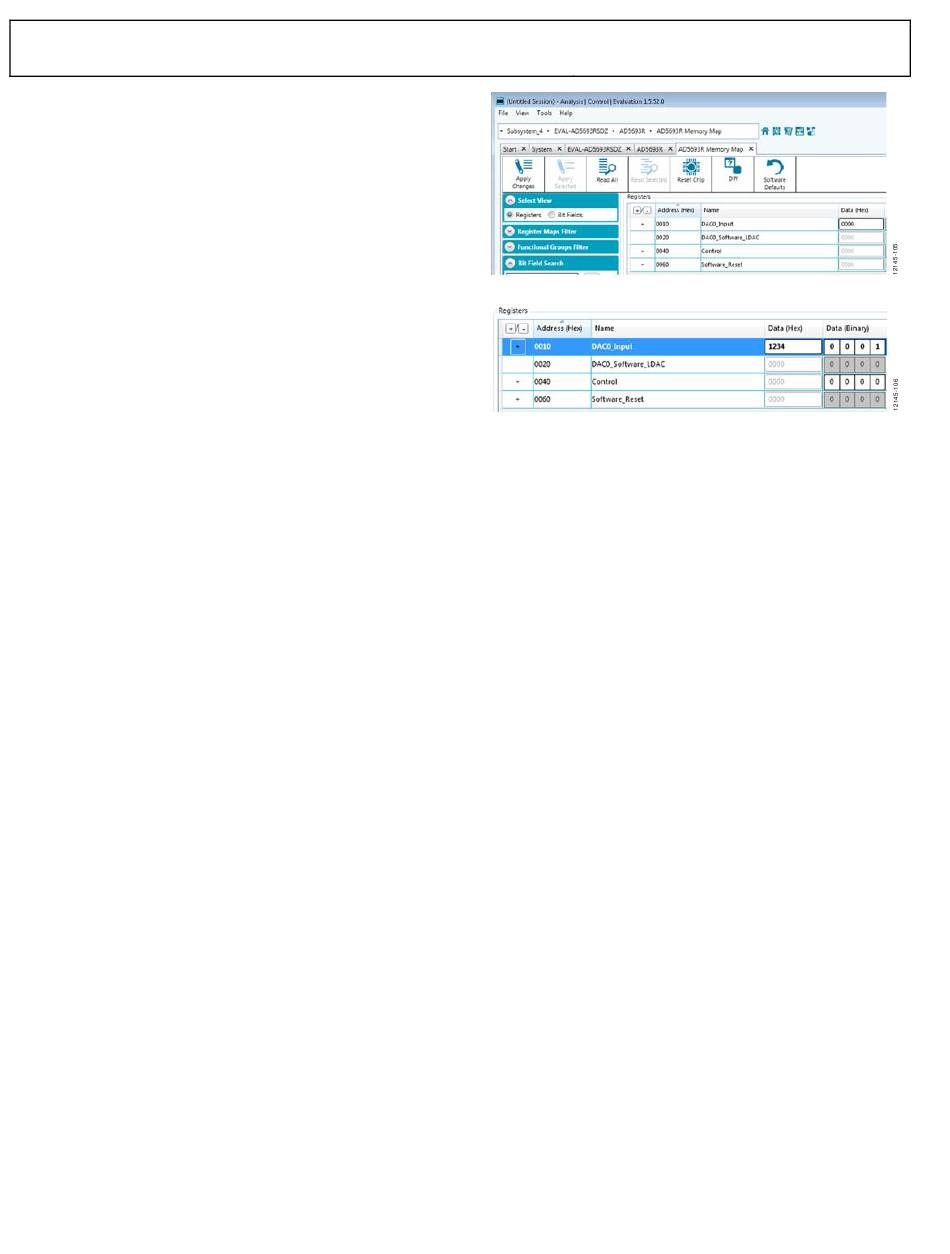

Figure 5. AD5693R Memory Map Tab
diagram. For example, if the internal register bit is enabled, it
displays as enabled on the block diagram. Any bits or registers
that are in bold in the memory map tab are modified values that
have not been transferred to the evaluation board (see Figure 6).
Click Apply Changes to transfer the data to the evaluation board.
Figure 6. AD5693R Memory Map with Unapplied Changes in the
DAC0_Input Register
