UG-815
Label Function
I The DAC Configuration options provide access to per channel configuration options such as power-down options and hardware
LDAC mask setting.
J Selecting enabled from the internal reference setting enables the on-chip reference for the board, if disabled is selected, an
external reference must be applied. This control is only available on the AD5675R.
The Apply Changes button applies all modified values to the device. Note that if an evaluation board is not connected, values
K
entered into the Input Registers are not transferred to the DAC registers.

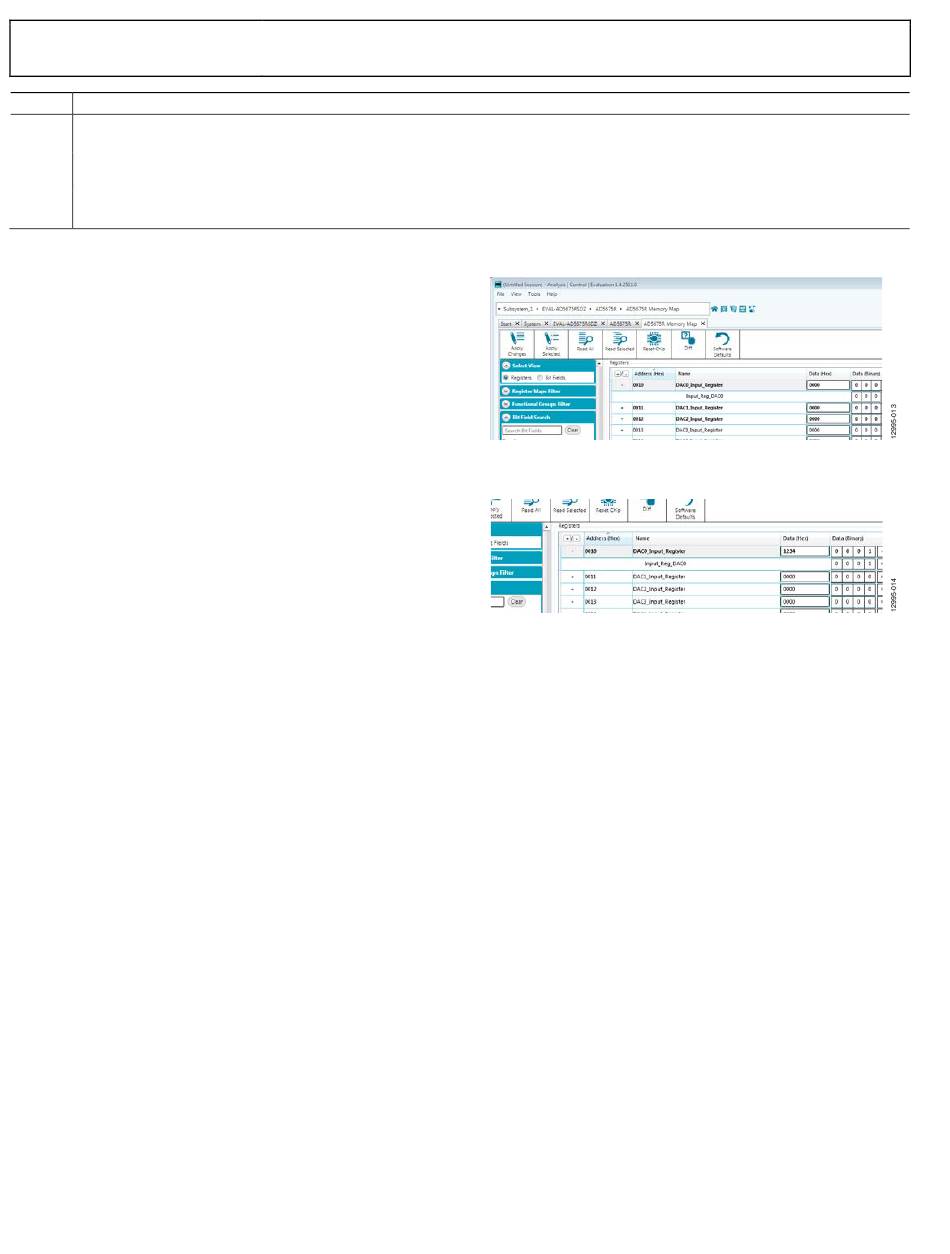

MEMORY MAP

All registers are fully accessible from the memory map tab, this
allows the registers to be edited at a bit level. The bits shaded in
dark grat are read only bits and cannot be accessed from the
ACE; all other bits are toggled. Apply Changes is used to
transfer data to the device. All changes here correspond to the
block diagram, for example, if the internal register bit is
enabled, it shows as enabled on the block diagram. Any bits or
registers that are in bold are modified values that have not been
transferred to the board. After Apply Changes is clicked the
data is transferred to the board.
Figure 6. AD5675R
Rev. A | Page 6 of 13
Evaluation Board User Guide
Figure 5. AD5675R Memory Map
Memory Map with Unapplied Changes in DAC0 Input
Register
