Home Automation (WMP) – Hitachi VRF
®
Intesis
•
IU address. Address 1..64 of Unit in Hitachi H-Link bus.
•
OU address. Address 1..64 of Outdoor Unit in Hitachi H-Link bus.
•
Description. Descriptive name to easy identification of the unit (for example, 'living room floor 1 unit', etc).
Additional to manual entry of each unit, autodiscover of present units in an H-Link installation is possible. To do so,

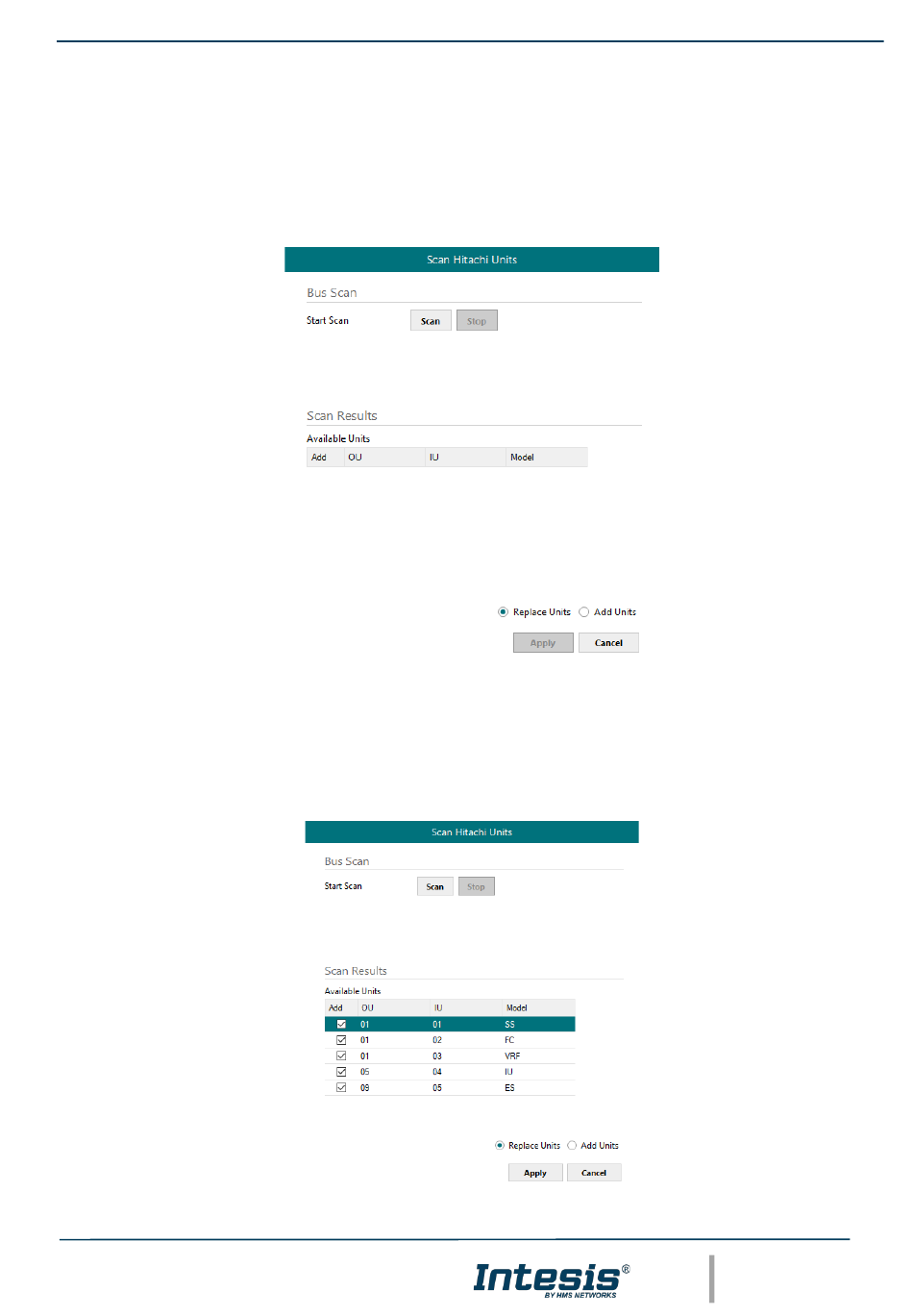

click button Scan. Following window will appear:
By pressing Scan button, connected Hitachi H-Link bus will be scanned for available units. Error window will appear
if there is a problem in the connection with H-Link bus (units not powered, bus not connected, ...).
A progress bar will appear during the scan, which will take up to a few minutes. After scan is complected, detected
units will be shown in available units as follows:
Figure 4.6 Intesis MAPS Scan Hitachi Units window with scan results
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
Figure 4.5 Intesis MAPS Scan Hitachi Units window
