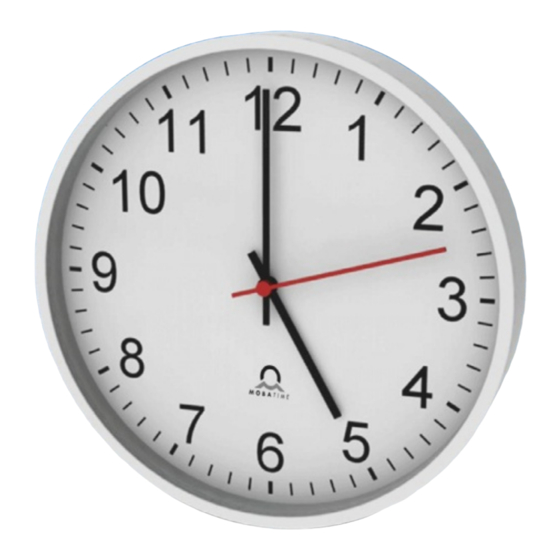

- Page 1 MOUNTING AND INSTRUCTION MANUAL TREND MOBALine MOBALine analog clock © MOBATIME BE-800913.02...
-
Page 2: Table Of Contents
It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND. -
Page 3: 1 Safety
Please observe the electromagnetic compatibility! This device complies with the requirements of the EMC and the Low-voltage Directive. Caution! © MOBATIME 3 / 12 800913.02... -
Page 4: 2 Maintenance
Return your device to your supplier who will dispose of it correctly. Packaging Your device is packaged to protect it from damages during transport. Packaging is made of materials that can be disposed of in an environmentally friendly manner and properly recycled. © MOBATIME 4 / 12 800913.02... -
Page 5: 3 General Information: Introduction
12 o’clock position. The deviation after 24 h without synchronization is typically smaller than +/-2 s (quartz accuracy: 20 ppm at room temperature). Notice: the mentioned deviations depend on the accuracy and the capacity of the master clock (MOBALine). © MOBATIME 5 / 12 800913.02... -
Page 6: 4 Mounting Guidelines
Mounting guidelines Connections Mounting single-sided clock Mounting double-sided clock Wall / ceiling set 10 cm Ceiling set 50 / 100 cm Bridge cable Art. no. 205132 Included in delivery Clamp (not included) MOBALine signal © MOBATIME 6 / 12 800913.02... -
Page 7: 5 Configuration
Set clock to 12 o’clock position 1. Hold push-button for 5 seconds. Clock changes to 12 o’clock mode. 2. Press push-button once, clock changes back to normal mode. Configuration and surveillance with an NMI See chapter 6. © MOBATIME 7 / 12 800913.02... -
Page 8: 6 Startup, Configuration And Monitoring With Nmi
Configuration -> NMI Settings -> MOBALine Mode. With this step, all clock IDs will be programmed fix. From this point onward, the NMI can monitor the clocks and the IDs will not be lost e.g. due to a blackout. © MOBATIME 8 / 12 800913.02... -
Page 9: Monitoring
Monitoring is limited to a simple „alive message“ (clock connected to MOBALine / clock not connected or defect). Example correctly monitored clocks: Example erroneous clocks: Notice: The clocks are not monitored resp. updated in the 12H mode. © MOBATIME 9 / 12 800913.02... -
Page 10: 7 Accessories
1 (h / min.) with forward and backward motion with second hand: 2 (h / min. + sec.) with forward / backward motion Temperature area -10 … +55 °C Weight without second hand: 165 g with second hand: 180 g © MOBATIME 10 / 12 800913.02... - Page 11 © MOBATIME 11 / 12 800913.02...
