Step 1. Select the [SPC5 AI Component RLA] in the project explorer.
A new window is opened with the network list imported.
Step 2. Add a new network by clicking on [+].
Step 3. Double-click on the new network preconfigured with the default option.
Step 4. Configure the parameters for the LSTM AI-car sensing node.
Step 4a.
Step 4b.
Step 4c.
Step 4d.
Step 4e.
UM3053 - Rev 1

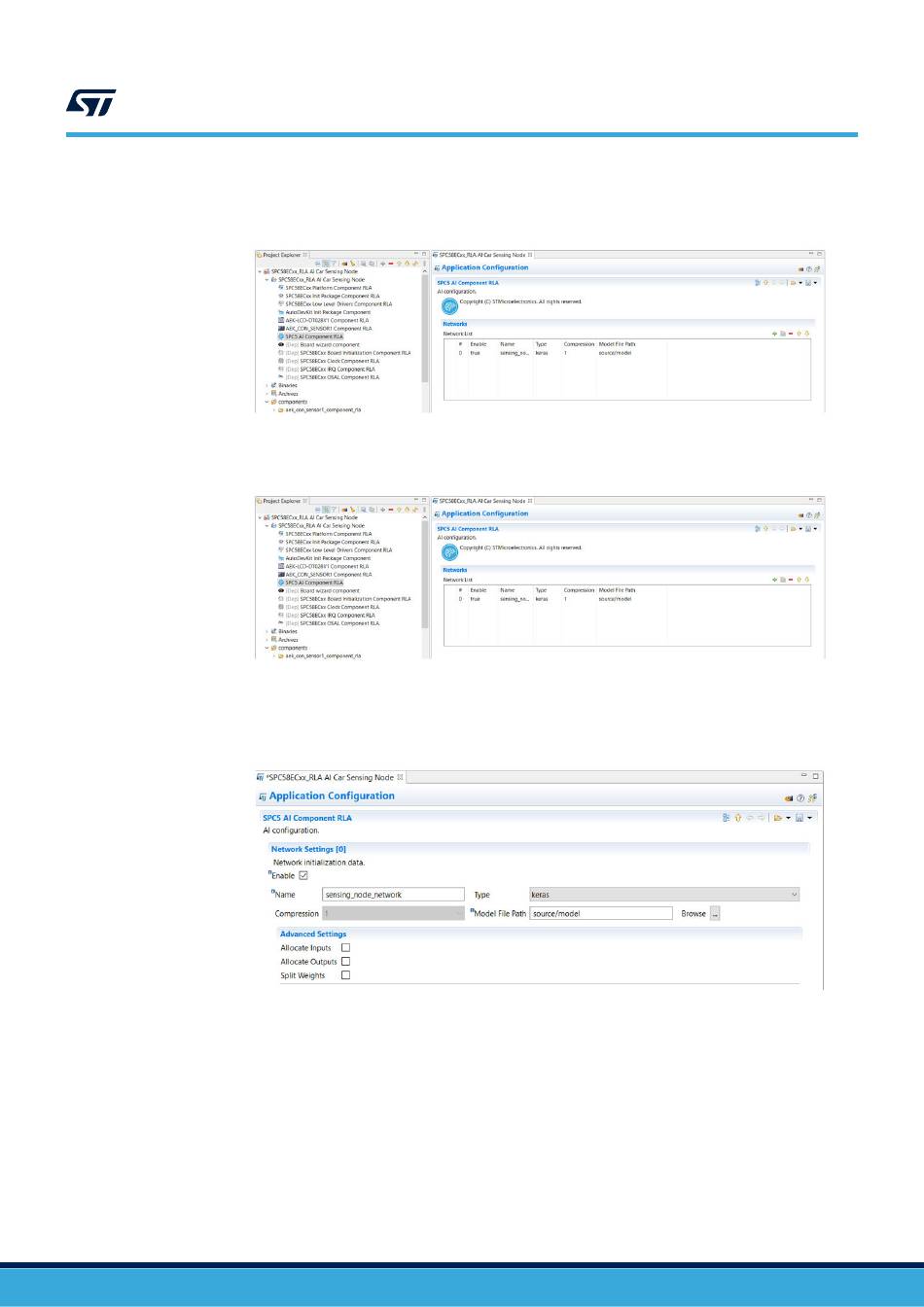

Figure 18.
Figure 19.
Figure 20.
Enable the network initialization data.
Put a valid neural network name.
Select the framework used for the training (Keras).
Select a compression equal to 1 (it indicates the expected global factor of compression
applied to dense layers).
Select a valid model file path that contains the *.h5 file.
Network list imported
Adding a new network
Configuring the parameters
