Low-level software

This is the lower layer of the software architecture. It is responsible for interfacing the MCU with the other boards.
This layer includes:
• AEK-CON-SENSOR1 AutoDevKit component APIs
• AI sensing node neural network API
• AEK-LCD-DT028V1 AutoDevKit component API
4.3.1.1 AEK-CON-SENSOR1 AutoDevKit component APIs
The AEK-CON-SENSOR1
software (STSW-AUTODEVKIT). The library is written in MISRA C. The target software is generated automatically
according to the code generation and pin allocation paradigm included in the
can be easily adapted to any ST MEMS sensor, even if not directly supported by the software library.
To configure the
procedure below.
Step 1. Go on [SPC58ECxx Platform Component RLA] in the project explorer and add a new [AEK-CON-
SENSOR1 Component RLA] from the list.
Step 2. Press on the allocation button to make the
Step 3. Use the PinMap editor to verify that all the relevant pins have been allocated (four for the SPI and two
for the interrupts).
Step 4. Use the [Board Viewer] for information on how to connect the MCU board to the sensor board.
Then, the application uses the following available
–
–
–
Refer to the
4.3.1.2 AI sensing node neural network API
For detailed information on this API, see
UM3053 - Rev 1

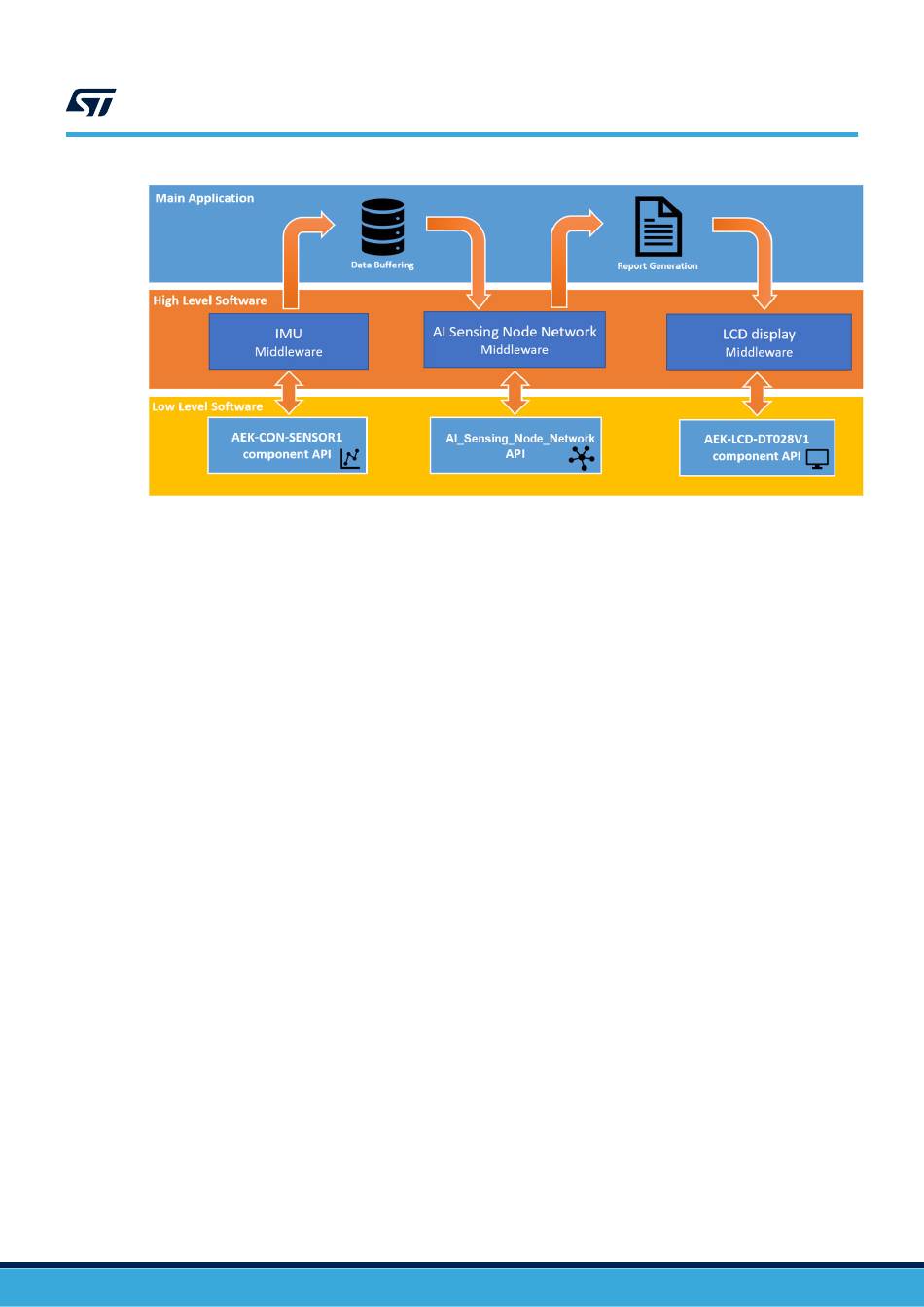

Figure 23. AEKD-AICAR1 software architecture
MEMS sensor drivers are included in a component that belongs to the
AEK-CON-SENSOR1 AutoDevKit
To initialize the MEMS sensor board: void init_mems()
To configure the AIS2DW12
>configure_sensor(&ais2dw12_0, power_mode_12bit, continuous, _25Hz, _2g,
low_pass_1_and_2_odr_div_20);
To get acceleration values: ais2dw12_0.methods->get_accelerations(&ais2dw12_0,
&accelerations);
AEK-CON-SENSOR1 user manual
Section 3.2
component for the AEKD-AICAR1
AutoDevKit automatically allocate all the required MCU pins.
AEK-CON-SENSOR1
accelerometer: ais2dw12_0.methods-
for further details.
.
