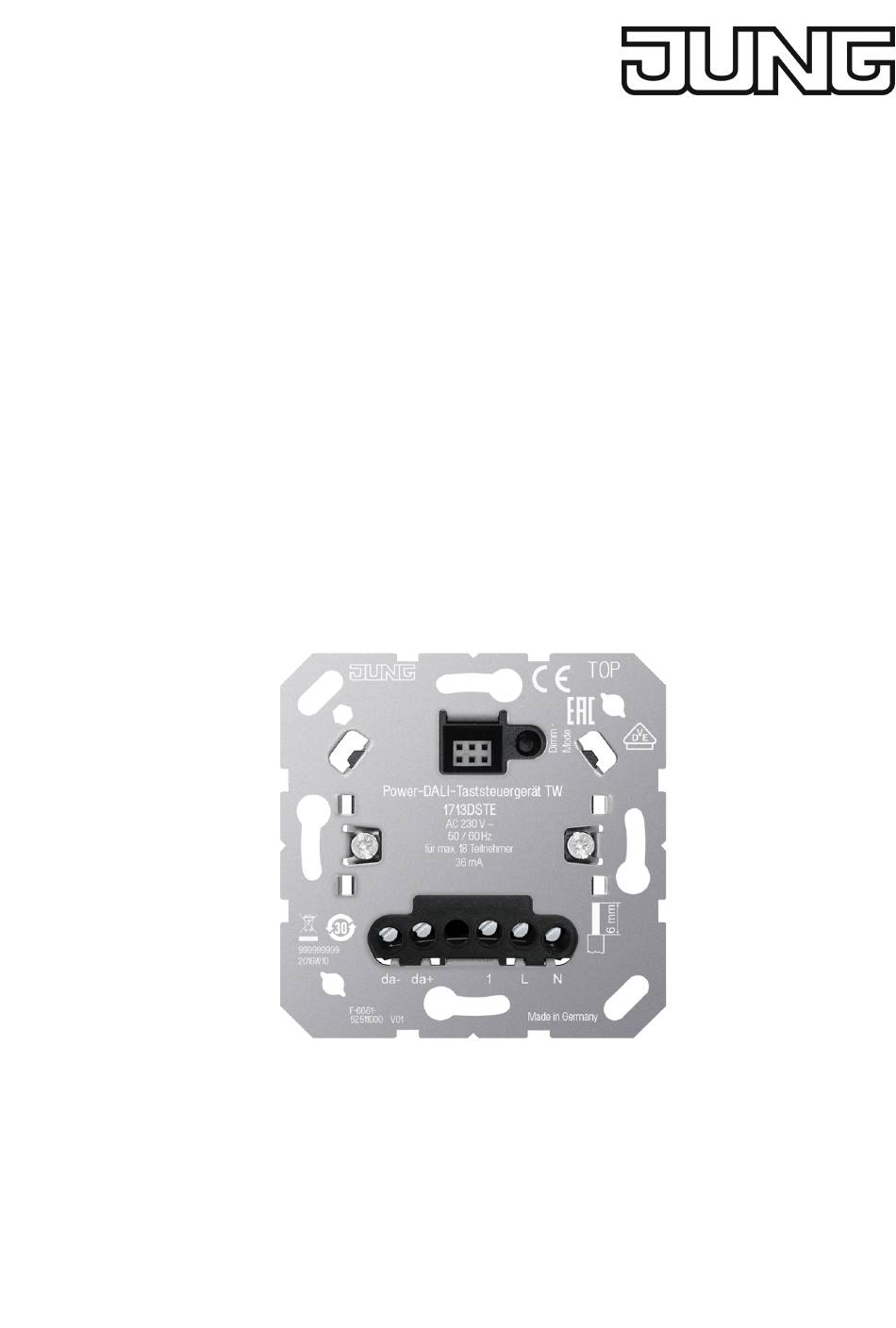

- Page 1 Operating instructions Power DALI push-button controller TW Art. no. 1713DSTE ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 19.08.2022 82598933 J0082598933 www.jung.de...
-
Page 2: Table Of Contents
Power DALI push-button controller TW Table of Contents Safety instructions ...................... 3 Intended use ........................ 3 Operation .......................... 3 Information for electrically skilled persons ................ 5 Technical data ........................ 8 Warranty.......................... 9 82598933 2 / 9 19.08.2022 J0082598933... -
Page 3: Safety Instructions
– Mounting in appliance box with dimensions according to DIN 49073 – Operation with suitable cover from the systems LB management, JUNG HOME, eNet and KNX RF Since error-free interaction cannot be guaranteed in combination with other DALI controls, it is thus not recommend. - Page 4 Power DALI push-button controller TW Switching the light ￭ Brief press on the operating cover: Light is switched on or off at the last set brightness/colour temperature or a saved brightness/colour temperature. ￭ Long press on the operating cover at the bottom: Light is switched on at min- imum brightness.
-
Page 5: Information For Electrically Skilled Persons
Power DALI push-button controller TW Saving a switch-on brightness is not possible. Information for electrically skilled persons DANGER! Mortal danger of electric shock. Before carrying out work on the device or load, disengage all the corresponding cir- cuit breakers. Cover up live parts! Connecting and fitting the device Image 1: Connection diagram with optional extensions DALI insert... - Page 6 Power DALI push-button controller TW DALI cable: type, cross-section and routing according to the specifications for 250 V cables. DALI and mains voltage wires can be run together in a cable, e.g. NYM 5x1.5 mm². ￭ Connect the DALI insert (1) and the DALI subscriber (4) according to the con- nection diagram (see figure 1).
- Page 7 Power DALI push-button controller TW Image 3: Switching DALI inserts in parallel Parallel switched DALI inserts cannot be operated with motion or presence de- tector covers. Adjusting the minimum brightness and colour temperature limits to the luminaire Precondition: Light is switched on. Press the button Test (3) for longer than 4 seconds, until the LED (2) turns ￭...
-
Page 8: Technical Data
Power DALI push-button controller TW The LED lights up blue and the luminaire switches to the coldest colour tem- perature. ￭ To change the coldest colour temperature, press and hold the button Test for longer than one second. The LED flashes blue and the luminaire slowly starts to warm up at the coldest colour temperature (10,000 K). -
Page 9: Warranty
Total length of extension device cable max. 100 m Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
