LB management
Power DALI push-button controller TW
Power DALI push-button controller TW

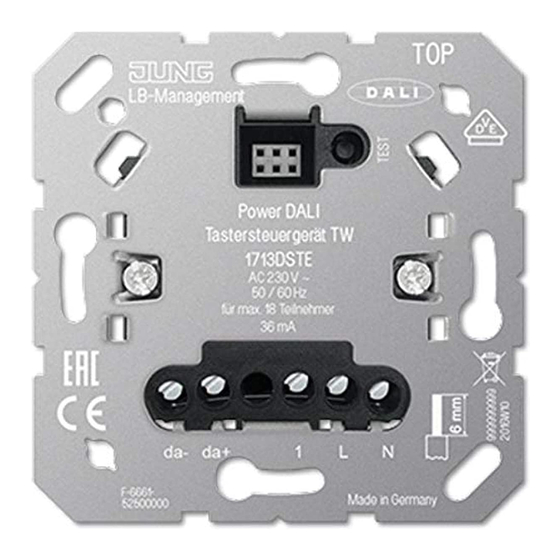

Art. no.: 1713DSTE
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
These instructions are an integral part of the product, and must remain with the end customer.
2
Intended use
–
Switching and brightness setting for luminaires with DALI interface
–
Setting the colour temperature for luminaires with DALI Device Type 8 for Tunable White
in accordance with IEC 62386-209
–
Mounting in appliance box according to DIN 49073
–
Operation with suitable cover from LB management
Since error-free interaction cannot be guaranteed in combination with other DALI controls,
it is thus not recommend.
Product characteristics
–
DALI supply for a maximum of 18 DALI subscribers
–
Parallel switching of up to 4 DALI control units with the option of supplying up to 72 DALI
subscribers
–
Storing of minimum brightness, coldest and warmest colour temperature
–
Switching on with the last set brightness/colour temperature or saved brightness/colour
temperature
–
With 2-channel button cover: Adjustment of the colour temperature via right rocker
3
Operation
These instructions describe operation with a 1-channel button cover. Operation with different
covers is described in the instructions for the cover in question. Operation using 2-wire or 3-wire
extension essentially corresponds to operation on the main device.
With a 2-channel button cover, the left rocker works like the 1-channel button cover. The
right rocker is used to directly set the colour temperature.
Switching the light
￭
Brief press on the button cover: Light is switched on or off at the last set brightness/colour
temperature or a saved brightness/colour temperature.
￭
Long press on the button cover at the bottom: Light is switched on at minimum brightness.
Adjusting the brightness
￭
Long press the button cover at the top or bottom.
Setting the colour temperature
￭
Press the button cover in the switched-on state at the top, bottom or over the entire sur-
face twice within 0.4 seconds (double-click). The light switches off and on again.
￭
Long press the button cover at the top or bottom.
82598913
J0082598913
1 / 6
08.08.2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung 1713DSTE
Summary of Contents for Jung 1713DSTE
- Page 1 LB management Power DALI push-button controller TW Power DALI push-button controller TW Art. no.: 1713DSTE Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
- Page 2 LB management Power DALI push-button controller TW After a further double click, the insert switches back to normal operation and signals this with a short switching off and on again. After one minute without operation, the insert also returns to normal operation. With a 2-channel button cover the right rocker is used to directly set the colour temperat- ure.
- Page 3 LB management Power DALI push-button controller TW Connecting and fitting the device Figure 1: Connection diagram with optional extensions DALI insert Cover interface with LED Button Test DALI subscriber 3-wire extension 2-wire extension Push-button, NO contact A 3-wire extension can only control one DALI insert. Central control is not possible. DALI cable: type, cross-section and routing according to the specifications for 250 V cables.
- Page 4 LB management Power DALI push-button controller TW ￭ When switching multiple DALI inserts in parallel, ensure correct polarity (Figure 3). Figure 3: Switching DALI inserts in parallel ￭ If multiple circuit breakers supply dangerous voltages to the device or load, couple the miniature circuit breakers or label them with a warning, to ensure disconnection is guaran- teed.
- Page 5 LB management Power DALI push-button controller TW ￭ To change the coldest colour temperature, press and hold the button Test for longer than one second. The LED flashes blue and the luminaire slowly starts to warm up at the coldest colour temperature (10,000 K).
- Page 6 LB management Power DALI push-button controller TW ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82598913 08.08.2019 6 / 6 J0082598913...
