1.

Introduction

1.1.

SAM HA1G16A Xplained Pro Introduction

The Atmel SAM HA1G16A Xplained Pro evaluation kit is a hardware platform to evaluate the Atmel
ATSAMHA1G16A.
The kit offers a set of features that enables the ATSAMHA1G16A user to get started with the SAM HA1
peripherals right away and to get an understanding of how to integrate the device in their own design.

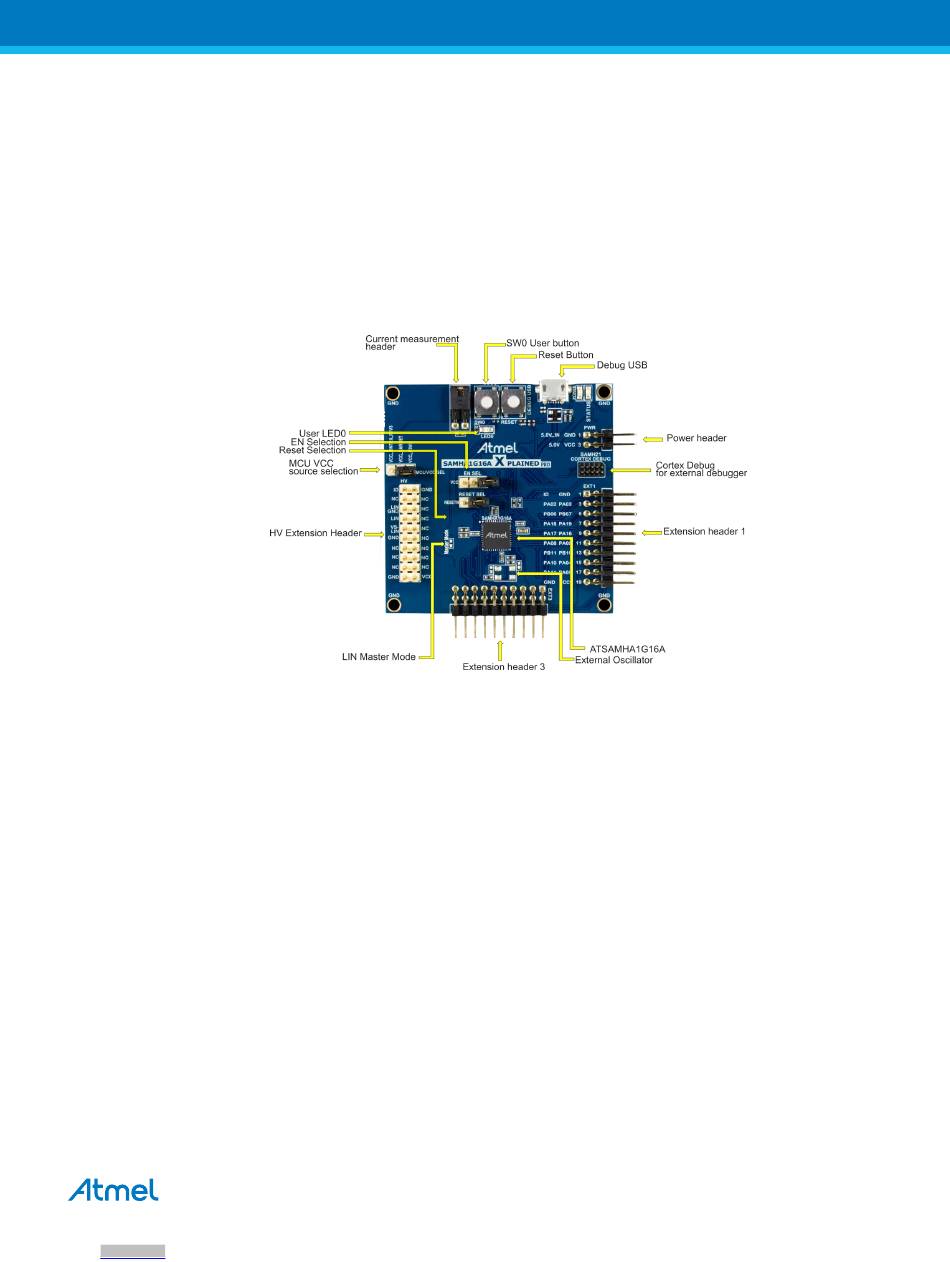

Figure 1-1. SAM HA1G16A Xplained Pro Evaluation Kit Overview
1.2.

SAM HA1G16A Xplained Pro Feature list

• SAMHA1G16A System in Package
• One mechanical reset button
• One mechanical programmable button
• One yellow user LED
• Two Xplained Pro extension headers
• One High-Voltage extension header
• Embedded Debugger
• USB powered
• Supported with application examples in Atmel Software Framework
Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from
– Auto-ID for board identification in Atmel Studio
– One yellow status LED
– One green board power LED
– Programming and debugging
– Data Gateway Interface: I
– Virtual COM port (CDC)
2
C, SPI and four GPIOs
