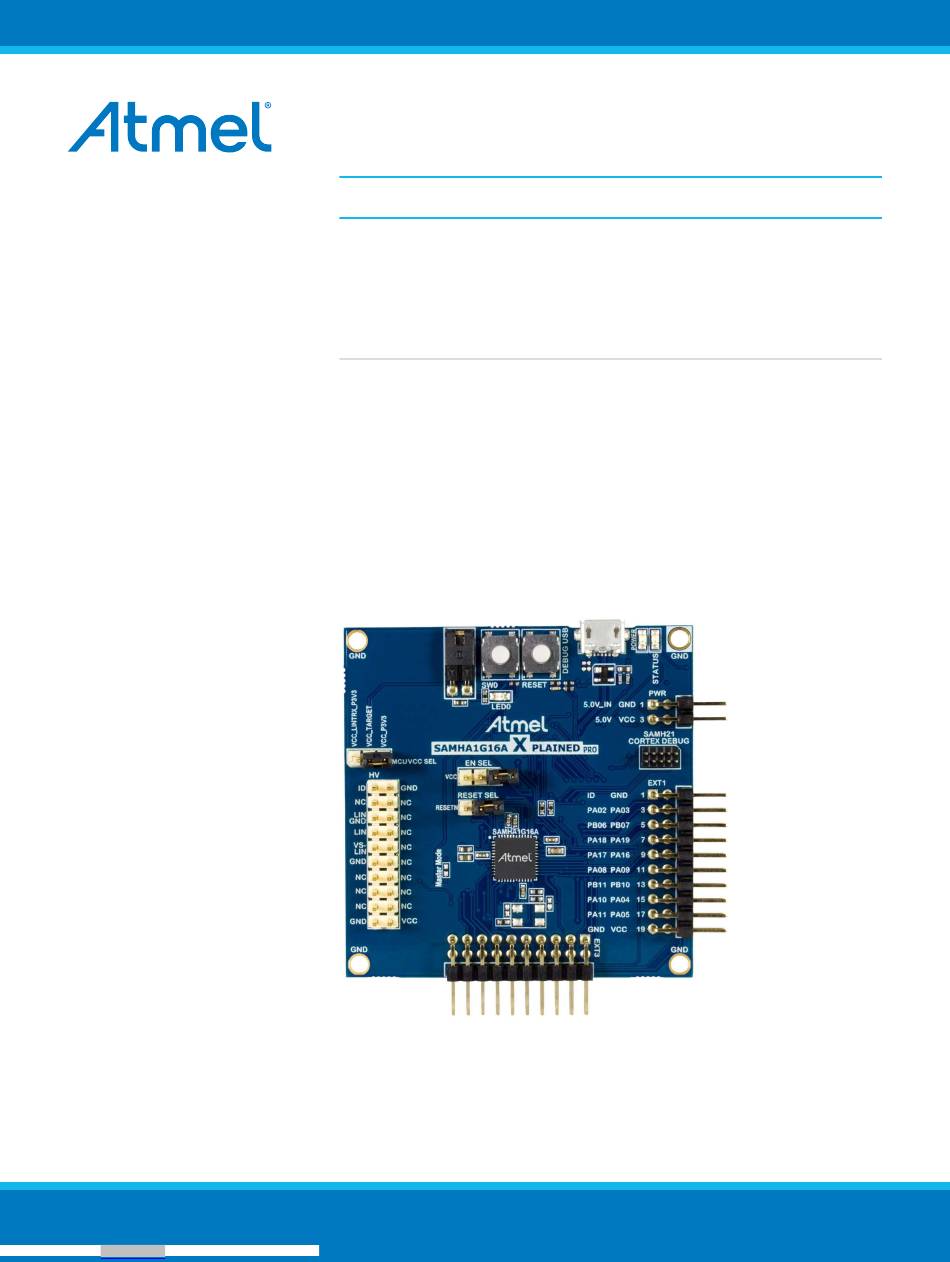

SAM HA1G16A Xplained Pro
USER GUIDE
Preface
®
The Atmel
SAM HA1G16A Xplained Pro evaluation kit is a hardware
platform to evaluate the ATSAMHA1G16A microcontroller.
Supported by the Atmel Studio integrated development platform, the kit
provides easy access to the features of the Atmel ATSAMHA1G16A and
explains how to integrate the device in a custom design.
The Xplained Pro MCU series evaluation kits include an on-board
Embedded Debugger, and no external tools are necessary to program or
debug the ATSAMHA1G16A.
The Xplained Pro extension kits offers additional peripherals to extend the
features of the board and ease the development of custom designs.
Atmel-9426A-SAM-HA1G16A-Xplained-Pro_User Guide-10/2016
Arrow.com.
Downloaded from
Advertisement
Table of Contents
Related Manuals for Atmel SAM HA1G16A Xplained Pro
Summary of Contents for Atmel SAM HA1G16A Xplained Pro
-
Page 1: Preface
ATSAMHA1G16A microcontroller. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the Atmel ATSAMHA1G16A and explains how to integrate the device in a custom design. The Xplained Pro MCU series evaluation kits include an on-board Embedded Debugger, and no external tools are necessary to program or debug the ATSAMHA1G16A. -
Page 2: Table Of Contents
1.2. SAM HA1G16A Xplained Pro Feature list..................3 2. Getting Started......................4 2.1. Xplained Pro Quick Start......................4 2.2. SAM HA1G16A Xplained Pro Design Documentation and relevant links........4 3. Xplained Pro......................6 3.1. Embedded Debugger........................6 3.2. Hardware Identification System....................7 3.3. -
Page 3: Introduction
1.1. SAM HA1G16A Xplained Pro Introduction The Atmel SAM HA1G16A Xplained Pro evaluation kit is a hardware platform to evaluate the Atmel ATSAMHA1G16A. The kit offers a set of features that enables the ATSAMHA1G16A user to get started with the SAM HA1 peripherals right away and to get an understanding of how to integrate the device in their own design. -
Page 4: Getting Started
, Windows 7, Windows 8, Windows 10, and Windows Server 2012. When the Xplained Pro MCU board is powered, the green power LED will glow and Atmel Studio will auto-detect the specific Xplained Pro MCU- and extension board(s) that are connected. Atmel Studio will present relevant information such as datasheets and kit documentation. - Page 5 3D plots, layer plots etc. • Hardware Users Guide in PDF format - PDF version of this User Guide. • SAM HA1G16A Xplained Pro in the Atmel store - Atmel Store link. Atmel SAM HA1G16A Xplained Pro [USER GUIDE] Atmel-9426A-SAM-HA1G16A-Xplained-Pro_User Guide-10/2016 Arrow.com.
-
Page 6: Xplained Pro
Atmel Data Visualizer is used to send and receive data through DGI. The EDBG controls two LEDs on SAM HA1G16A Xplained Pro; a power LED and a status LED. The table below shows how the LEDs are controlled in different operation modes. -
Page 7: Hardware Identification System
3600 Maximum Current [mA] uint16_t 3.3. Power Sources The SAM HA1G16A Xplained Pro kit can be powered by several power sources as listed in the table below. Atmel SAM HA1G16A Xplained Pro [USER GUIDE] Atmel-9426A-SAM-HA1G16A-Xplained-Pro_User Guide-10/2016 Arrow.com. Arrow.com. Arrow.com. -
Page 8: Xplained Pro Headers And Connectors
Table 3-3. Power Sources for SAM HA1G16A Xplained Pro Power Input Voltage Requirements Current Requirements Connector Marking External power 5V ±2% (±100mV) for Recommended USB host operation. minimum is 1A to be 4.3V to 5.5V if USB host able to provide enough... - Page 9 Xplained Pro Power Header The power header can be used to connect external power to the SAM HA1G16A Xplained Pro kit. The kit will automatically detect and switch to any external power if supplied. The power header can also be used as supply for external peripherals or extension boards.
- Page 10 Communication line to the ID chip on an extension board Ground LIN_GND GND of LIN SBC LIN-Bus signal Battery voltage VS Ground Power for extension board Atmel SAM HA1G16A Xplained Pro [USER GUIDE] Atmel-9426A-SAM-HA1G16A-Xplained-Pro_User Guide-10/2016 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
-
Page 11: Hardware User Guide
4.1.1. Xplained Pro Extension Headers The SAM HA1G16A Xplained Pro header EXT1 offers access to the I/O of the microcontroller in order to expand the board e.g. by connecting extensions to the board. This header is based on the standard... - Page 12 Shared Functionality 1 [ID] Communication line to the ID chip on an extension board. 2 [GND] Ground. 5 [LIN_GND] Ground. 7 [LIN] LIN Bus Atmel SAM HA1G16A Xplained Pro [USER GUIDE] Atmel-9426A-SAM-HA1G16A-Xplained-Pro_User Guide-10/2016 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 13 An angled 1x2, 100mil pin-header marked with MCU current measurement is located at the upper edge of the SAM HA1G16A Xplained Pro. All power to the ATSAMHA1G16A is routed through this header. To measure the power consumption of the device remove the jumper and replace it with an ammeter.
-
Page 14: Peripherals
4.2.1. Mechanical buttons SAM HA1G16A Xplained Pro contains two mechanical buttons. One button is the RESET button connected to the SAM HA1 reset line and the other is a generic user configurable button. When a button is pressed it will drive the I/O line to GND. - Page 15 RESET PB03 4.2.2. There is one yellow LED available on the SAM HA1G16A Xplained Pro board that can be turned on and off. The LED can be activated by driving the connected I/O line to GND. Table 4-7. LED Connection SAM HA1 Pin...
-
Page 16: Embedded Debugger Implementation
Virtual Com port interface over UART, an Atmel Data Gateway Interface over I C and SPI and it includes four of the SAM HA1 GPIOs. Atmel Studio can be used as a front end for the Embedded Debugger. 4.3.1. Serial Wire Debug The Serial Wire Debug (SWD) uses two pins to communicate with the target. - Page 17 Table 4-15. GPIO Lines Connected to the EDBG SAM HA1 Pin Function Shared Functionality PB03 GPIO0 PB16 GPIO1 EXT3 PB17 GPIO2 EXT3 PA01 GPIO3 EXT3 Atmel SAM HA1G16A Xplained Pro [USER GUIDE] Atmel-9426A-SAM-HA1G16A-Xplained-Pro_User Guide-10/2016 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
-
Page 18: Hardware Revision History And Known Issues
5.1. Identifying Product ID and Revision The revision and product identifier of Xplained Pro boards can be found in two ways; either through Atmel Studio or by looking at the sticker on the bottom side of the PCB. By connecting an Xplained Pro MCU board to a computer with Atmel Studio running, an information window will pop up. -
Page 19: Revision History
Please note that the following page numbers referred to in this section refer to the specific revision mentioned, not to this document. Revision No. History 9426A-10/15 • Initial release Atmel SAM HA1G16A Xplained Pro [USER GUIDE] Atmel-9426A-SAM-HA1G16A-Xplained-Pro_User Guide-10/2016 Arrow.com. Arrow.com. Arrow.com. Arrow.com. -
