Sunricher SR-2309PRO-5C Instructions

Multi-addresses PRO DALI DT8 LED Controller
2
Important: Read All Instructions Prior to Installation

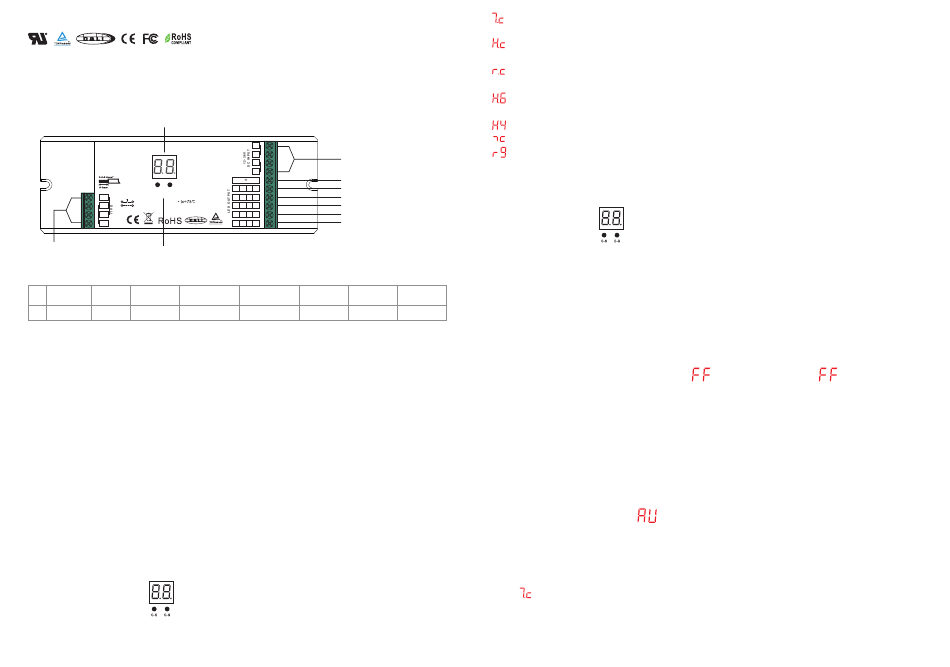

Function introduction

Digital display
DALI DT8 Controller
PRI:
Uin=12-36VDC
Iin=25.5A
SEC:
Uout=5x(12-36)VDC
Iout=5x5A
Pout=5x(60-180)W
0-6 0-9
DA
PUSH DIM
L DA
DA N DA ta=-20℃-+50℃
DA
DA
2 groups DALI/Push
Manual set buttons
signal input & output

Product Data

Input Output Output
No. Remarks
Voltage
Current Power
1 5x5A Constant voltage
12-36VDC 5x(60-180)W
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• Multi-addresses enabled DT8 control gear
• Multi-devices integrated in one control gear
• Multi-functional, 7 in 1: Tc, RGBWAF, XY, 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
• DALI address manually assignable through manual set buttons and showed on the display
• Can be set as different device types: single-address types or multi-addresses types
• Single-address device types: Tc, RGBWAF, XY
• Multi-addresses device types: 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
• 5 Channels constant voltage output
• Control of five PWM outputs via DALI device type 8
• Color control as defined in the DALI specification device type 8
• Supports DT8 device commands, compatible with universal DALI masters that support DT8 commands
• Configuration via DALI master USB interface
• Color temperature and RGB color control through push dim mode even if without DALI
• Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Operation

1. Select a DALI Device Type

1.1. Press and hold down both buttons until digital display flashes, then release the button.

1.2. Keep clicking the 2nd button, you will get the 7 device types one by one as follows:

V-
V-
DC power input
V+
V+
Common Anode Output(+)
CH 1:1/WW/R/R output(-)
1- WW- R- R-
CH 2:2/CW/G/G output(-)
2- CW- G- G-
CH 3:3/WW/B/B output(-)
3- WW- B- B-
CH 4:4/CW/W/WW output(-)
4- CW- W- WW-
CH 5:5/NC/NC/CW output(-)
5- NC NC CW-
NC=No Connection
DALI Dimming Ambient
Size(LxWxH)
Consumption Range Temperature
170x59x29mm -20℃ ~ +50℃
2mA 0.1%-100%
, means 2 Tc color type devices integrated in one control gear, which can control 2 groups of tunable white LED
70040048
separately using 2 DALI addresses under this mode.
, means XY & Tc color type devices integrated in one control gear, which can control RGB & CCT LED separately
using 2 DALI addresses under this mode.
, means RGBWAF & Tc color type devices integrated in one control gear, which can control RGB & CCT LED
separately using 2 DALI addresses under this mode.
, means XY & DT6 type devices integrated in one control gear, which can control RGB & W LED separately using 2
DALI addresses under this mode.
, means XY coordinate color type, which can control RGB LED using 1 DALI address under this mode.
, means Tc color type, which can control tunable white LED using 1 DALI address under this mode.
, means RGBWAF color type, the device can control RGB+CCT LED using 1 DALI address under this mode.
1.3. Select a device type you would like and then press and hold down both buttons until digital display stops
flashing to confirm the selection.

2. Setting DALI address

2.1. Press and hold down any of the two buttons until numeric digital display flashes, then release the button.
2.2. Click any of the two buttons once to select a digit, click again to change the digit until the desired DALI
address appears. Click first button to set "tens" position and second button to set "units" position. The address
can be set from 00~63.
2.3. Then press and hold down any of the 2 buttons until the numeric digital display stops flashing to confirm the
setting.
Note: DALI address can be manually assigned from 00-63-FF, by factory defaults, no DALI address is
assigned for the dimmer, and the display shows
dimmer to factory defaults.
3. Once an address is selected, depending on the device type selected, the control gear may occupies 2
consecutive addresses or 1 address. For example, if the control gear is addressed to 22 on the display,
when the device type is multi-addresses type, the control gear occupies address 22 & 23, when the
device type is single-address type, the control gear occupies address 22.

4. DALI Address Assigned by DALI Masters

DALI address can also be assigned by DALI Master controller automatically, please refer to user manuals of
compatible DALI Masters for specific operations.
Note: The digital display will show
device type is multi-addresses type, the control gear will be discovered as 2 separate devices.

5. Push Dimmer Mode

While connected with an AC push switch, the digital display will show "PD" which means Push Dimmer Mode,
operations under Push Dimmer Mode are as follows:
While device type is selected, only the 1st group tunable white LED will be controlled by the push switch,
Click the button to switch ON/OFF
Ÿ
Ÿ Press and hold down the button to increase or decrease light intensity to desired level and release it, then
repeat the operation to adjust light intensity to opposite direction. The dimming range is from 1% to 100%.
Double click the button to switch between brightness mode and color temperature mode.
Ÿ
Ÿ Press and hold down the button to change color temperature under color temperature mode.
. Setting DALI address as
When the DALI master is assigning addresses. When the
will reset the
