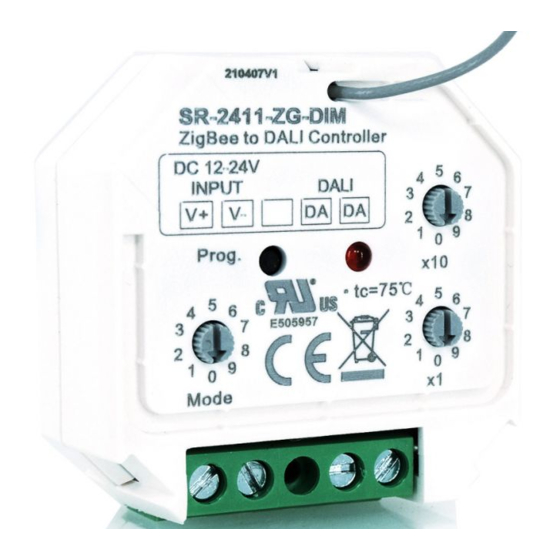

Sunricher SR-2411-ZG-DIM Instructions

ZigBee to DALI DT6 Controller
Important: Read All Instructions Prior to Installation

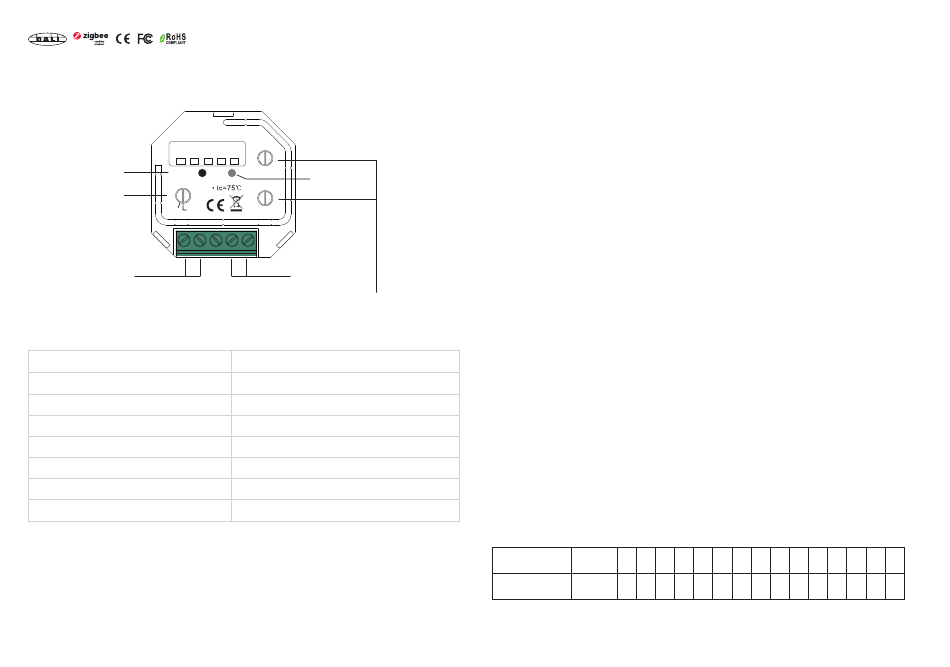

Function introduction
ZigBee to DALI Controller
DC 12-24V
INPUT
V+ V-
Program key for factory
reset the controller Prog.
Rotary Switch to select
Group or Address
control to DALI circuit
Group Add.
DC12-24V power input
Product Data
Input signal
Radio frequency
Output
Power Supply
DALI Current Consumption
Operating temperature
Relative humidity
Dimensions(LxWxH)
• ZigBee to DALI DT6 Controller based on ZigBee 3.0
• Receives ZigBee signal and outputs DALI signal to DALI line, 12-24VDC power supply
• Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other
international incorporations
• ZigBee end device that supports Touchlink commissioning
• Supports zigbee green power and can learn to max. 20 zigbee green power remotes
• Can directly pair to a compatible ZigBee remote through Touchlink
• Compatible with universal ZigBee gateway products
• Supports self-forming zigbee network without coordinator
• Enables to add devices to the self-formed zigbee network
09.2411ZGDIM.04791
5
DALI
4 6
OUTPUT 3 7
10*(0~9) for setting
DA DA 2 8
1 9
0
tens position
x10
LED indicator
5
4 6
1*(0~9) for setting
3 7
2 8 units position
1 9
0
x1
DALI signal output
Rotary switches for setting DALI Group number (0-15) or
Address number (0-63) to be controlled, the number equals to
tens position plus units position
ZigBee/Push
2.4GHz
DALI signal
12-24VDC
<4mA
0-40°C
8% to 80%
45.5x45x20.3mm
• Compatible with universal ZigBee dim remotes
• DALI bus current consumption <4mA
• Enable to select Group control or Address control to DALI line by a rotary switch
• Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
• Enable to control all devices on DALI line via broadcast
• Enable to select any DALI Group (0-15) or DALI Address (00-63) to control by rotary switches
• Each DALI line can install multiple controllers for multi control points
• Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
ZigBee Clusters the device supports are as follows:
Input Clusters
• 0x0003: Identify • 0x0004: Groups
• 0x0000: Basic
• 0x0006: On/off • 0x0008: Level Control
Output Clusters
• 0x0019: OTA
Operation
1. Select DALI Address/Group Control Mode:
1) A rotary switch is used to select Address/Group control mode.
2) When the rotary switch arrow is at Add. position, address control mode is selected.
3) When the rotary switch arrow is at Group position, group control mode is selected.
2. Select DALI Address to be Controlled:
1) When Address control mode is selected, use the two rotary switches for setting address number (00-64) to
select the DALI address (00-63) you would like to control, the number equals to tens position plus units
position.
2) Set the address number as 0, all DALI devices on the circuit will be controlled through broadcast.
3) Set the address number as X except 0 (01-64), control gear with DALI address X-1 will be controlled.
Note: if X is set as 64, control gears with DALI address 63 will be controlled by the controller.
3. Select DALI Group to be Controlled:
1) When Group control mode is selected, use the two rotary switches for setting group number to select the
DALI group (0-15 selectable) you would like to control, the number equals to tens position plus units position.
2) This DALI controller enables on/off and dimming commands to be sent to 1 Group of devices on the DALI
circuit.
3) When group number is set as 0, all DALI devices on the circuit will be controlled through broadcast.
4) When group number is set as X except 0 (1-15), the controller will control DALI Group X-1.
Note: Please first group all DALI control gears on the circuit by a master controller.
Please refer to the detailed Group setting table as follows:
Group Number
0 1 2 3
Setting
DALI Group
Broadcast 0 1 2
Selected
4. This ZigBee device is a wireless receiver that communicates with a variety of ZigBee compatible
systems. This receiver receives and is controlled by wireless radio signals from the compatible ZigBee
system.
• 0x0005: Scenes
• 0x0b05: Diagnostics
4 5 6 7 8 9 10 11 12 13
3 4 5 6 7 8 9 10 11 12
14 15
13 14
