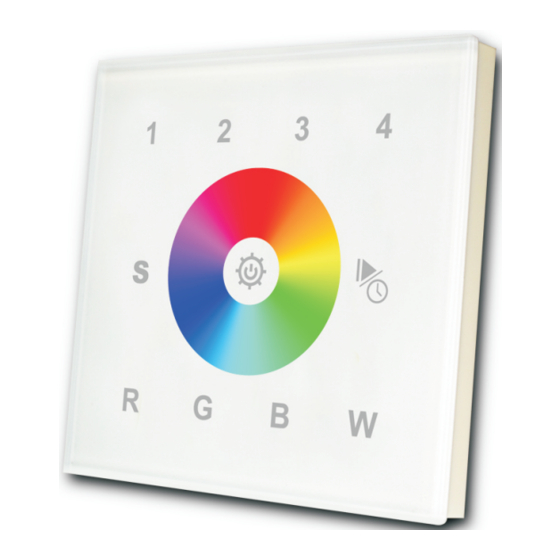

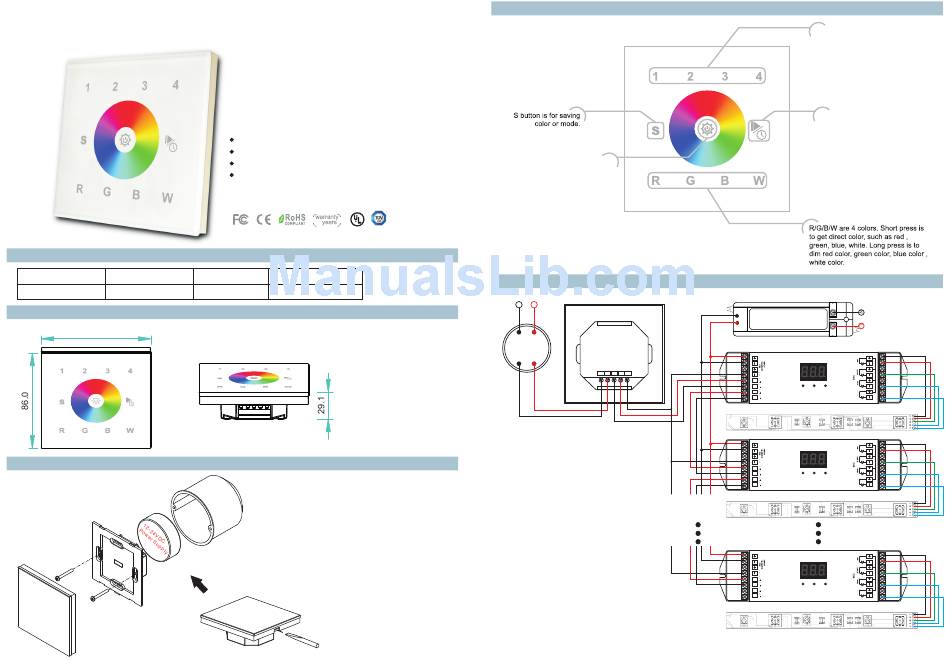

Wall mounted RGB/W DMX512 controller
Parameter
Operation Voltage
Part No.
SR-2812
12-24VDC
Product Size
86.0
Installation
SR-2812
Feature
Touch sensitive
Glass interface(White & Black)
Control 4 zones synchronously and separately
Save up to 4 color in each zone
5
ISO9001:2000
DIMENSIONS
OUTPUT
ø/h (mm)
DMX512 Signal
86x86x29.1
Button introduction
Short press: switch on/off of
lighting
Long press:to dim brightness
of any zone
Wiring diagram
110V-230VAC
N
L
Power Supply
12-24VDC
SR-2812
GND
Vin
D-
D+
GND
Button 1,2,3,4 are zone numbers
Long press switch on/off each zone.
Short press is to choose a zone.
To synchronize several zones, short
press 2 or more buttons one after
another.
Short press: starting running mode
or pause mode, there are 10 bulid-in
modes
Long press:to adjust running speed.
Power Supply
110V-230VAC
12-36VDC
SR-2102B
DMX512 Decoder
SR-2102B
DMX512 Decoder
SR-2102B
DMX512 Decoder

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR-2812 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunricher SR-2812

  • Page 1 Wall mounted RGB/W DMX512 controller Button introduction SR-2812 Button 1,2,3,4 are zone numbers Long press switch on/off each zone. Short press is to choose a zone. To synchronize several zones, short press 2 or more buttons one after another. Short press: starting running mode...
  • Page 2 Operation Zone number a.how to operate zone button After connect well with DMX decoders, please set the DMX decoders address as below: DMX decoder’s address 001 is controlled by Zone 1 indicator DMX decoder’s address 005 is controlled by Zone 2 DMX decoder’s address 009 is controlled by Zone 3 DMX decoder’s address 013 is controlled by Zone 4 Short press zone number is to choose a zone, long press zone...
