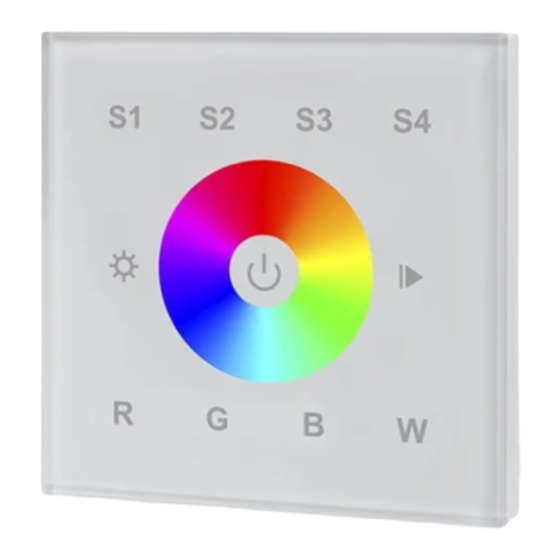

Sunricher SR-ZG9001T-RGBW Manual

RGBW Wall Mounted Touch ZigBee Remote Controller
Important: Read All Instructions Prior to Installation

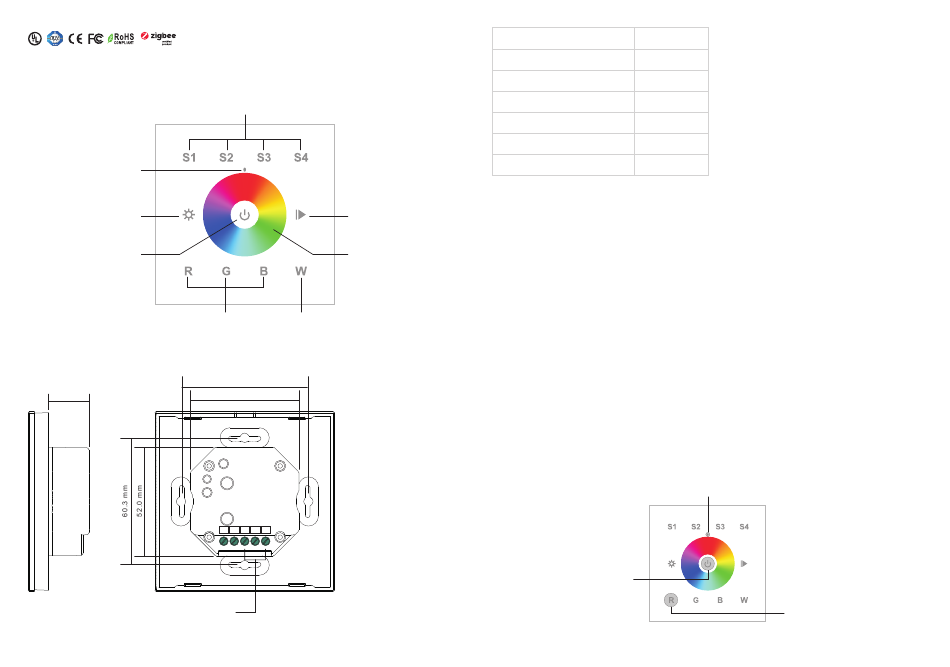

Function introduction
Scene buttons, press and hold down to
save a scene, click to recall it
LED indicator
Press and hold down to
increase/decrease light
intensity of the paired
lighting devices
All ON/OFF button, click to
switch ON/OFF all paired
lighting devices
Press and hold down to
search and pair to ZigBee
network or factory reset the
dimmer switch
R, G, B channels, click to
select corresponding channel
19.4 mm
AC Power input
Click to play/pause 1 built-
in color changing effect,
press and hold down to
speed up/down the effect
RGB color wheel, slide to
select RGB colors
Note: This remote
supports 1 group for
binding max. 30 lighting
devices and enables to
save 4 scenes for each
Click to get white light
group.
mixed by RGB colors
Front side
60.3 mm
52.0 mm
ZigBee Controller
L N
Back side
Product Data
09.ZG2TC4.04875
Protocol
Input Voltage
Transmission Frequency
Transmission Range (free field)
Protection Type
Dimming Range
Dimensions
ZigBee Clusters Supported by This Remote Are As Follows:
Input clusters:
• Basic • Power Configuration
Output clusters:
• Identify • Scenes
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Operation
1.This ZigBee RGB remote is a wireless transmitter that communicates with a variety of ZigBee
compatible systems. This transmitter sends wireless radio signals that are used to remotely control a
compatible system.
2.This ZigBee remote supports 1 group for binding max. 30 lighting devices and enables to control RGB
ZigBee lighting devices.
3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)
Step 1: Remove the remote from
previous zigbee network if it has
already been added to it, otherwise
pairing will fail. Please refer to the
part "Factory Reset Manually".
Step 3: Press and hold down until
LED indicator turns on.
• ZigBee RGBW remote based on ZigBee 3.0
ZigBee 3.0
• Full touch glass interface, smooth RGB color and
100-240VAC
light intensity control
• Enables to pair ZigBee lighting devices via touchlink
2.4GHz
commissioning without coordinator
30m • Supports find and bind mode to pair with ZigBee
lighting devices
IP20
• Supports 1 group for binding max. 30 lighting devices
• 2.4 GHz global operation
0.1%-100%
• Transmission range up to 30m
86x86x29.1mm
• Compatible with universal ZigBee Gateway products
• Compatible with universal RGBW ZigBee lighting
devices
• Identify • Diagnostics
• On/off • Level control • Color control
LED indicator
• Ota
Step 2: From your zigbee
controller or hub interface, choose
to add device or accessory and
enter Pairing mode as instructed
by the controller.
Step 4: Immediately short press to
search nearby network, indicator
flashes every 1 second, 20 seconds
timeout if there is no network.
Indicator will then blink 5 times
quickly for successful pairing.
