Sunricher SR-2833PAC Manual

RF Push-button Coupler
Important: Read All Instructions Prior to Installation

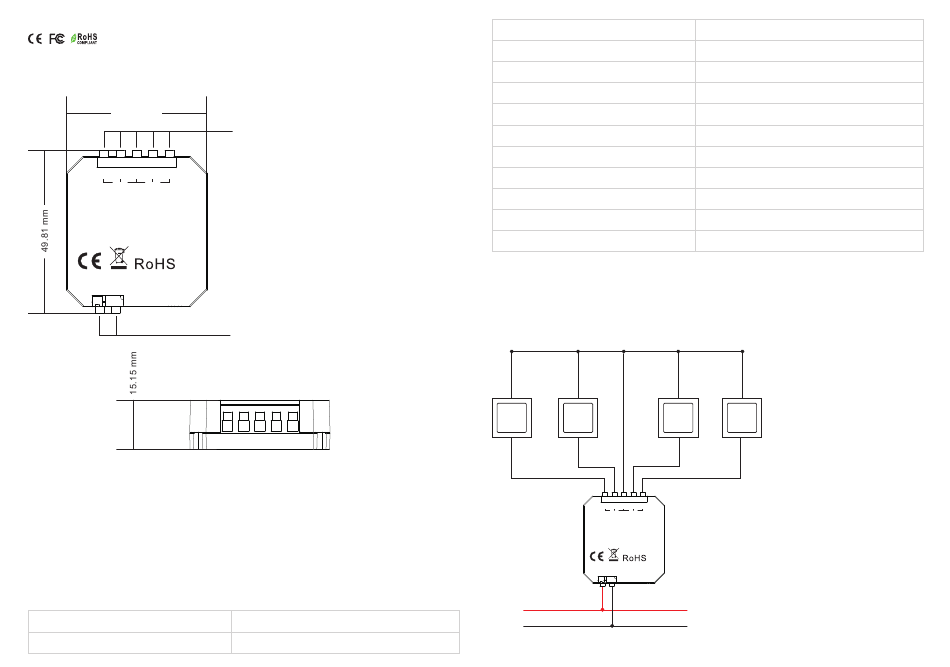

Function introduction
43.00 mm
OFF ON COM OFF ON
Z1 Z2
RF Push-Button Coupler
Input:100-240VAC ,50/60Hz
L N
Product Description
The 2-zone RF push-button coupler is a 4-channel push-button interface for simple wall/flush type box installation. You
can continue to use existing switches, irrespective of the manufacturer. It is a wireless transmitter that communicates
with RF receivers. The coupler adopts AC100-240V power input to power a built-in transmitter. This transmitter sends
wireless radio signals that are used to remotely control compatible receivers.
It enables to learn and control up to 2 zones of RF receivers with 4 push buttons or 2 push buttons.
Safety & Warnings
• DO NOT install the device with power applied.
• DO NOT expose the device to moisture.
Product Data
Protocol
Transmission Range
4 channels push button interface
100-240VAC Power Input
RF
10-30m (typical)
70010093
Radio Frequency
Power Supply
Power Consumption
Number of Push Buttons
Connector Type
Wire Size
Dimensions
Operating Temperature
Working Humidity
Waterproof Grade
Warranty
Wiring Diagram
Notes for the diagrams:
L - terminal for live lead input
N - terminal for neutral lead input
ON, OFF - terminals for push buttons
COM - common terminal for grounding to the push buttons connected to the coupler
1) With 4 Push Buttons to control up to 2 zones
PUSH PUSH
Button 4 Button 3
OFF
RF Push-Button Coupler
Input:100-240VAC ,50/60Hz
L
L
N
Note: 1) Number of push buttons connected can be 2 (controls 1 zone) or 4 (controls 2 zones).
2) Supported switch types: 1-gang 1 way, 2-gang 1 way, 3-gang 1 way, 4-gang 1 way.
868/869.5/434MHz
100-240VAC, 50/60Hz
Less than 0.6W
0.2 - 1.5mm2 (AWG28 - AWG14)
49.8x43x15.1mm
-20 ℃ ~ +50 ℃
10% ~ 95% RH non-condensing
PUSH PUSH
Button 2 Button 1
ON COM OFF ON
Z1 Z2
N
4
Push-In
IP20
5 years
