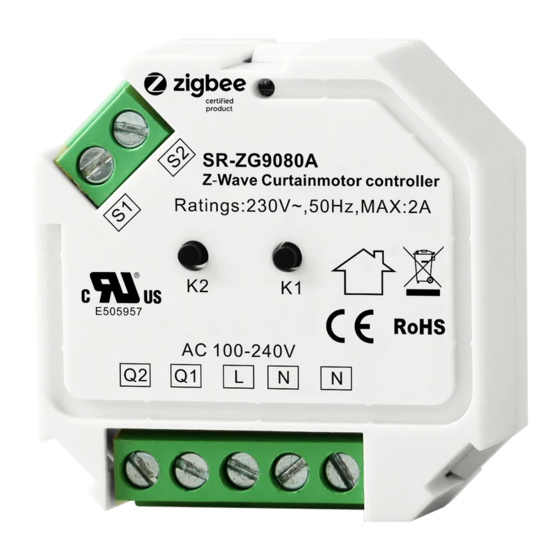

Sunricher SR-ZG9080A Manual

Zigbee Curtain Motor Controller

Important: Read All Instructions Prior to Installation

Function introduction

Switch input
Program button for network
pairing, touchlink, factory
reset of the controller
Q2
Load output

Product Data

Zigbee Protocol Input Voltage Output Voltage Max. Load Current
Zigbee 3.0
AC100-240V AC100-240V
• Zigbee curtain motor controller based on latest ZigBee 3.0 protocol
• Full support for various curtain types: roller blinds, shutter blinds, drapes, etc.
• Controlled by smart app or directly by zigbee remote
• Local control with external switches even if not added to a zigbee network
• Accurate control, supports both ON/OFF and level control
• ZigBee end device that supports Touchlink commissioning
• Supports self-forming zigbee network without coordinator
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power feature and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products
• Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Operation

1.Do wiring according to connection diagram correctly.
2.This ZigBee device is a wireless receiver that communicates with a variety of ZigBee compatible
systems. This receiver receives and is controlled by wireless radio signals from the compatible ZigBee
system.
Curtain Motor
Controller
Ratings:230V~,50Hz,MAX:2A ( )
Calibration button
K2 K1
AC 100-240V
Q1 L N N
AC power input
Operating
Relative Humidity
Temperature
2A 0 to 40°C 8% to 80%

3. Positioning Calibration

09.ZG9080A.04282
Calibration is a process during which a curtain motor controller learns the position of the limit switches and a
motor characteristic. Calibration is mandatory. Connect the controller to the motor according to wiring diagram,
the calibration for different types of curtain are as follows:
1. Roller blinds and drapery type: short press button K1 twice, calibration starts automatically.
Curtain Motor
Controller
Ratings:230V~,50Hz,MAX:2A (
K2 K1
AC 100-240V
Q2 Q1 L N
N
L
2. Shutter blinds type curtain: short press button K1 three times, calibration starts automatically.
Ratings:230V~,50Hz,MAX:2A (
K2
Dimension (LxWxH)
Q2 Q1
45.5x45x20.3mm
N
L
Note: to control another curtain motor, positioning calibration shall be done again.

4. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)

Step 1: Remove the device from previous zigbee network if it has already been added to, otherwise pairing will
fail. Please refer to the part "Factory Reset Manually".
Step 2: From your ZigBee Controller or hub interface, choose to add device and enter Pairing mode as
instructed by the controller.
Step 3: Reset power of the device to set it into network pairing mode, which lasts for 15 seconds,
once timeout, repeat this step.
)
N
Calibration:
short press
twice
Roller Blinds
Curtain Motor
Controller
)
K1
AC 100-240V
L N N
Calibration: short
press three times
Shutter Blinds
Curtain Motor
Controller
Ratings:230V~,50Hz,MAX:2A ( )
K2 K1
AC 100-240V
Q2 Q1 L N N
N
L
Drapes
Step 4: There shall be response from the
motor that the controller is added to the
network successfully. Then the device will
appear in your hub's menu and can be
controlled through controller or hub interface.
