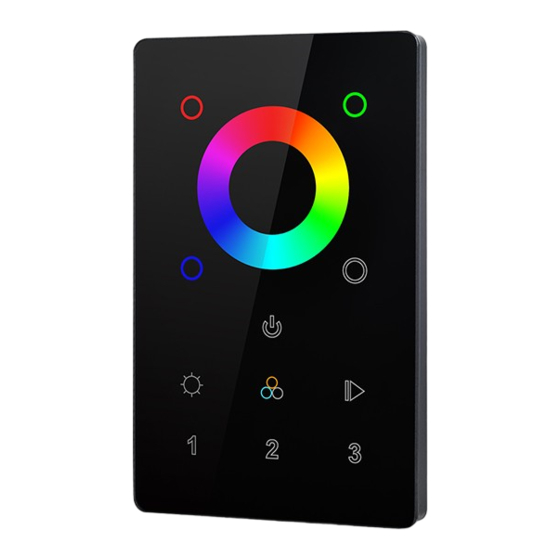

Sunricher SR-2820 Quick Manual

RF RGBW Wall Mounted Controller
Important: Read All Instructions Prior to Installation

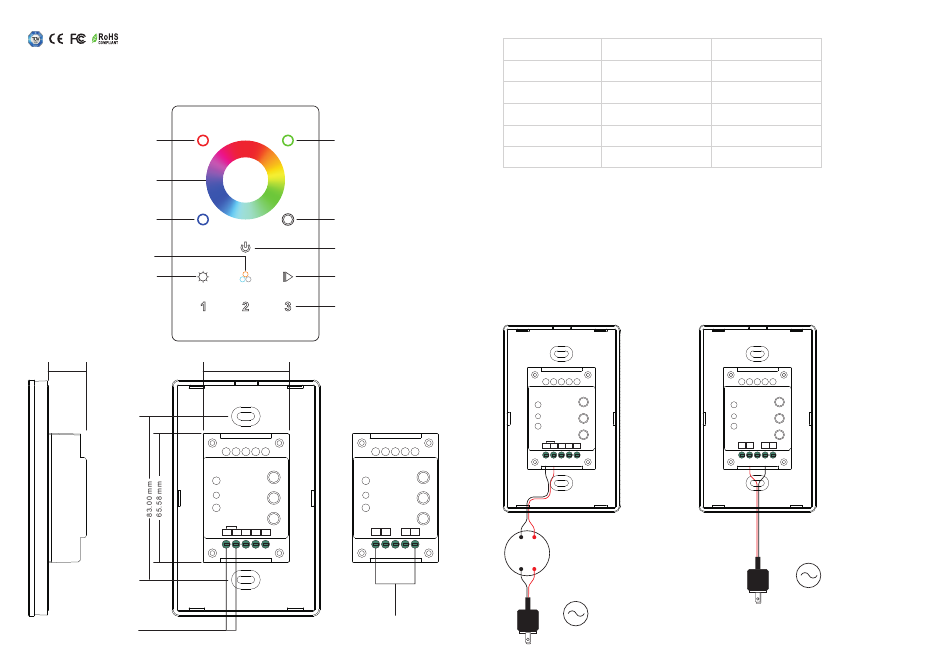

Function introduction
Red channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
Touch color wheel, touch to
select R/G/B color
Blue channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
Click to select Warm White,
Natural White and Cool White
mixed by RGB colors
Press and hold down to
increase/decrease light
intensity
19.4 mm
DC Power input
Green channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
White channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
Click to switch on/off
Click to play / pause the 10 built-in
effects, Press and hold down to
speed up/down the running effects
Click to choose zone, Press
and hold down to turn Off/On
corresponding zone
43.58 mm
DC Version AC Version
RF Wall Panel RF Wall Panel
Controller Controller
DC INPUT
AC INPUT
V- V+ L L
AC Power input
Back side
Product Data
09.280U3.04174
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
• Touch sensitive
• Glass interface(white & black)
• Compatible with all universal series RF receivers
• Radio frequency: 916.5MHz
• Control RGBW color
• Control 3 zones synchronously and separately
• Waterproof grade: Ip20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Wiring diagram
DC Version
RF Wall Panel
Controller
DC INPUT
V- V+
N N
12-24VDC
PSU
AC Power
50/60Hz
AC 100-240V
DC Version AC Version
RF signal RF signal
12-24VDC 100-240VAC
20 mA 20 mA
0-40°C 0-40°C
8% to 80% 8% to 80%
75x120x29.1mm 75x120x29.1mm
AC Version
AC Version
RF Wall Panel
Controller
AC INPUT
L L N N
AC Power
50/60Hz
AC 100-240V
