Rf rgb programmable led controller

Advertisement

RF RGB Programmable Led Controller
Model:SR-2810W with SR-1007 Series

Parameter

Remote
Operation Voltage
Part No.
SR-2810W
4.5VDC
Receiver
Iuput Voltage
Part No.
SR-1007FA
12-36VDC
SR-1007FA3
12-36VDC
SR-1007FA7
12-36VDC

Product Size

120.0
Programmable
Control 4 zones
RF Remote control
RGB & Mixed White color
3 Running modes
Operation
DIMENSIONS
Frequency
ø/h (mm)
load 3pcs 7 AAA (1.5V)
434MHz/868MHz
55x120x17
Current
Output
4x5A
4x(60-180)W
Constant voltage
4x350mA
4x(4.2-12.6)W
4x700mA
4x(8.4-25.2)W

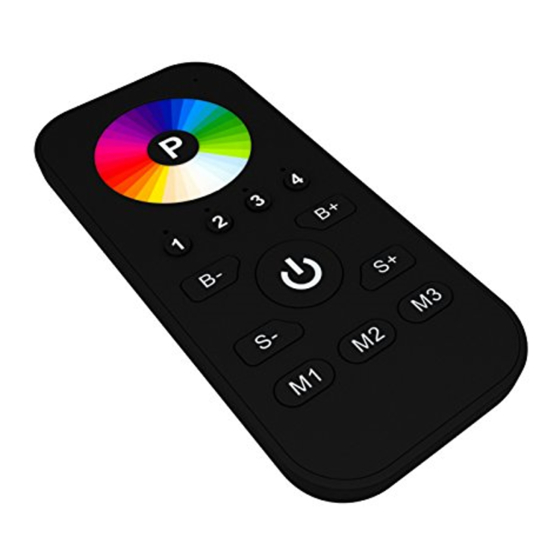

Brief introduction of buttons

1-4 zones
Short press: choose zone
Long press: switch on/off
Fade running mode

Wiring diagram

1)Receiver Connection Diagram for Single Unit
2)
Receiver
Connection Diagram for Multiple Units
Remarks
batteries
Remarks
Constant current
Constant current
Programmable button
B
B+
Brightness down
S-
S+
Speed down
M1
M2
M3
Power Supply
110V-230VAC
12-36VDC
SR-1007FA
Power Supply
Note:
110V-230VAC
12-36VDC
One receiver can work with 1-8pcs SR-2810W
One SR-2810W control multiple receivers
The power supply chosen must be 20% higher than the actual load
SR-1007FA
SR-1007FA
SR-1007FA
Indicator: indicate the state of
remote control
Color wheel, including white mixed by RGB
Brightness up
ON/OFF button
Speed up
Mix running mode
Step running mode

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR-1007 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunricher SR-1007 Series

  • Page 1 RF RGB Programmable Led Controller Brief introduction of buttons Model:SR-2810W with SR-1007 Series Indicator: indicate the state of remote control Programmable button Color wheel, including white mixed by RGB 1-4 zones Short press: choose zone Long press: switch on/off Brightness up...
  • Page 2 Operation 1.Learning receivers ID to remote a. Press learning button on the receiver (the indicator will be on) b. Choose a zone number on the remote c. Touch the color wheel Note: The remote must be on before learning ID Enable to assign multiple receivers to the same zone number, those receivers will be controlled synchronously.
