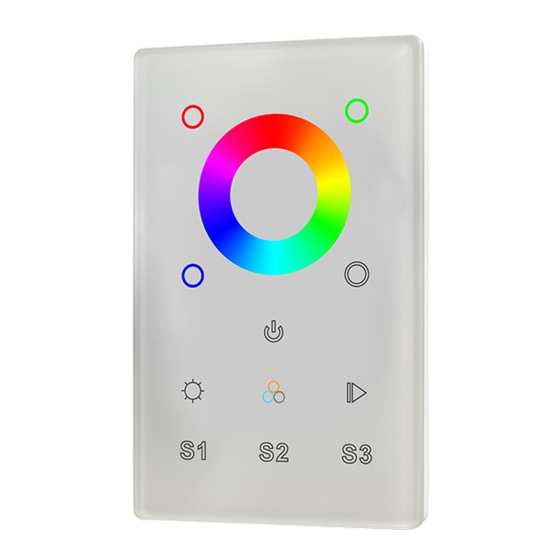

Sunricher SR-2300TR-G3-RGBW-US Quick Start Manual

DALI RGBW Touch Controller
Important: Read All Instructions Prior to Installation
Function introduction
Red channel: click to turn ON/OFF,
press and hold down to
increase/decrease light intensity
Blue channel: click to turn ON/OFF,
press and hold down to
increase/decrease light intensity
ON/OFF button
Brightness button, press and hold
down to increase/decrease light
intensity
19.4 mm
Green channel: click to turn ON/OFF,
press and hold down to
increase/decrease light intensity
RGB color wheel
White channel: click to turn ON/OFF,
press and hold down to
increase/decrease light intensity
Click to get CW, NW, WW
mixed by RGB
Play/Pause button, click to
play/pause running effects, press
and hold down to speed up/down
3 light zones, click to select, press
and hold down to turn ON/OFF
Front side
43.58 mm
Rotary switches for setting start
DALI address number (0-63),
the number equals to tens
position plus units position
0 1
9
8 2
1*(0~9) for setting
(x1)
7 3
units position
6 4
5
DALI Wall Panel
Controller
0 1
9
10*(0~9) for setting
8 2
(x10)
7 3 tens position
6 4
5
D1 D1 D2 D2
DALI signal output
Back side
Product Data
09.230WU6.04158
Output
Power Supply
Operation Current
Operating temperature
Relative humidity
Dimensions
Waterproof grade
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Wiring diagram
0 1
9
8
(x1)
7
6
5
DALI Wall Panel
Controller
0 1
9
8
(x10)
7
6
5
D1 D1 D2 D2
D2 D1
DALI BUS
• Touch sensitive.
DALI signal
• Glass interface(white & black).
• Comply to DALI standard protocol IEC 62386-102, IEC
Supply By DALI Bus
62386-207 and in compliance with DALI products from
4mA
other international incorporation.
• 3 light zones are available for switch, dimming and RGB
0-40°C
color control, each zone can control 4 DALI addresses.
• Enable to set start DALI address number (0-63) for the 4
8% to 80%
zones by rotary switches on the back.
75x120x29.1mm
• Built-in 8 Color Sequences
Ip20
2
3
4
2
3
4
L
V+
12V/24V/36V
N
CV PSU
V-
G
AC Power
50/60Hz
V+ V+
Connect with RGBW LED Strip
R- R-
G- G-
B- B-
W- W-
V+ V+
Connect with RGBW LED Strip
R- R-
G- G-
B- B-
W- W-
