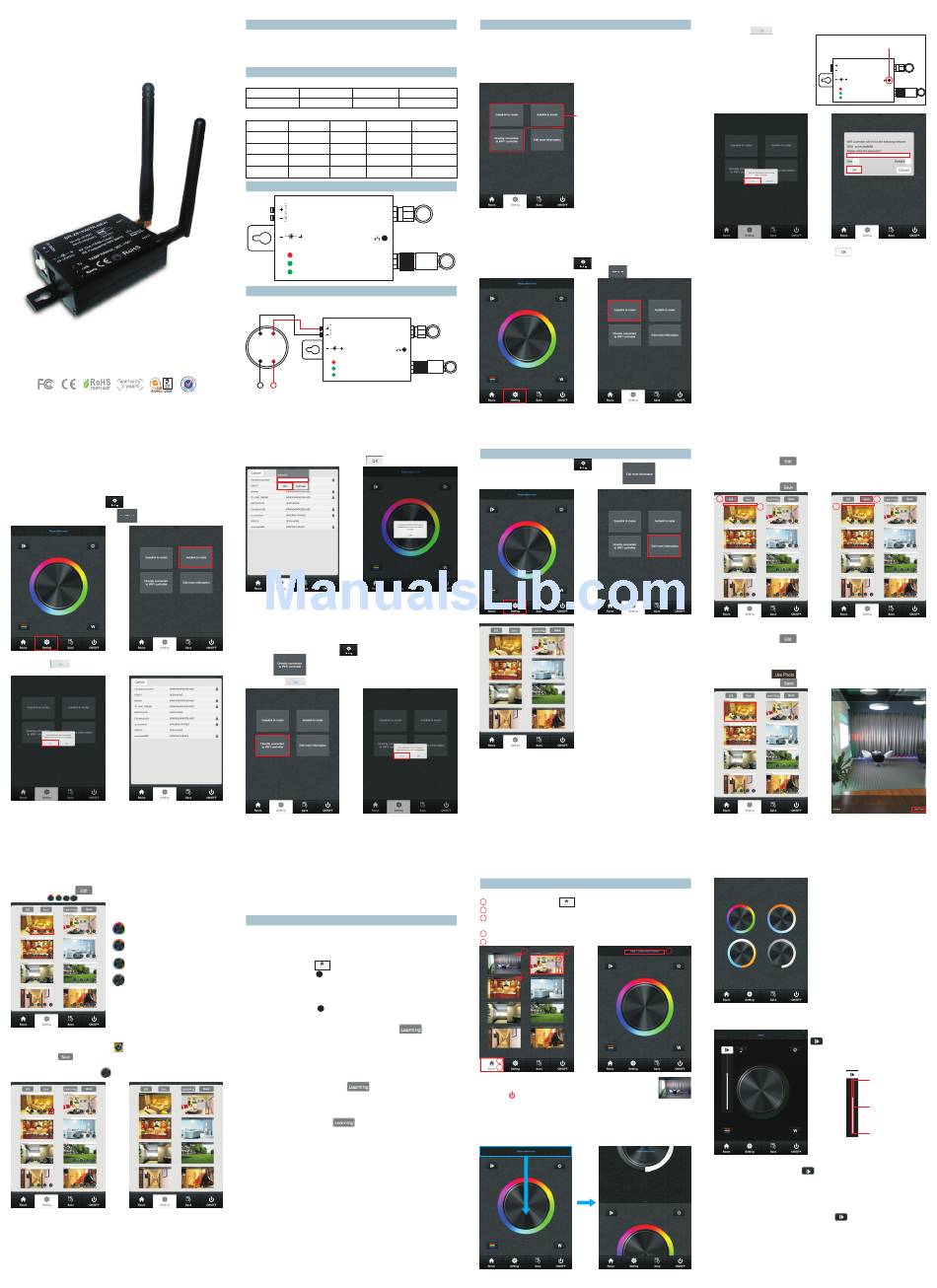

Sunricher SR-1009FA User Manual

RF-WIFI transmitter(convertor/controller)
for SR-1009XX
SR-2818WITR-NEW
1

Autolink to router

Most popular way when need to control LED lighting by own
house's WIFI.
1)Search and connect the Easylighting(WIFI controller default
password 0123456789)
2)Enter easy lighting application
3)Short press setting button (P2)
4)Short press Autolink to router (P10)
P9 P10
5)Press yes , it will search all the router around automatically
(P11.P12)
P12
P11
5
c. Edit color wheel for corresponding LED lighting
1)Press Edit button there will be four different color wheel in
lower right
For RGBW LED lighting
For CDW LED lighting
For CCT led lighting
For single color LED
lighting
P24
2)Cancel the mark for other three color wheels and keep one
( take single color as example) (P25)
3)Press save
4)Choose this zone there will be one directly enter
corresponding color wheel
P25 P26
Attention
Different zones which were edited to different color wheel
cannot be chose at same time.
Different Zones which were edited to same color wheel or
did not be edited any color wheel can be selected at same
time.
9

Product introduction

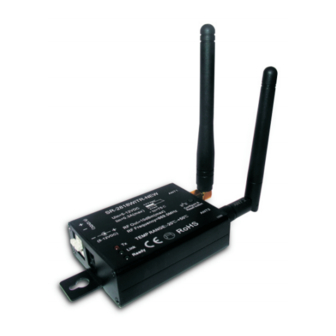

SR-2818WITR-NEW is a convertor which works with Surnicher's
receiver SR-1009FX series to be controlled by IOS or Android
system via WIFI. IOS and Android application is similar, we will
use IOS as an example in this manual.

Parameter

Remote
Operation Voltage Output Operation frequency
Part No.
RF Signal
SR-2818WITR-NEW 5-12VDC/5-36VDC 2.4G
Receiver
Iuput Voltage Output
Part No. Current Remarks
4x5A 4x(60-180)W Constant voltage
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC 4x8A 4x(96-288)W Constant voltage
4x(4.2-12.6)W Constant current
SR-1009FA3 12-36VDC 4x0.35A
SR-1009FA7 12-36VDC 4x0.7A 4x(8.4-25.2)W Constant current

Brief introduction of buttons

ANT1
SR-2818WITR-NEW
(5-12VDC) Configure &
Reset button
Tx
ANT2
Link
Ready

Installing wire diagram

ANT1
SR-2818WITR-NEW
Power Supply
5-12VDC
(5-12VDC) Configure &
Reset button
Tx
ANT2
Link
Ready
N L
110V-230VAC
2
6)Choose router we want connect
7)Enter password and then press OK (P13.P14)
P13 P14

Directly connect to WIFI controller

Be used without house's wifi
1)Search and connect the Easylighting(WIFI controller default
password 0123456789)
2)Enter easy lighting application
3)Short press setting button .
4)Press (P15)
5)Press yes (P16).
P15 P16
6
d. Learning button
Manual for this button will be explained in next chapter.
e. back button
After edit, click back button to return setting interface.
Learning ( combining)
a. Normal learning way
Learn
1)Selected any one room and there will be small mark on the
upper right side.
2)Press room button .
3)Press learning key on RF controllers SR-1009xx series
4)Touch the color wheel,LED lighting will blink to confirm room
designation
Delete
Press at learning key on receiver(SR-1009Fxx) over 5
seconds until LED light flash, then delete the learned ID.
b. Special learning way: using learning key in room
editing page. This learning way can only be activated in 15
seconds after power on the controller.
Learn
1)Enter to room editing page
2)Power off and on RF controller SR-1009XX
3)Short press the room which we want learning to
4)Short press the learning key
5)LED lighting will blink to confirm room designation
Delete
1)Power off and on RF controllers SR-1009faxx
2)Long press learning key over 5 second until LED light
blink
3)Then deletes the learned ID
Attention: This way normally is used when the RF controllers
SR-1009XX was installed in a place cannot be accessed.
10

Configure

There are three different ways to configure smart phone
connect to convertor:
1.

Easylink to router

2.Autolink to router
3.Directly connected to WIFI controller
We just need choose any one according different situation.
Three different ways to configure
smart phone connect to convertor:
1.Easylink to router
2.Autolink to router
3.Directly connected to WIFI
controller
P1
Easylink to Router
Mostly be use when convertor installing place is easy to be
accessed and need to control LED lighting by own house's WIFI.
1)IPhone/IPad connect to house's WIFI
2)Enter easy lighting application
3)Short press setting button (P2)
4)Short press Easylink to router button (P3)
P2 P3
3

Room editing

1.Short press setting button (P17)
2.Short press Edit room information button
there will be room editing page as(P19)
P17 P18
P19
7
Manual
a. Room button(P27,P28)
Choose Room button
1
2 Short press middle of zone picture
3 Mark on the upper right side of room picture to indicate
choose successfully, multiple rooms can be choose at same time
Press room button again be confirm the rooms' selection
4
Upper area will indicate room's name we selected.
5
3 3
2
3
1
4
P27 P28
(P29)Long press middle of the room picture to on/off
corresponding rooms/zones. There will be a red
off mark on the right upper side of the room picture
when the room is switched off.
b. color wheel
There will be four different color wheels we can select if we did
not edit the room: RGB, CDW, CCT, Single color.
1)Slide the upper areas from top to down to choose color wheel
from one to one. (P29,P30)
P29 P30
11
5)Short press the configure button on wifi convertor(P4)
6)Press ok (P5)
P5
7)Enter password and then press ok
8)There will be a interface indicate successful, then press OK.
4
a. Edit room/zone name
1)Press Edit button (P20)
2)Click the words("bedroom" for example)
(P18)
3)Clean the old name and enter a new name ( zone 1 for example)
4)Press save button (P21)
1
2
P20
b. Change picture for the room
1)Press Edit button (P20)
2)Short press the middle of the room picture(P22)
3)Camera will be opened automatically
4)Take a picture
5)Click use photo (P23)
5)Press save button (P22)
P22
8
Or fast press twice to enter the
color wheel selection interface to
choose color wheel(P31)
5
P31
c. pause&run button(P32)
Running button exist in RGB, CDW color wheel interface, they
are similar so here will take RGB as an example to explain.
Running & Pause button
P29
P32
Attention
Press pause&run button , mode will run. Press it once,
it runs one mode. Press button again, it stops, then press
one more time, it will enter next mode. There are total 10
build-in modes. If we pressed color after we pause the
running, the running mode will back form first one.
Long press the pause&run button
flash twice, the color running in different zones will be
switched from Synchronize moving to color chasing &
color chasing to Synchronize running.
12
Short press
ANT1
SR-2818WITR-NEW
(5-12VDC) Configure &
Reset button
Tx
ANT2
Link
Ready
P4
P6
(P6)
4
3 zone1
P21
P23
Fastest speed
Moving speed
adjust libe
Lowest speed
, LED lighting will
