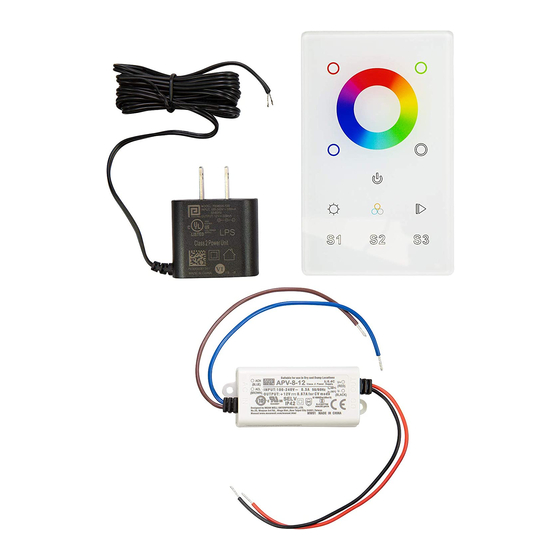

Sunricher SR-2812B Instructions

Wall Mounted RGBW DMX512 +RF Controller
Important: Read All Instructions Prior to Installation
Function introduction
Red channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
Touch color wheel, touch to
select R/G/B color
Blue channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
Click to select Warm White,
Natural White and Cool White
mixed by RGB colors
Press and hold down to
increase/decrease light
intensity
19.4 mm
DC Power input
09.2812UDR.04250
Green channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
White channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
Click to switch on/off
Click to play / pause the 10 built-in
effects, Press and hold down to
speed up/down the running effects
Press and hold down to save
color/effect; Click to recall the
saved
Front side
43.58 mm
DMX512 Wall Panel
Controller
DC INPUT DMX OUTPUT
V- V+ D- D+ GND
DMX512 signal output
Back side
Product Data
Output Signal
DMX512 signal
Power Supply
12-24VDC
Power consumption < 20 mA
Operating temperature
0-40°C
Relative humidity
8% to 80%
Dimensions
75x120x29.1mm
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

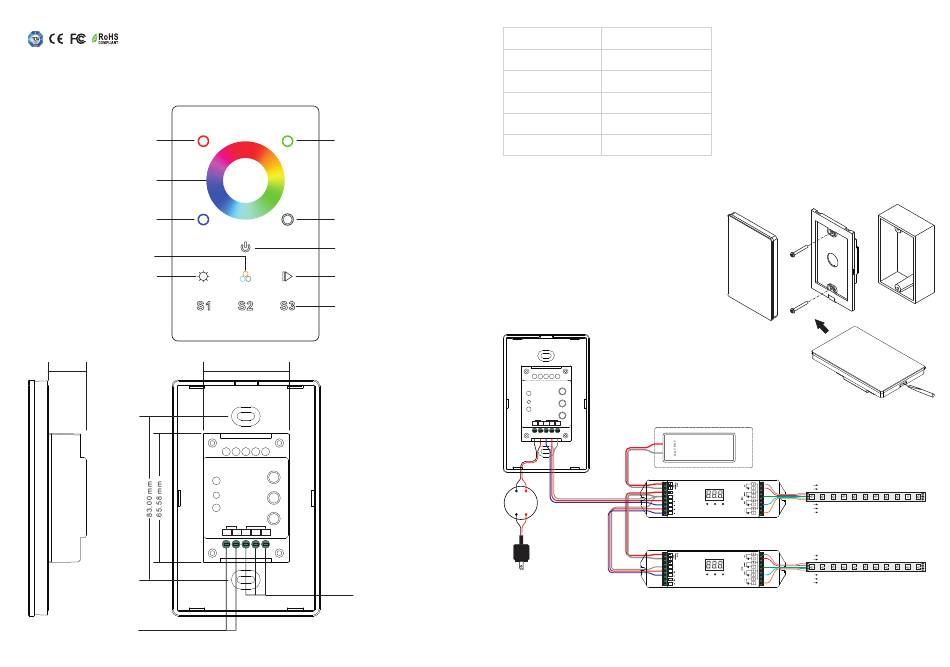

Wiring diagram
DMX512 Wall Panel
Controller
DC INPUT DMX OUTPUT
V- V+ D- D+ GND
V+
V-
DMX512 Decoder
12-24VDC
PSU
DMX512 Decoder
AC 100-240V
Set DMX Address
One DMX master controller can control many DMX Decoders, set all DMX decoders' address as 001.
Note: one DMX Decoder has 4 channels, so it occupies 4 DMX addresses 001, 002, 003, 004.
• Touch sensitive
• Glass interface(white & black)
• Standard DMX512 Signal output
• Can send RF signal, control the RF receiver
• Radio frequency: 916.5MHz
• Control RGBW color
• Control 1 zone/area
• Waterproof grade: IP20
Installation
12V/24V/36V
CV PSU
V+ V+
R- R-
G- G-
0-5 0-9 0-9
B- B-
W- W-
V+ V+
R- R-
G- G-
0-5 0-9 0-9
B- B-
W- W-
Connect with RGBW LED Strip
Connect with RGBW LED Strip
