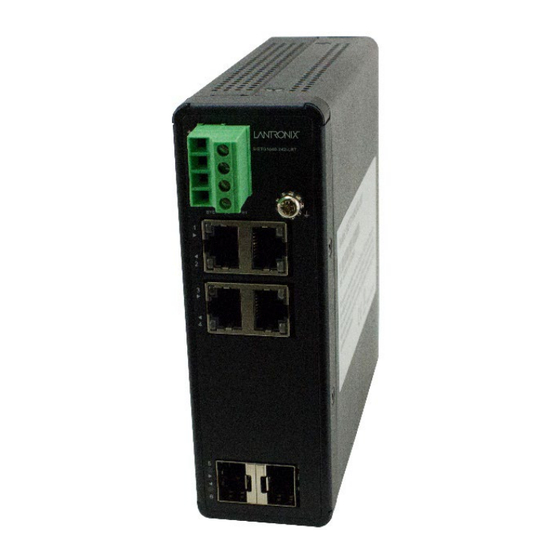

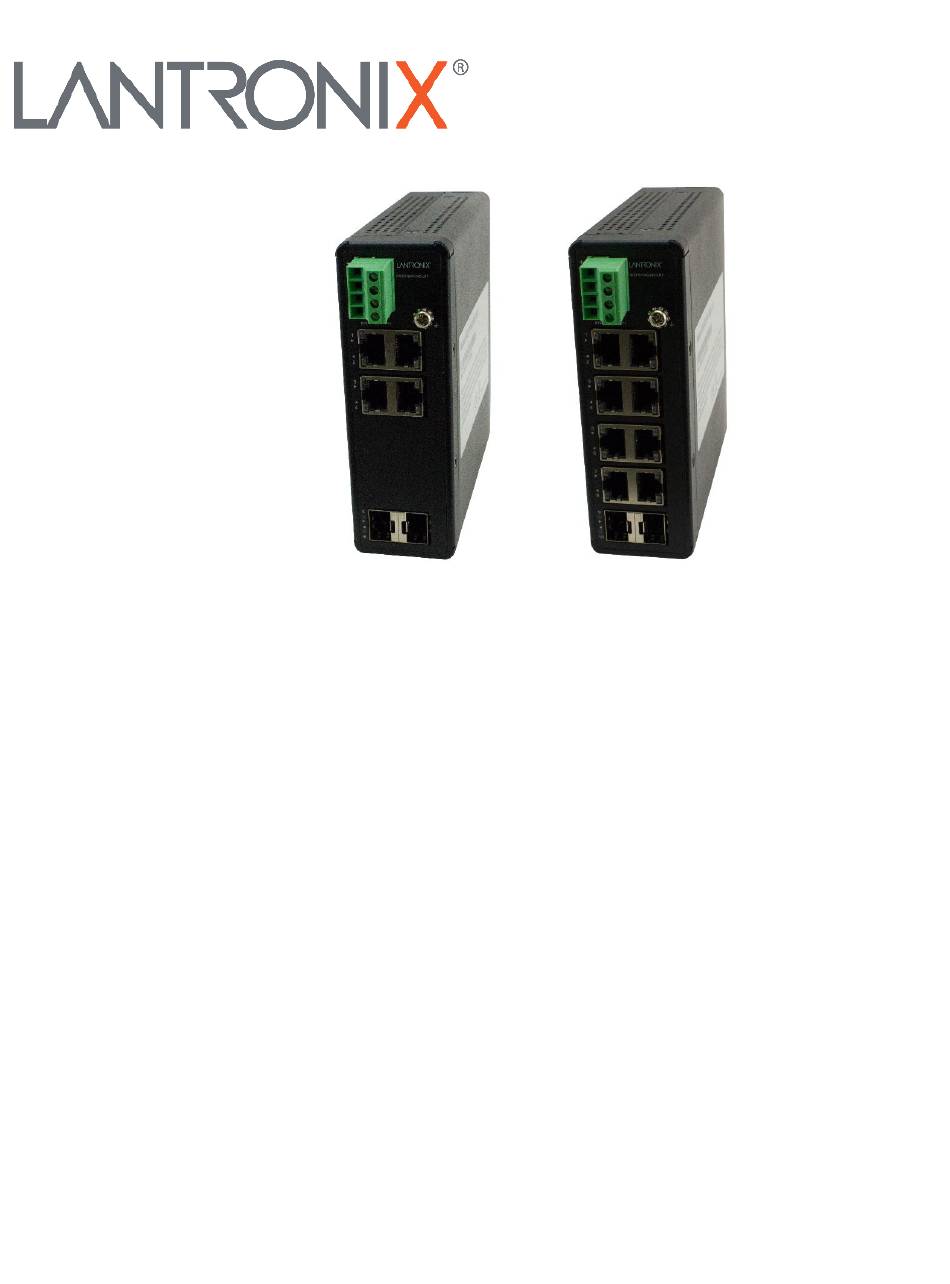

- Page 1 SISTG1040-242-LRT SISTG1040-282-LRT SISTG1040-242-LRT and -282-LRT Unmanaged Hardened GbE Ethernet Switches Install Guide Part Number 33735 Revision F August 2024...
-
Page 2: Warranty
Intellectual Property © 2022-2024 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. -
Page 3: Revision History
11/23/20 Update specifications and certifications. 7/28/21 Update Safety certification from EN60950 or IEC60950 to IEC62368-1/EN62368-1. 8/15/24 Initial Lantronix rebrand. Note NDAA and TAA Compliant. Update graphics and links. Cautions and Warnings See the Cautions and Warnings on page for Definitions, Compliance and Safety Statements, Electrical Safety Warnings in multiple languages, and Compliance and Safety Statements. -
Page 4: Table Of Contents
Lantronix SISTG1040-2x2-LRT Install Guide Contents Introduction ............................. 6 Ordering Information ............................. 6 Features ................................ 6 Specifications ..............................7 Port Configuration ............................. 7 Hardware Performance..........................7 Environmental Range ..........................7 Dimensions, Weights, Mounting ....................... 7 Voltage and Frequency..........................7 Certifications and Compliance ........................8 Applications .............................. - Page 5 Lantronix SISTG1040-2x2-LRT Install Guide Power Connection Procedure ......................... 19 Troubleshooting ........................... 20 Basic Troubleshooting ..........................20 LED Troubleshooting ..........................20 Device Label and Packaging Label ......................21 Record Device and System Information ..................... 22 Regulatory and Safety Information ..................... 23 Compliance and Safety Statements ......................
-
Page 6: Introduction
SISTG1040-2x2-LRT Install Guide Introduction The Lantronix SISTG1040-2x2-LRT industrial unmanaged GbE switches are plug-and-play Ethernet switches offering an easy way to make the transition to Gigabit Ethernet and increase the speed of your network connections. The energy efficient, built to last, and rigorously tested switches provide the reliability businesses need, and they are suitable for industrial Ethernet applications. -
Page 7: Specifications
Primary Power Supply (DC Input Voltage) DC Nominal 12/24/48 VDC dual inputs (+12 to +48VDC or -12 to -48VDC) DC Operating Range 9.6 to 57 VDC DC Power SISTG1040-242-LRT: 4.4Watts max. Consumption SISTG1040-282-LRT: 5.8Watts max. Page 7 of 28 33735 Rev. F https://www.lantronix.com/... -
Page 8: Certifications And Compliance
Lantronix SISTG1040-2x2-LRT Install Guide Certifications and Compliance Regulatory Compliance IEC 61000-4-2 ed1.2: 2001 : ESD Test level 3: 8kV contact, 15kV air EN61000-4-4 EFT – DC:2KV(up to 4KV) EN61000-4-4 EFT – Signal Ports:1KV(up to 2KV) EN61000-4-3 Radiated Immunity – Enclosure: 10V/m (up to 6GHz) FCC part 15 approval Class A;... -
Page 9: Applications
• Troubleshoot switch installation. Related Manuals A printed Quick Start Guide is shipped with each switch. For Lantronix Firmware, Manuals, Product Notifications, etc. go to the Lantronix Technical Resource Center. Note that this manual provides links to third party web sites for which Lantronix is not responsible. -
Page 10: Switch Overview
Lantronix SISTG1040-2x2-LRT Install Guide Switch Overview Package Contents Verify that you have received the items below. Contact your sales representative if any item is missing. Please save the packaging for possible future use. The Switch • Terminal Block • •... -
Page 11: Front Panels
Lantronix SISTG1040-2x2-LRT Install Guide Front Panels SISTG1040-242-LRT Front Panel SISTG1040-282-LRT Front Panel Page 11 of 28 33735 Rev. F https://www.lantronix.com/... -
Page 12: Back Panel And Bottom Panel
Lantronix SISTG1040-2x2-LRT Install Guide Back Panel and Bottom Panel Back Panel Bottom Panel RESET Button Press the RESET button to reboot the switch. The front panel LEDs flash and the switch is reset. Page 12 of 28 33735 Rev. F... -
Page 13: Led Descriptions
Lantronix SISTG1040-2x2-LRT Install Guide LED Descriptions The front panel LEDs let you check and monitor switch status. The three types of front panel LEDs are: Power LEDs (P1, P2) indicate if the switch is powered up correctly. • System LED indicates if the system is ready. -
Page 14: Port Status Leds
Lantronix SISTG1040-2x2-LRT Install Guide Port Status LEDs The table below describes port status LED behaviors. Color State Description The port is enabled and has established a link to a connected device, Green and the connection speed is 1000Mbps. The port is transmitting/receiving packets, and the connection speed... -
Page 15: Installation
Lantronix SISTG1040-2x2-LRT Install Guide Installation Mounting the Switch on a DIN Rail 1. Attach the DIN Rail mounting kit to rear panel of the chassis. Insert screws and tighten with a screwdriver to secure the kit. 2. Insert the upper lip of the DIN rail into the DIN-rail mounting kit. Press the switch towards the DIN rail until it snaps into place. -
Page 16: Mounting The Switch On Wall (Optional)
Lantronix SISTG1040-2x2-LRT Install Guide Mounting the Switch on Wall (Optional) Use the Optional Wall Mountable brackets (WMBH-01 option). 1. Attach the wall mounting plates to rear panel of the chassis. Insert screws and tighten then with a screwdriver to secure the plates. -
Page 17: Grounding Screw
The switch provides two 100M/1G SFPs. You can install or remove a mini-GBIC SFP module from a SFP port without having to power off the switch. Lantronix offers a full line of small form factor pluggable (SFP) transceivers. See our SFP webpage for details. -
Page 18: Connecting To Network / Devices
Power Supply Features and Specifications Two Industrial Power Supply options are available (sold separately). 25135 Industrial Power Supply Optional Accessory Input: 85 -264VDC, 120-370VDC. Output: 24VDC, 10Watts, -20°C to +70°C. See the Lantronix webpage for more information. 25130 Industrial Power Supply Optional Accessory Input: 88 -264VDC, 120-370VDC. -
Page 19: Power Connection Procedure
Lantronix SISTG1040-2x2-LRT Install Guide Power Connection Procedure Caution: Before applying power from an AC outlet, insert terminal connectors into the SISTG1040-2x2-LRT switch and verify all connections. Plugging in power connection after energizing power supply(s) may damage the switch. 1. Paying close attention to the polarity markings, connect the wires between the +P1 and –P1 terminals on the switch terminal block and the +V and -V terminals on the power supply. -
Page 20: Troubleshooting
Lantronix SISTG1040-2x2-LRT Install Guide Troubleshooting Basic Troubleshooting 1. Make sure your switch model supports the feature or function attempted; see chapter 1. 2. Verify the install process; see chapter 2. 3. Troubleshoot connected network devices to pinpoint the problem to the switch. -
Page 21: Device Label And Packaging Label
Lantronix SISTG1040-2x2-LRT Install Guide The table below provides information to troubleshoot problems by taking actions based on suggested solutions. Symptoms Possible Causes Suggested Solutions 1. Check if correct power cord is connected firmly to the switch and to the DC outlet socket. -
Page 22: Record Device And System Information
Describe any action(s) already taken to resolve the problem (e.g., rebooting, etc.): _________________________________ _______________________________________________________________________________________________________________________ _______________________________________________________________________________________________________________________ _______________________________________________________________________________________________________________________ The serial and revision numbers of all involved Lantronix products in the network: ______________________________________________________________________________________________________________________ _______________________________________________________________________________________________________________________ Describe your network environment (layout, cable type, etc.): ______________________________________________________... -
Page 23: Regulatory And Safety Information
European Emission Standard EN55022/EN61000-3 and the Generic European Immunity Standard EN55024/55032. Declaration of Conformity Declaration of Conformity Manufacture’s Name: Lantronix, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, CA 92618, USA. Declares that the products: SISTP1010-360-LRT, SISTP1010-380-LRT-C, SISTP1040-342-LRT, SISTP1040- 382-LRT, SISTG1040-242-LRT, SISTG1040-282-LRT... -
Page 24: Certificate Of Compliance
Lantronix SISTG1040-2x2-LRT Install Guide Certificate of Compliance Page 24 of 28 33735 Rev. F https://www.lantronix.com/... -
Page 25: Cautions And Warnings
Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems ("High Risk Activities"). Lantronix and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. - Page 26 Lantronix SISTG1040-2x2-LRT Install Guide Warning and Caution - Proper Installation and Operation (English) These devices are open-type devices that are to be installed in an enclosure only accessible with the use of a tool, suitable for the environment. This equipment is suitable for use in Class I, Division 2, Groups A, B, C, and D or non-hazardous locations only.
-
Page 27: Electrical Safety Warnings
Lantronix SISTG1040-2x2-LRT Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal installeres i overensstemmelse med sikkerhedsadvarslerne. - Page 28 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: http://www.transition.com/support. Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. Page 28 of 28 33735 Rev. F https://www.lantronix.com/...
