2.
PRESSURE POT

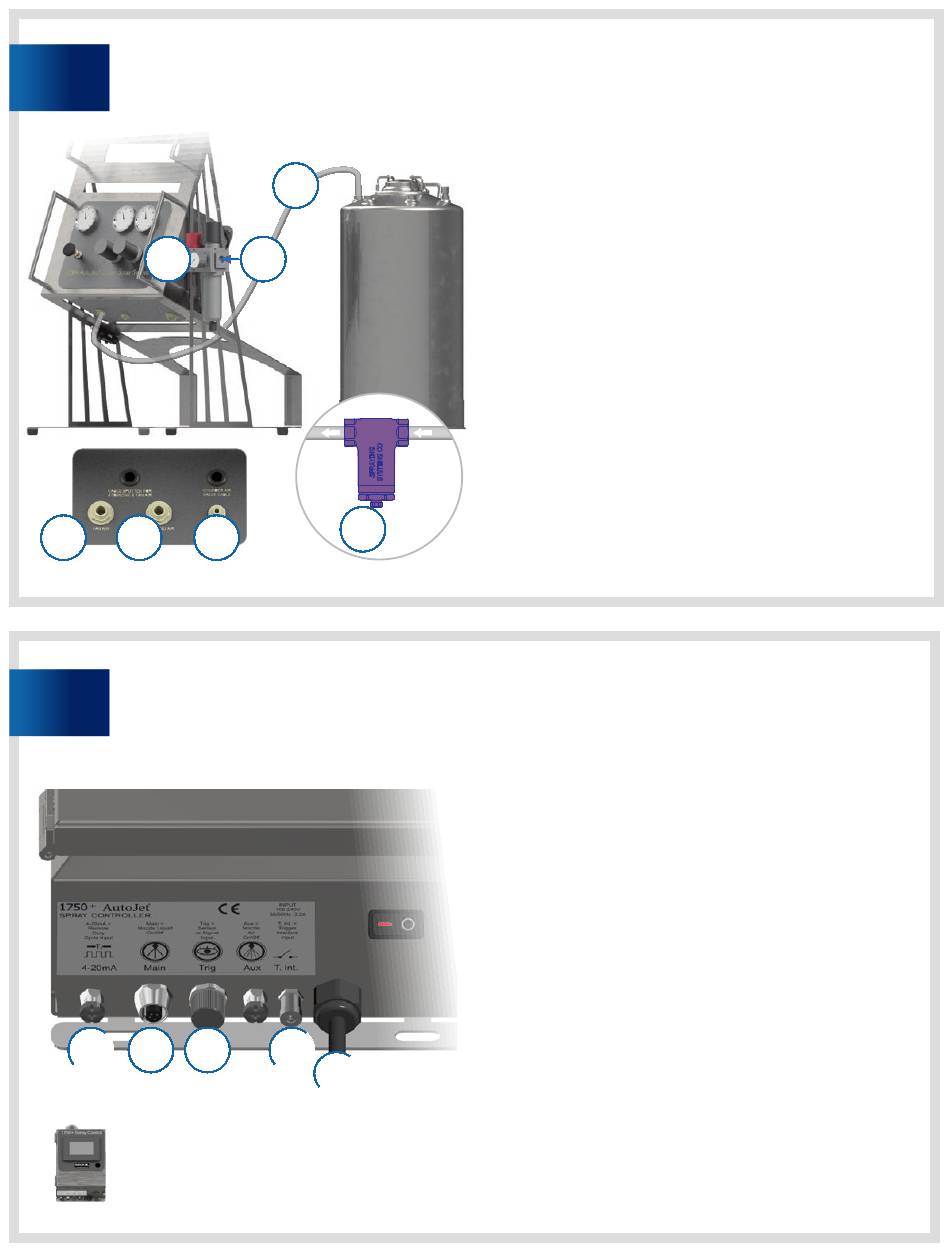

AIR AND LIQUID CONNECTIONS
1
5c 5b 5a
3.
ELECTRICAL CONNECTIONS -
POWER AND EXTERNAL DEVICES
5 2 3
CONTROL PANEL
BOTTOM VIEW
3
2
Liquid Liquid
out to in from
nozzles pressure
pot
4
4
1
1.
Connect the Air Filter assembly to the unit by threading it
to "AIR IN" bulkhead fitting
2.
Plumb and connect air supply 1/2" (F) NPT or BSPT
to the air filter assembly. Customer to supply connection
3.
Connect tubing from "PILOT LIQUID REGULATOR/TANK
AIR OUT" bulkhead fitting to air inlet fitting of pressure pot
4.
Plumb liquid strainer between the pressure pot liquid out
port and the spray nozzle(s)
5.
Connect air lines to spray nozzles if required
a. "CYLINDER AIR" if using air-actuated nozzles
e.g. JJAU, JAU, JAUH, VAU, VMAU series
b. "ATOMIZING AIR" if using air atomizing nozzles
e.g. JJAU, JAU, VAU, VMAU, VX series
c. "FAN AIR" if using variable spray nozzles
e.g. VAU, VMAU, VX series
1.
Plug into grounded (115-230 VAC, 1ph.) power source and turn
on power. HMI display will illuminate. To set spray parameters
and for HMI operation, please refer to section 6 of the
owner's manual
2.
If using electric actuated spray nozzle(s) connect cable
to the "Main" connection
3.
Connect cable to "Trig" connection that will be used to
start spray sequence. Available triggers are:
• Trigger cable (for use with customer-supplied trigger signal)
• Sensor, including: photo, prox, laser or thru-beam (type
should be selected based on customer's application)
• Handheld trigger
4.
For fail-safe operation, or when dual trigger signals will run the
system, connect trigger interlock cable to "T. int." connection
5.
If using remote setpoint for Precision Spray Control (PSC),
connect input of a 4-20mA analog signal to "4-20mA"
connection to adjust the duty cycle remotely
