IDENTIFY YOUR VERSION
AND CONFIGURATION
The PUMP VERSION features an integrated air operated diaphragm pump for continuously run spray applications.
• This design requires liquid to be drawn from a tote or tank
• Liquid from the system can be recirculated back to the supply tote or tank
The PUMPLESS VERSION is for applications where the system's liquid delivery is provided by a pressurized vessel or other
pressurized supply from the customer.
• This version is designed to control the pressure down from a pressurized source
• The system controls the flow of liquid using an internal air piloted liquid pressure regulator located inside the valve panel
The PRESSURE POT VERSION regulates the air pressure to a pressurized vessel.
• This version controls the flow of liquid by using an air regulator to pressurize the pot
• Liquid flows from the pressure pot and does not flow through the system's valve panel

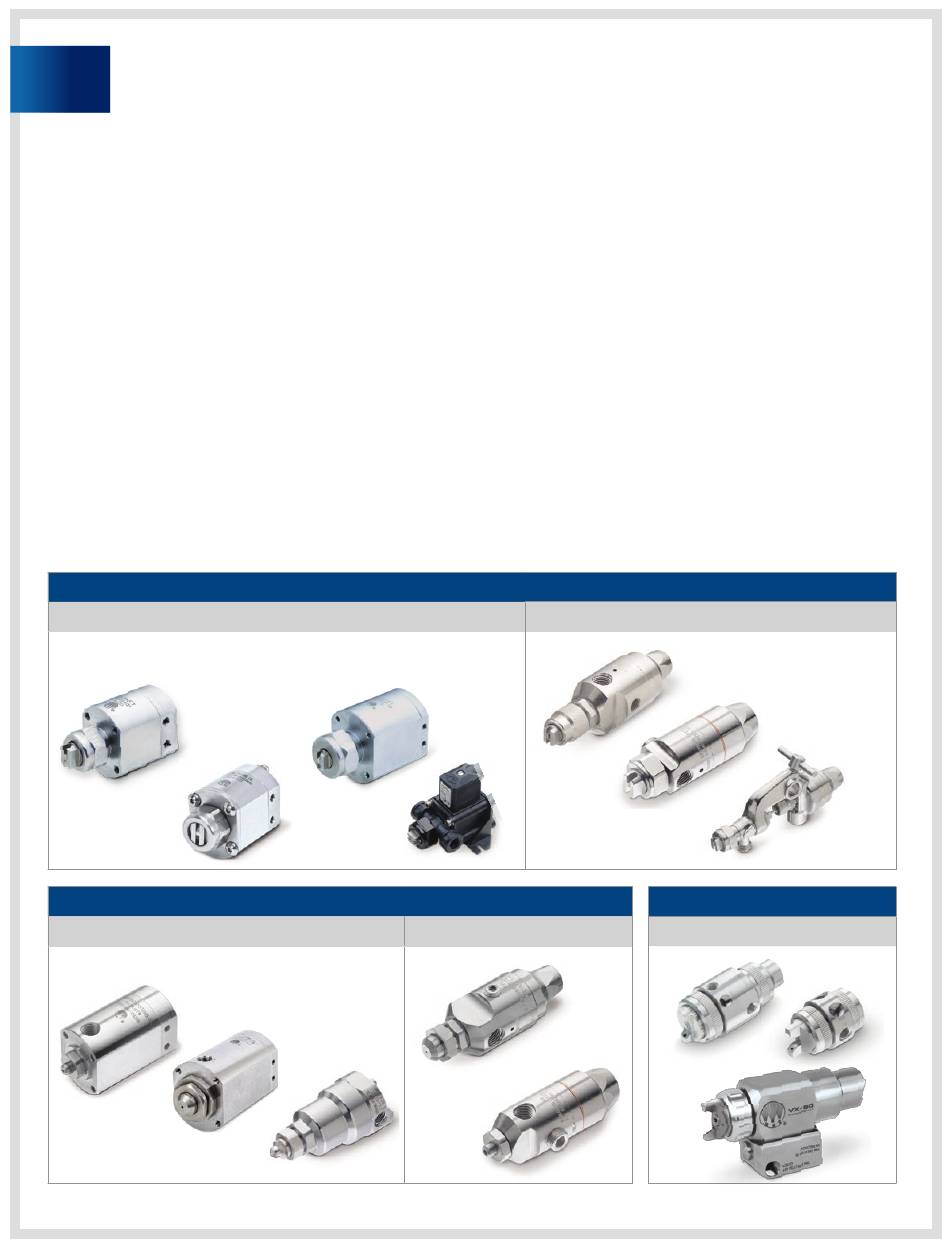

1750+ SPRAY CONTROL SYSTEM NOZZLE COMPATIBILITY
Electrically-Actuated Nozzles: Hydraulic
PulsaJet
®
10000AUH-03
PulsaJet
10000AUH-104210
Electrically-Actuated Nozzles: Hydraulic
PulsaJet
10000JJAU
10000JAU-10
PulsaJet
10000AUH-10
Liquid and Atomizing Air Control
PulsaJet
29JAUCO
Liquid Only Control
1/4JAUH
AA250AUH
Air-Actuated Nozzles: Air-Atomizing
1/4JAU
1/8JJAU
Air-Actuated Nozzles: Hydraulic
1/8JJAUH
Liquid, Atomizing and Fan Air Control
Air-Actuated Nozzles: Air-Atomizing
VAU
VX
22AUH
VMAU
