Summary of Contents for Uplus Lighting 4020 IP

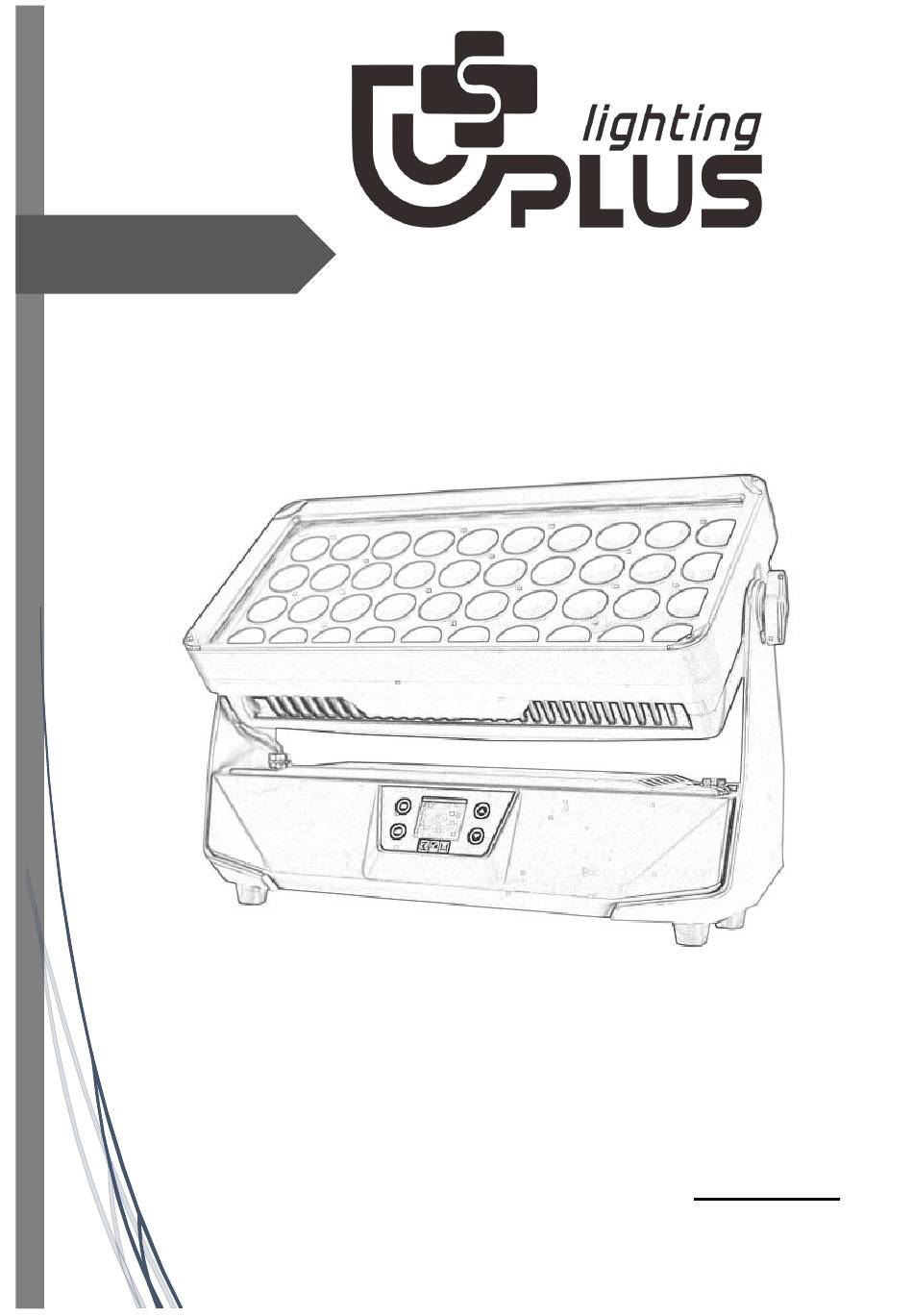

- Page 1 User manual 4020 IP Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-6 DMX Channels ……………………………………………………………………………………6 Trouble Shooting…………………………………………………………………………………7 Fixture Cleaning………………………………………………………… ………………………7 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...
- Page 3 1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •...
- Page 4 fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. •The equipment must be fixed by professionals.
- Page 5 3.Control Menu Display: MENU To select the programming functions (press to unlock screen) DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address: 1. Press "MENU" to unlock screen, then select the “DMX Address” and press "ENTER". 2.
- Page 6 DI M1 Dimmer mode 1 DI M2 Dimmer mode 2 Dim mer Mode DI M3 Dimmer mode 3 DI M4 Dimmer mode 4 AU TO Fan Aut o Fan Mode HI GH Fan high speed LO W Fan low speed KEY Loc k OF F Key Loc k OF F...
- Page 7 5.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
