Hytronik HC009S-KD/I Installation And Instruction Manual

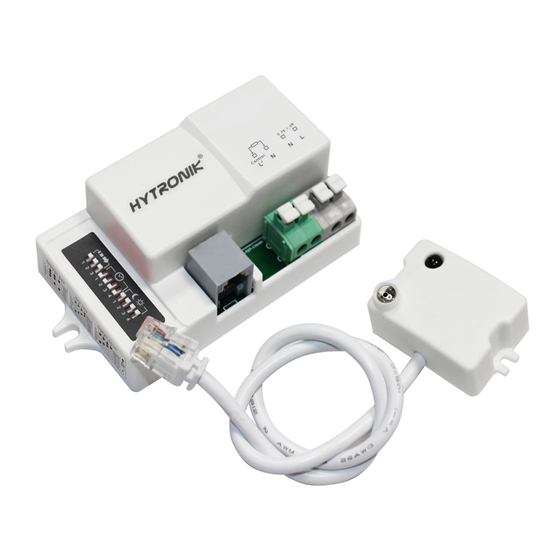

HF MOTION SENSOR DETACHED VERSION HC009S-KD/I
1. Technical Specifications
Product Type:
Operating Voltage:
HF System:
Transmission Power:
Rated Load:
Detection Angle:
Power Consumption:
Detection Range :
Time Setting:
Mounting:
Light Control:
Working Temperature:

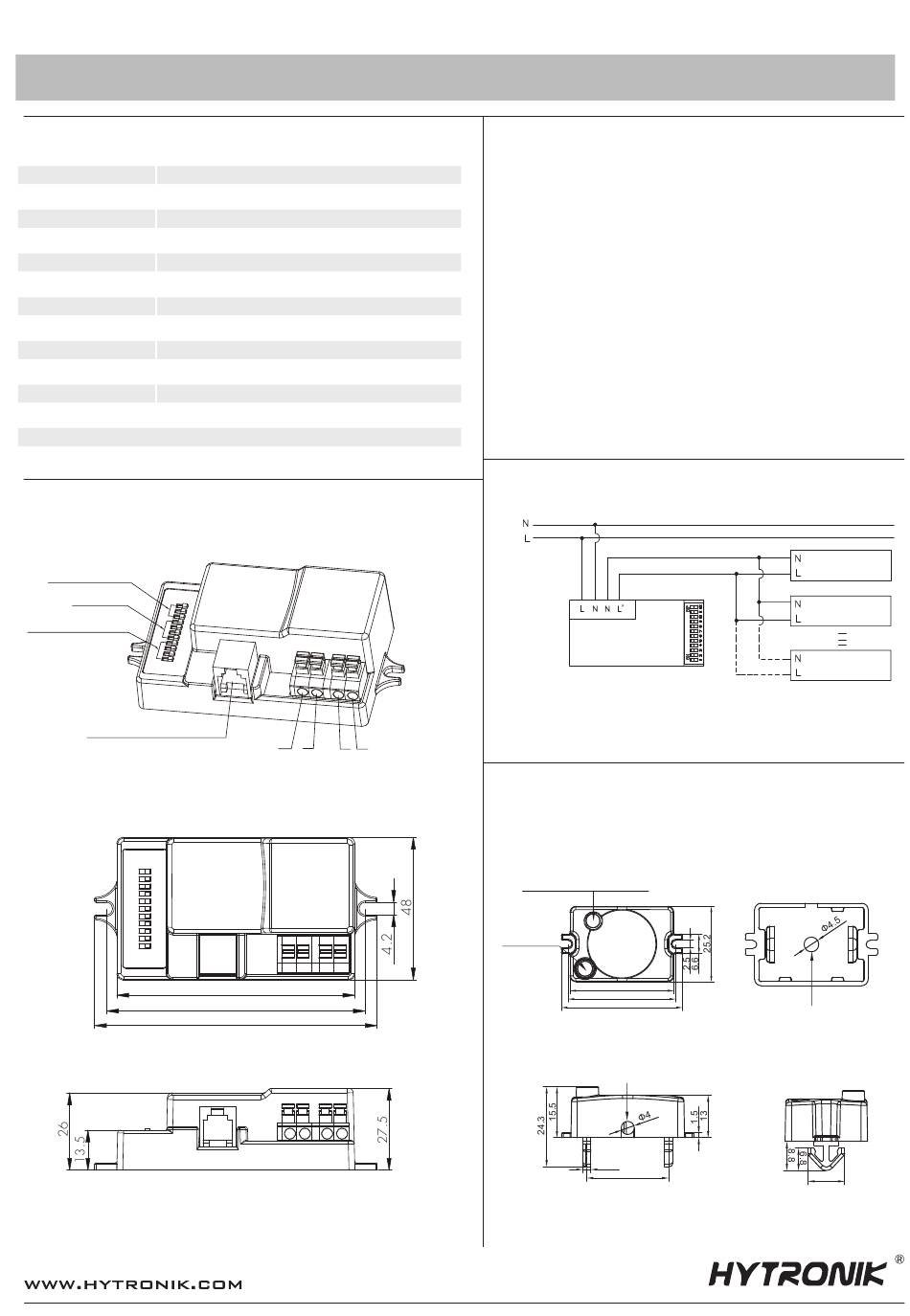

2. Dimensions (mm)
Detection area
Hold-time
Daylight threshold
Sensor antenna interface
Installation and Instruction Manual
ON/OFF Control Microwave Motion Sensor
220-240VAC 50Hz/60Hz
5.8GHz CW radar
< 0.2mW
800W (resistive load)
400W (capacitive load)
30~150°
< 0.6W
Max. 12 meters in diameter, adjustable
10s ~ 30 min.
Indoors, Ceiling & walling mounted
5~50 lux, disable
-20 ~ +60°C
L' N N L'
80
87
95
3. Functions
1. Lux Off Function
The built-in daylight sensor can measure ambient natural light and switch off
the fixture automatically whenever artificial light is not required (natural light
lux level exceeds daylight threshold).
2. Zero-cross Relay Operation
Designed in the software, the sensor switches on/off the load right at the
zero-cross point, to ensure the in-rush current is minimised, enabling the
maximum life-time of the relay.
3. Loop-in and Loop-out Terminal
Double L N terminal makes it easy for wire loop-in and loop-out, and saves
the cost of terminal block and assembly time.

4. Wiring Diagram

HC009S-KD/I
This sensor is suitable for indoor use, and is also designed for installation
Max. 5m in height.
5. Sensor antenna
Model SAM5/I
Super-compact sensor antenna, with Hytronik specially designed intelligent
photocell built inside.
Infrared remote receiver
Photocell
34.7
35.9
40.4
Cable side entry
2.5
25
Control gear
Control gear
Control gear
Cable back entry
11.2
HC009S-KD/I-20171218-A1
