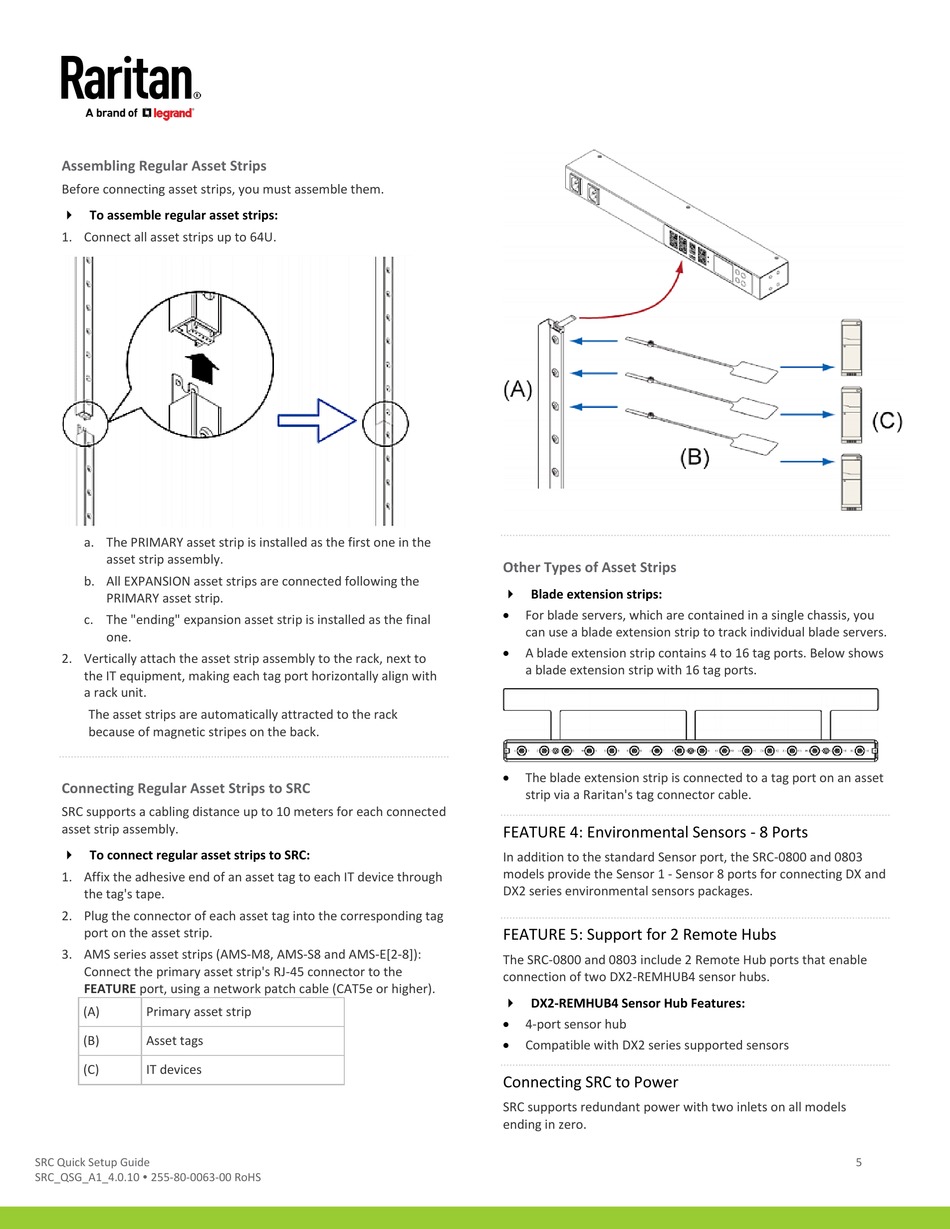

Assembling Regular Asset Strips
Before connecting asset strips, you must assemble them.
 To assemble regular asset strips:
1. Connect all asset strips up to 64U.
a. The PRIMARY asset strip is installed as the first one in the
asset strip assembly.
b. All EXPANSION asset strips are connected following the
PRIMARY asset strip.
c. The "ending" expansion asset strip is installed as the final
one.
2. Vertically attach the asset strip assembly to the rack, next to
the IT equipment, making each tag port horizontally align with
a rack unit.
The asset strips are automatically attracted to the rack
because of magnetic stripes on the back.
QS Rule
Connecting Regular Asset Strips to SRC
SRC supports a cabling distance up to 10 meters for each connected
asset strip assembly.
 To connect regular asset strips to SRC:
1. Affix the adhesive end of an asset tag to each IT device through
the tag's tape.
2. Plug the connector of each asset tag into the corresponding tag
port on the asset strip.
3. AMS series asset strips (AMS-M8, AMS-S8 and AMS-E[2-8]):
Connect the primary asset strip's RJ-45 connector to the
FEATURE port, using a network patch cable (CAT5e or higher).
(A) Primary asset strip
(B) Asset tags
(C) IT devices
SRC Quick Setup Guide
SRC_QSG_A1_4.0.10  255-80-0063-00 RoHS
QS Rule
Other Types of Asset Strips
 Blade extension strips:
•
For blade servers, which are contained in a single chassis, you
can use a blade extension strip to track individual blade servers.
•
A blade extension strip contains 4 to 16 tag ports. Below shows
a blade extension strip with 16 tag ports.
•
The blade extension strip is connected to a tag port on an asset
strip via a Raritan's tag connector cable.
QS Rule
FEATURE 4: Environmental Sensors - 8 Ports
In addition to the standard Sensor port, the SRC-0800 and 0803
models provide the Sensor 1 - Sensor 8 ports for connecting DX and
DX2 series environmental sensors packages.
QS Rule
FEATURE 5: Support for 2 Remote Hubs
The SRC-0800 and 0803 include 2 Remote Hub ports that enable
connection of two DX2-REMHUB4 sensor hubs.
 DX2-REMHUB4 Sensor Hub Features:
•
4-port sensor hub
•
Compatible with DX2 series supported sensors
QS Rule

Connecting SRC to Power

SRC supports redundant power with two inlets on all models
ending in zero.
