On start-up (removing and inserting a battery) and within 3 seconds press:
4.5

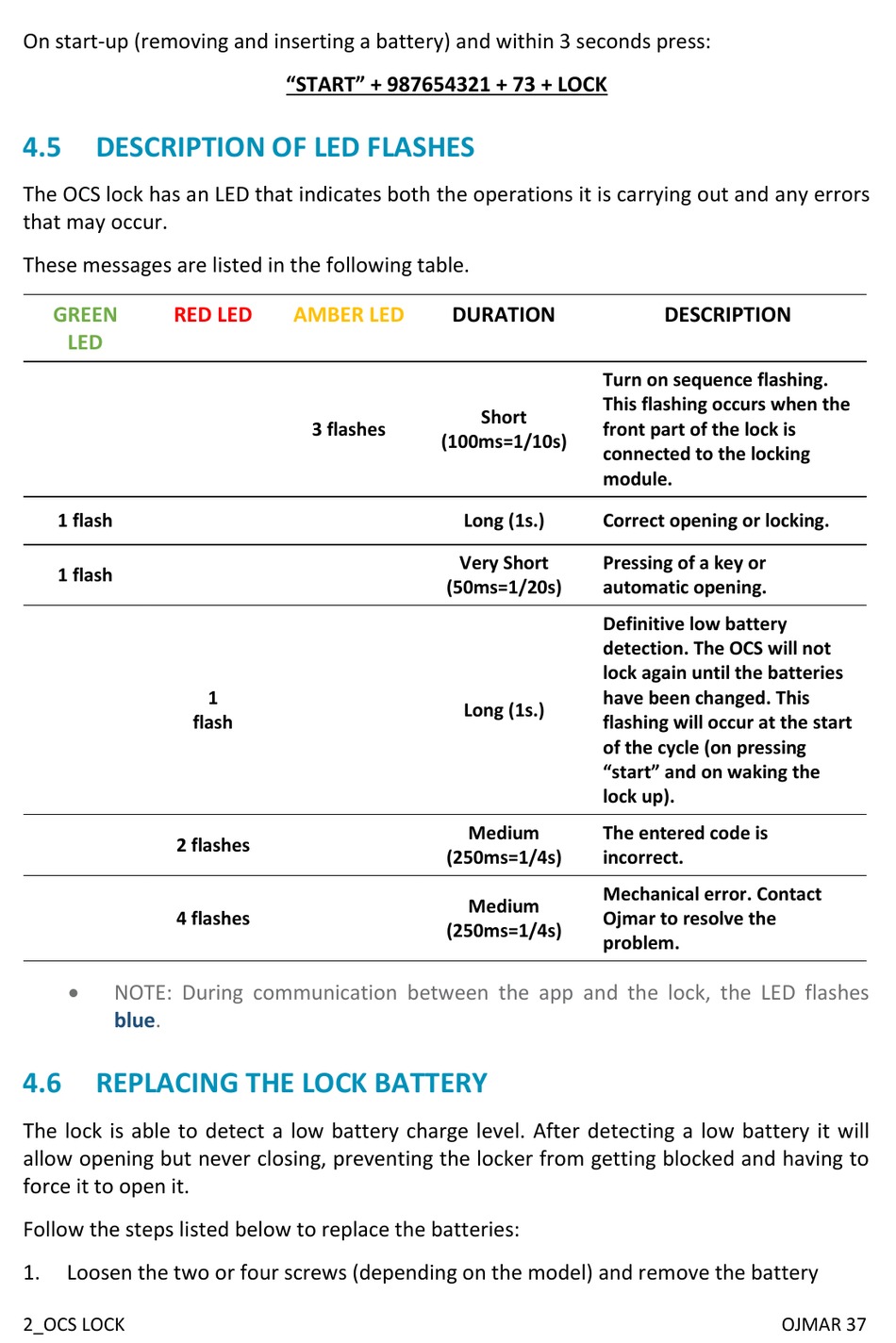

DESCRIPTION OF LED FLASHES

The OCS lock has an LED that indicates both the operations it is carrying out and any errors
that may occur.
These messages are listed in the following table.
GREEN
RED LED
LED
1 flash
1 flash
2 flashes
4 flashes
NOTE: During communication between the app and the lock, the LED flashes
blue.
4.6

REPLACING THE LOCK BATTERY

The lock is able to detect a low battery charge level. After detecting a low battery it will
allow opening but never closing, preventing the locker from getting blocked and having to
force it to open it.
Follow the steps listed below to replace the batteries:
1.
Loosen the two or four screws (depending on the model) and remove the battery
2_OCS LOCK
"START" + 987654321 + 73 + LOCK
AMBER LED
3 flashes
1
flash
DURATION
Turn on sequence flashing.
This flashing occurs when the
Short
front part of the lock is
(100ms=1/10s)
connected to the locking
module.
Long (1s.)
Correct opening or locking.
Very Short
Pressing of a key or
(50ms=1/20s)
automatic opening.
Definitive low battery
detection. The OCS will not
lock again until the batteries
have been changed. This
Long (1s.)
flashing will occur at the start
of the cycle (on pressing
"start" and on waking the
lock up).
Medium
The entered code is
(250ms=1/4s)
incorrect.
Mechanical error. Contact
Medium
Ojmar to resolve the
(250ms=1/4s)
problem.
DESCRIPTION
OJMAR 37
