Ojmar OCS SMART User Manual page 15

1. Lock type: For selecting whether the user will have free or fixed locks.
2. Number of locks: Sets the number of locks that will be assigned to the user (Maximum
of 3 free locks or 6 fixed locks).
3. User code: When the fixed lock type has been chosen, this option is displayed,
allowing you to set the code that the assigned locks will have.
4. Lock number: When the fixed lock type has been chosen, as many locks as were set in
point 2 (from 1 to 6) are displayed.
Select the number of the lock that you want to assign to the user.


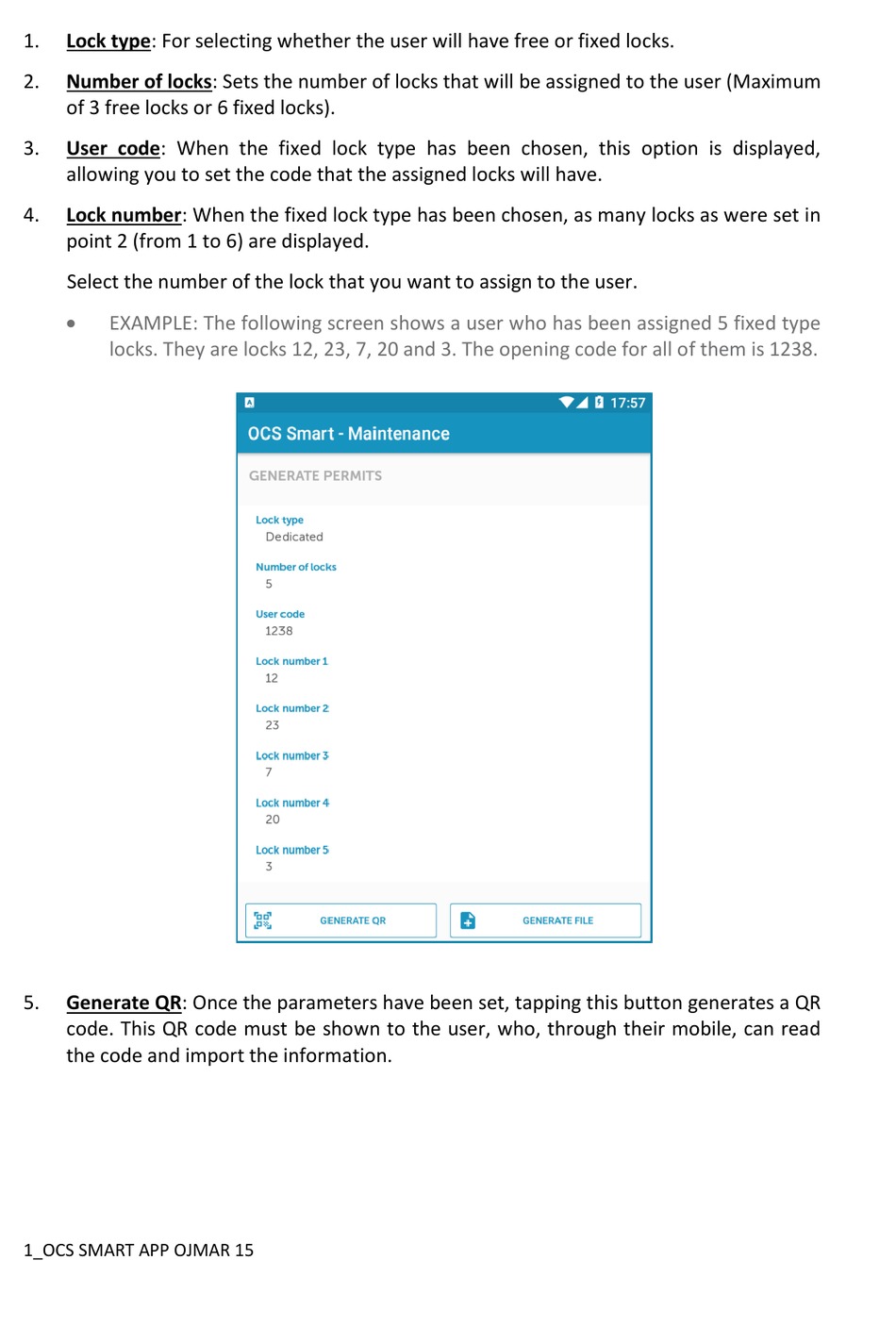

EXAMPLE: The following screen shows a user who has been assigned 5 fixed type
locks. They are locks 12, 23, 7, 20 and 3. The opening code for all of them is 1238.
5. Generate QR: Once the parameters have been set, tapping this button generates a QR
code. This QR code must be shown to the user, who, through their mobile, can read
the code and import the information.
1_OCS SMART APP OJMAR 15
