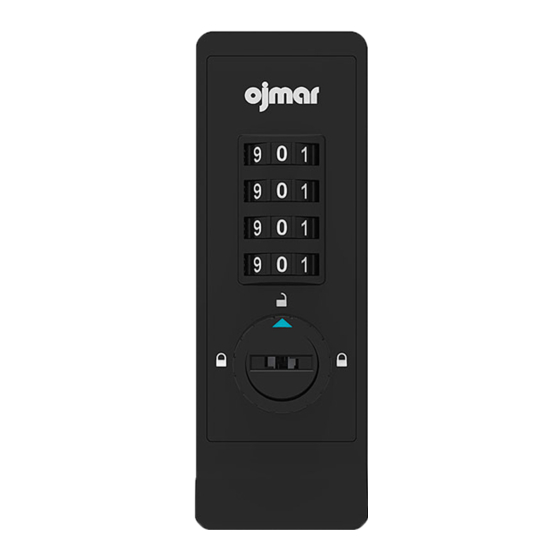

Ojmar LOCKR COMBI 8001 Installation And Assembly

INSTALLATION
1.
Mark position of cut out on door, ensuring that cam in
locked position will fit into keep or strike plate of door
frame.
Cut out door as dimensioned bellow. Cut must be clean
and smooth free from burrs.
3.
The lock as standard is supplied with two length of fixing screws that will allow the lock to be fitted to doors between
12mm (15/32") and 20mm (3/4"). Should doors be thinner than 12mm (15/32") then packing pieces can be supplied
(sold separately). Please see sizing chart bellow to select the correct screws to fit door thickness and if packing piece is
required.
Door Thickness Pad Thickness
1 mm (3/64") 5 mm (13/64") , 10 mm (3/8")
2 (5/65") to 4 mm (5/32") 10 mm (3/8")
5 (13/64") to 6 mm (15/64") 10 mm (3/8")
7 (9/32") to 9 mm (23/64") 5 mm (13/64")
10 (3/8") to 11 mm (7/16") 5 mm (13/64")
12 (15/32") to 14 mm (35/64") 0
15 (19/32") to 20 mm (3/4") 0
2.
Position the handle frame onto the lock from the
rear. Insert the lock together with handle into the
door cut out. See diagram bellow:
L Screw
25 mm (1")
20 mm (3/4")
25 mm (1")
20 mm (3/4")
25 mm (1")
20 mm (3/4")
25 mm (1")
Fastening plate pad
Ojmar S.A. Polígono Industrial de
Lerun, s/n 20870 Elgoibar · Spain
T. +34 943 748484
www.ojmar.com
Ojmar US
17155 Von Karman Ave, Suite 111, Irvine
CA. 92614 - USA
T. 1-949 419 6776
www.ojmar.us
V.2
4.
Fit lock to door, placing fixing plate onto the
inside of the door. See diagram bellow:
LOCK 8001 / INSTALLATION AND
ASSEMBLY
v.01
5.
Secure the lock to the door using correct length
fixing M3 screws from inside of the door. See
diagram bellow:
Do not overtighten, max torque of 150 Ncm,
111ftlbs.
