HYDAC FILTERTECHNIK GmbH
Bearbeitung: Bärbel Schön / Abt.: FFVI / Tel.: 06897/509-784, Fax.: 06897/509-300, E-Mail:
Technical Documentation Special Version

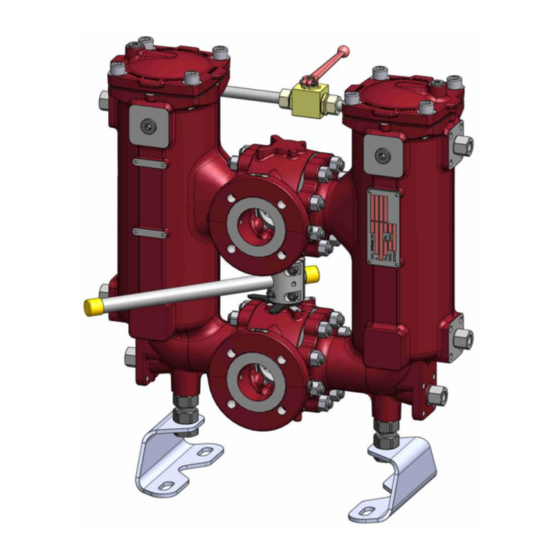

Change-Over Inline Filter RFLD
Filter type: AFLD G/HC 882 CA4 10 W 1.0 /-Z-SFREE-150-03807923
Material-no.: 01309580
The warranty offered pursuant to our Terms of Sale and Delivery is applicable only in the
event that original HYDAC components are used and work is carried out solely by properly
trained and qualified personnel.
C
ONTENTS
1.
1.1
1.2
1.3
Commissioning the Filter
1.4
2.
2.1
2.2
2.3
3.
3.1
3.2
Fitting the Filter Element
4.
4.1
4.2
E_AFLD882_21 / 19.06.13
Industriegebiet, D-66280 Sulzbach/Saar
Customer:
Order-no.:
HYDAC-Kom-no.:
baerbel.schoen@hydac.com
Hydac China
4502849761
1788674
Advertisement
Table of Contents
Related Manuals for Hydac 1788674
Summary of Contents for Hydac 1788674
- Page 1 Filter type: AFLD G/HC 882 CA4 10 W 1.0 /-Z-SFREE-150-03807923 Material-no.: 01309580 The warranty offered pursuant to our Terms of Sale and Delivery is applicable only in the event that original HYDAC components are used and work is carried out solely by properly trained and qualified personnel. ONTENTS...
- Page 2 HYDAC FILTERTECHNIK GmbH Industriegebiet, D-66280 Sulzbach/Saar Bearbeitung: Bärbel Schön / Abt.: FFVI / Tel.: 06897/509-784, Fax.: 06897/509-300, E-Mail: baerbel.schoen@hydac.com IMENSION DRAWING E_AFLD882_21 / 19.06.13...
- Page 3 HYDAC FILTERTECHNIK GmbH Industriegebiet, D-66280 Sulzbach/Saar Bearbeitung: Bärbel Schön / Abt.: FFVI / Tel.: 06897/509-784, Fax.: 06897/509-300, E-Mail: baerbel.schoen@hydac.com RELIMINARY EMARKS Instructions for Use of Filter This pressure vessel must only be commissioned in conjunction with a machine or system.
- Page 4 2.2 Maintenance Measures Spare parts are to conform to the technical requirements specified by the manufacturer. This is always ensured when using original HYDAC spare parts. Keep tools, working area and equipment clean. After dismantling the filter clean all components, check for damage or wear, and replace, if necessary.
- Page 5 HYDAC FILTERTECHNIK GmbH Industriegebiet, D-66280 Sulzbach/Saar Bearbeitung: Bärbel Schön / Abt.: FFVI / Tel.: 06897/509-784, Fax.: 06897/509-300, E-Mail: baerbel.schoen@hydac.com Changing the Filter Element 3.1 Removing the Filter Element Open the ball valve (3.1) of the pressure compensation line (3) in order to enable pressure equalization between the filter housings.
- Page 6 HYDAC FILTERTECHNIK GmbH Industriegebiet, D-66280 Sulzbach/Saar Bearbeitung: Bärbel Schön / Abt.: FFVI / Tel.: 06897/509-784, Fax.: 06897/509-300, E-Mail: baerbel.schoen@hydac.com Spare Parts 4.1 Spare parts drawing AFLD G/HC 882 CA4 10 W 1.0 /-Z-SFREE-150-03807923 E_AFLD882_21 / 19.06.13...
- Page 7 EC Machinery Directive, sections 1.4.1 - 1.4.3. They will not bear the CE mark! Before using these components, ensure compliance with the specifications provided by HYDAC FILTERTECHNIK. The specifications also contain information on the relevant essential health and safety requirements (based on Machinery Directive 2006/42/EC).
