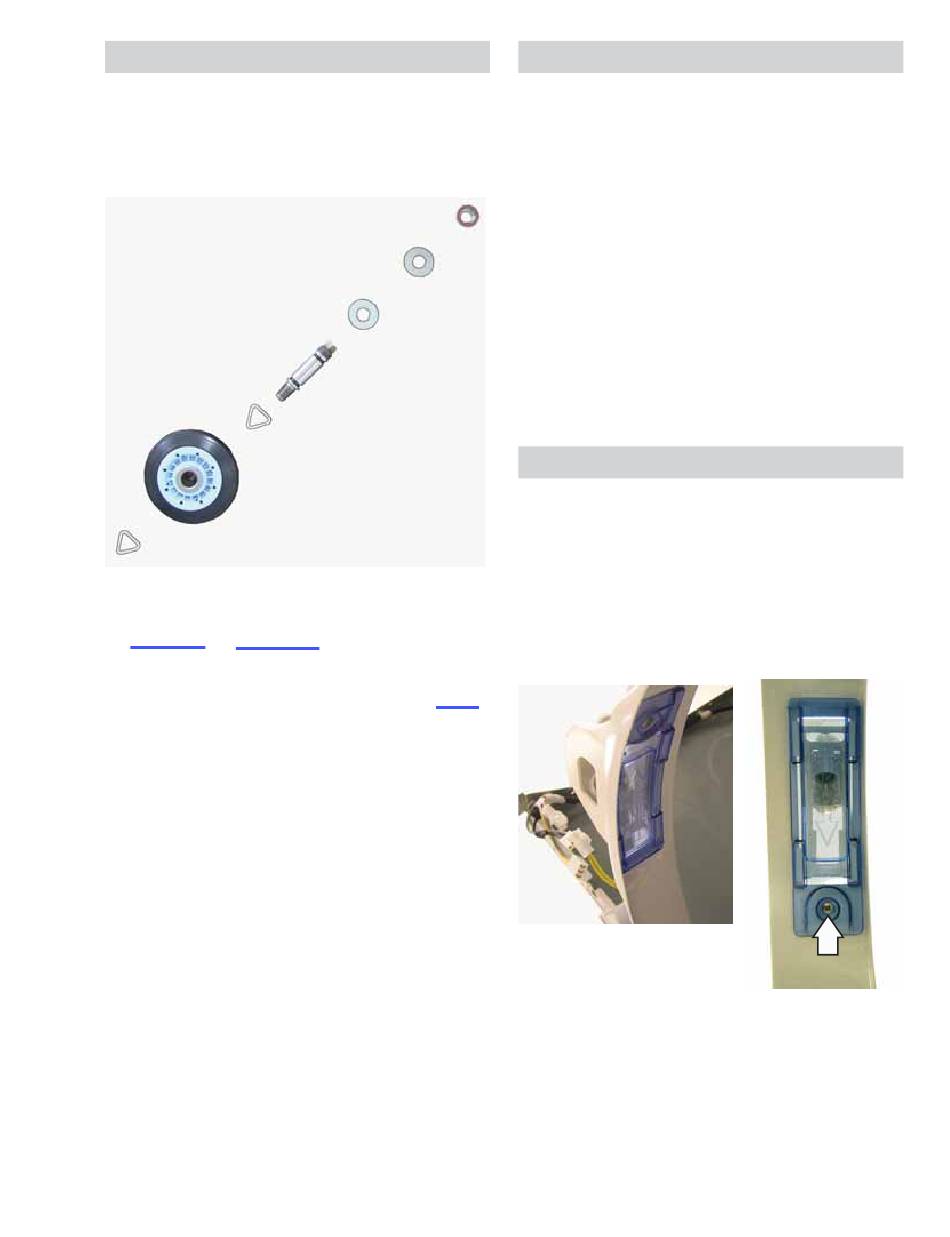

Drum Rollers

The 304 stainless steel drum rotates on 4 drum
rollers (2 on the front drum support and 2 on the
rear drum support).
Each drum roller comes as a complete assembly.
To remove the drum rollers:
1. Remove the top cover and the front panel. (See
and
Top Cover Front Panel
2. Remove the front drum support to access the
front drum rollers. Remove the drum (See
to access the rear drum rollers.
3. Each drum roller is held in place by a plastic
triangular clip. Remove the triangular clip with a
small fl at-bladed screwdriver and slide the drum
roller off the roller shaft.
4. To remove the drum roller shaft from the front
drum support, remove the 14-mm hex nut that
holds the shaft in place.
5. To remove the drum roller shaft from the rear
drum support:
a. Remove the 7 Phillips-head screws from
the back of the dryer that hold the rear
drum support in place.
b. Remove the 14-mm hex nut that holds
the drum roller shaft in place.
).
)
Drum
– 23 –

Door Switch

The door switch is fastened to the front panel by
two locking tabs and is common to most dryer
functions.
• When the dryer door is closed, the switch will
complete the motor circuit, allowing dryer
operation.
• Immediately upon detection of the door
opening, the motor shuts off and all heat is
disabled.
• Opening the dryer door closes the drum light
circuit, allowing the drum light to be energized.
• The door switch circuit can be checked in the
service test mode.

Drum Light

The drum light has a screw-in, 15-watt, 120-VAC
bulb located in the top of the front panel. It is
switched on the neutral side by the door switch.
• Replace only with a bulb of the same size and
type.
• Remove the Phillips-head screw in the bulb lens
to access the bulb.
