Signal (Beeper)

The beeper is mounted on the main control board,
but it is controlled by the display assembly.
• To check the 12 VDC circuit, measure between
pin 3 (white wire) on the white connector CN11
and pin 8 (pink wire) on the blue connector
CN14. (See
Main Control Board and Display
Assembly Pin Connectors
CN14
12 11 10 9 8 7
CN11
11 10 9 8 7
.)
6 5 4 3 2 1
6 5 4 3 2 1

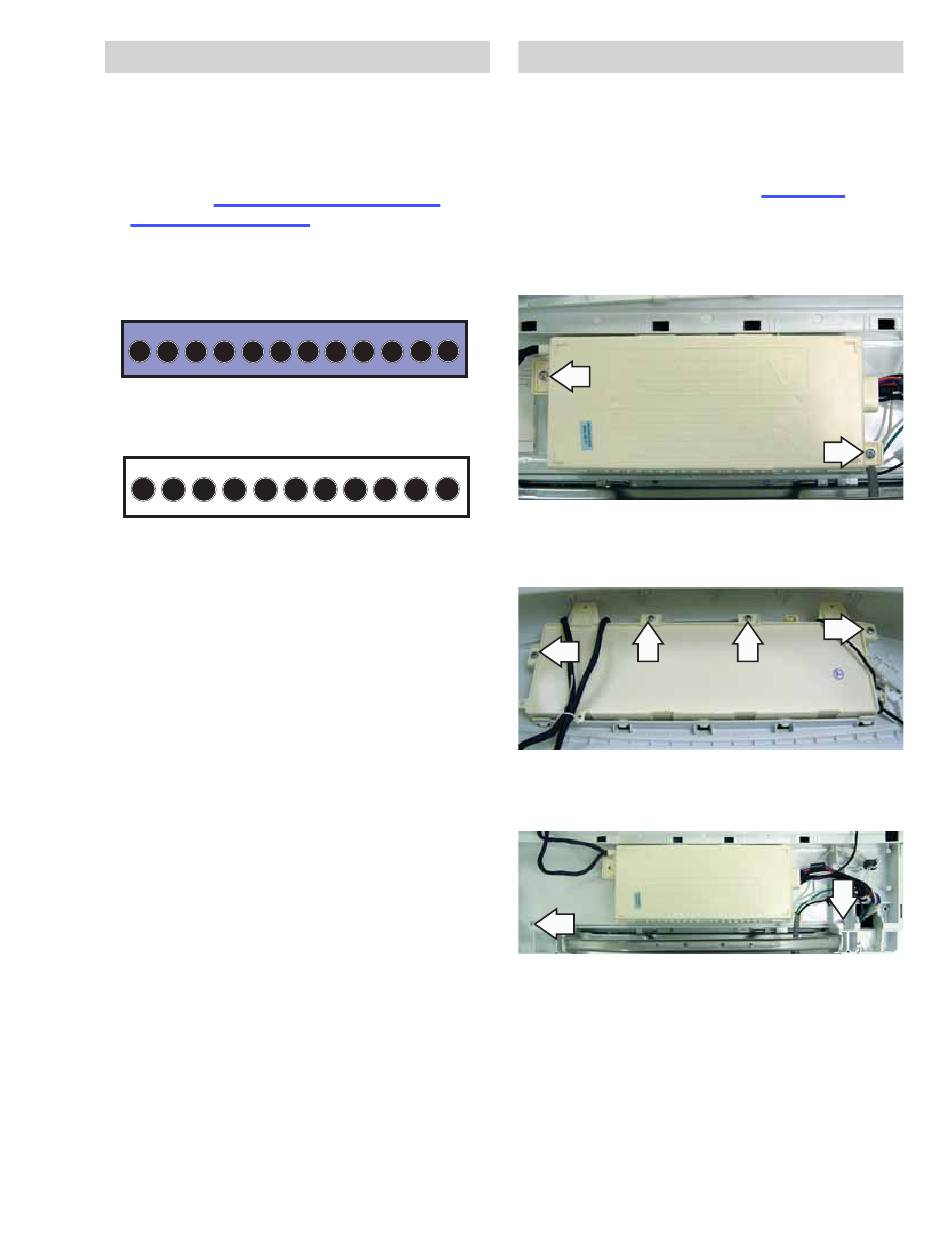

Top Cover

The top cover is held in place by 2 Phillips-head
screws, located beneath the backsplash, and two
front tabs.
To remove the top cover:
1. Remove the backsplash. (See
2. Remove the 2 Phillips-head screws that hold the
main control board box in place.
3. Remove the 4 Phillips-head screws that hold the
display assembly in place.
4. Remove the 2 Phillips-head screws that hold the
top cover in place.
