Fancom VLR.6

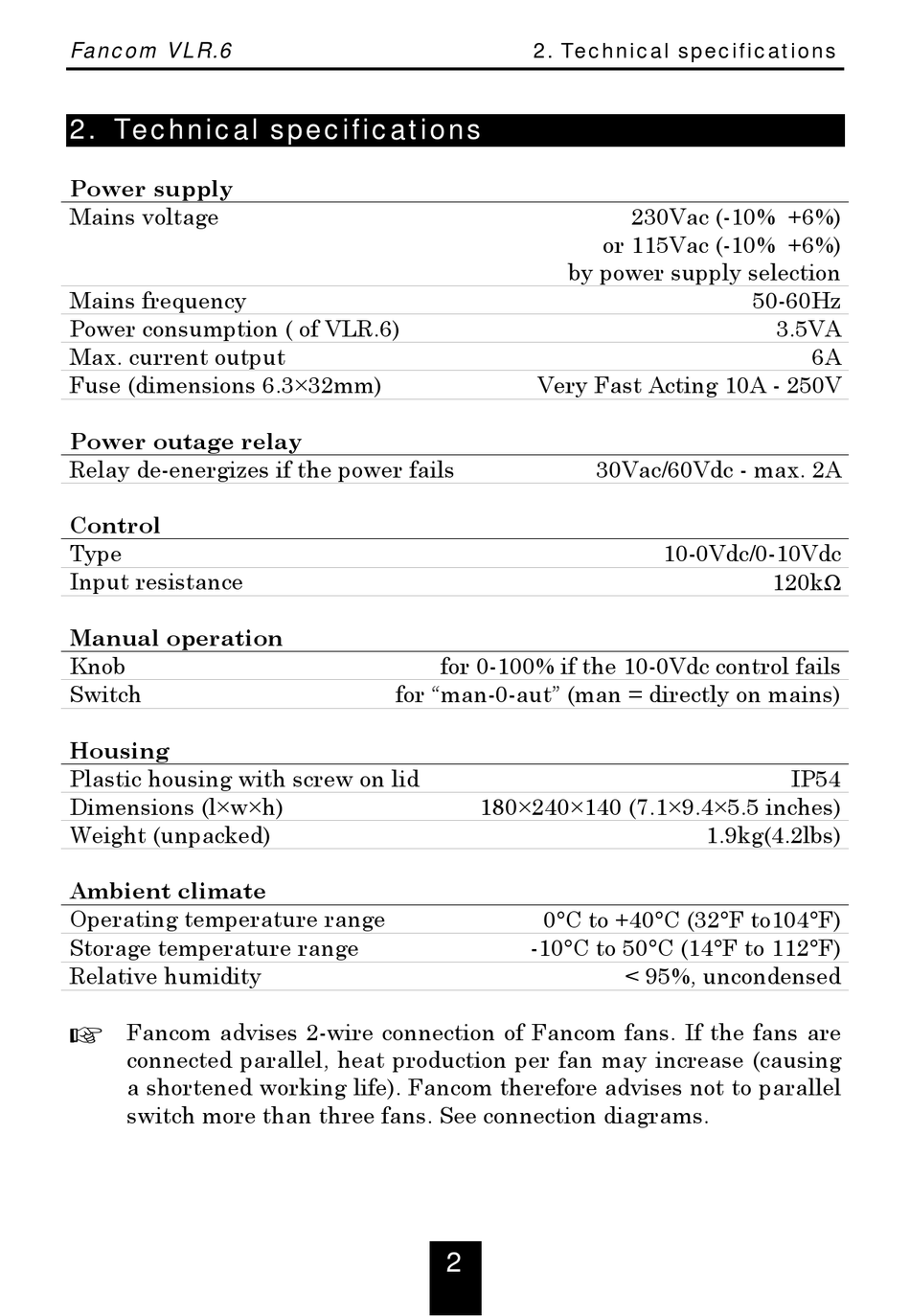

2. Technical specifications

Power supply
Mains voltage
Mains frequency
Power consumption ( of VLR.6)
Max. current output
Fuse (dimensions 6.3×32mm)
Power outage relay
Relay de-energizes if the power fails
Control
Type
Input resistance
Manual operation
Knob
Switch
Housing
Plastic housing with screw on lid
Dimensions (l×w×h)
Weight (unpacked)
Ambient climate
Operating temperature range
Storage temperature range
Relative humidity
! Fancom advises 2-wire connection of Fancom fans. If the fans are
connected parallel, heat production per fan may increase (causing
a shortened working life). Fancom therefore advises not to parallel
switch more than three fans. See connection diagrams.
2. Technical specifications
Very Fast Acting 10A - 250V
for 0-100% if the 10-0Vdc control fails
for "man-0-aut" (man = directly on mains)
180×240×140 (7.1×9.4×5.5 inches)
0°C to +40°C (32°F to104°F)
-10°C to 50°C (14°F to 112°F)
2
230Vac (-10% +6%)
or 115Vac (-10% +6%)
by power supply selection
30Vac/60Vdc - max. 2A
10-0Vdc/0-10Vdc
1.9kg(4.2lbs)
< 95%, uncondensed
50-60Hz
3.5VA
6A
120kΩ
IP54
