Fancom VLR.6

5.2 Jumper setting

The VLR.6 has four jumpers with which different settings can be made.
Table 3 shows the applications and corresponding jumper settings.
The factory setting is for fan(s) with DSR feedback.
Disconnect the power for the VLR.6 before setting the jumper(s).

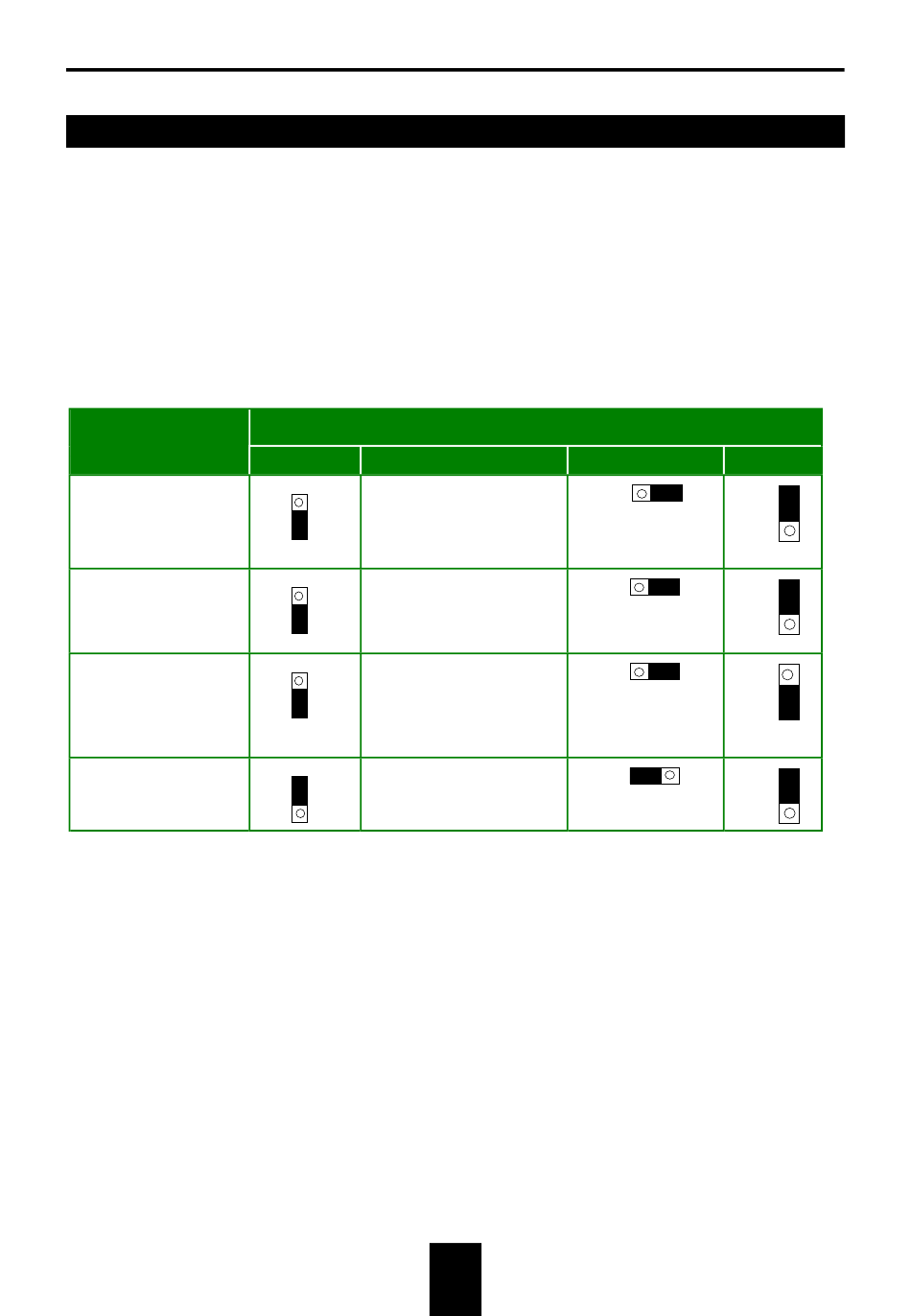

Table 3: Jumper table
Application
Fan without
DSR feedback
Fan with DSR
feedback*
Lighting
(incandescent /
controllable
fluorescent
Heating
(period control)
* Factory setting
** Change over the red (RD) and blue (BL) wire on the manual operation connector.
Jumper setting
J1 J2
Place with small fan
Ø35 and Ø 40.
(Jumper is in small bag
in lid)
Do not place
Do not place
Do not place
6
5. Points of attention
J3 J4
V
preferably
10-0Vdc
V
preferably
10-0Vdc
preferably
L
10-0Vdc
V
preferably**
0-10Vdc
